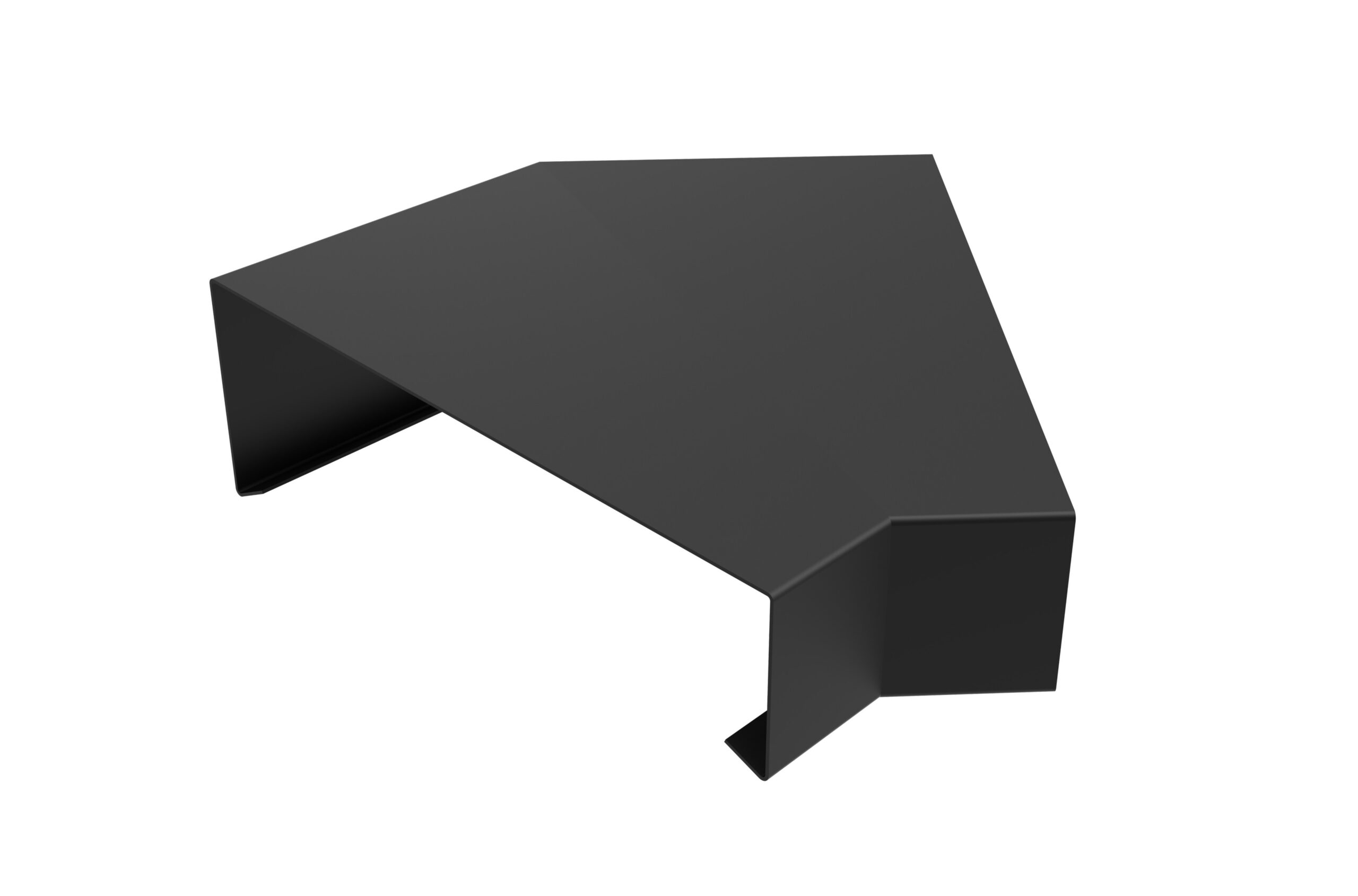

Aluminium Sloping Coping – 135° External Corner

£80.00£293.00

Product Code: ASC-EC135

Categories: ,

Please select a colour
Mill Finish
RAL1000
RAL1001
RAL1002
RAL1003
RAL1004
RAL1005
RAL1006
RAL1007
RAL1011
RAL1012
RAL1013
RAL1014
RAL1015
RAL1016
RAL1017
RAL1018
RAL1019
RAL1020
RAL1021
RAL1023
RAL1024
RAL1027
RAL1028
RAL1032
RAL1033
RAL1034
RAL2000
RAL2001
RAL2002
RAL2003
RAL2004
RAL2008
RAL2009
RAL2010
RAL2011
RAL2012
RAL3000
RAL3001
RAL3002
RAL3003
RAL3004
RAL3005
RAL3007
RAL3009
RAL3011
RAL3012
RAL3013
RAL3014
RAL3015
RAL3016
RAL3017
RAL3018
RAL3020
RAL3022
RAL3027
RAL3031
RAL4001
RAL4002
RAL4003
RAL4004
RAL4005
RAL4006
RAL4007
RAL4008
RAL4009
RAL4010
RAL5000
RAL5001
RAL5002
RAL5003
RAL5004
RAL5005
RAL5007
RAL5008
RAL5009
RAL5010
RAL5011
RAL5012
RAL5013
RAL5014
RAL5015
RAL5017
RAL5018
RAL5019
RAL5020
RAL5021
RAL5022
RAL5023
RAL5024
RAL6000
RAL6001
RAL6002
RAL6003
RAL6004
RAL6005
RAL6006
RAL6007
RAL6008
RAL6009
RAL6010
RAL6011
RAL6012
RAL6013
RAL6014
RAL6015
RAL6016
RAL6017
RAL6018
RAL6019
RAL6020
RAL6021
RAL6022
RAL6024
RAL6025
RAL6026
RAL6027
RAL6028
RAL6029
RAL6032
RAL6033
RAL6034
RAL7000
RAL7001
RAL7002
RAL7003
RAL7004
RAL7005
RAL7006
RAL7008
RAL7009
RAL7010
RAL7011
RAL7012
RAL7013
RAL7015
RAL7016
RAL7021
RAL7022
RAL7023
RAL7024
RAL7026
RAL7030
RAL7031
RAL7032
RAL7033
RAL7034
RAL7035
RAL7036
RAL7037
RAL7038
RAL7039
RAL7040
RAL7042
RAL7043
RAL7044
RAL7045
RAL7046
RAL7047
RAL8000
RAL8001
RAL8002
RAL8003
RAL8004
RAL8007
RAL8008
RAL8011
RAL8012
RAL8014
RAL8015
RAL8016
RAL8017
RAL8019
RAL8022
RAL8023
RAL8024
RAL8025
RAL8028
RAL9001
RAL9002
RAL9003
RAL9004
RAL9005
RAL9010
RAL9011
RAL9016
RAL9017
RAL9018
BS 4800 00 A 01
BS 4800 00 A 05
BS 4800 00 A 09
BS 4800 00 A 13
BS 4800 02 C 33
BS 4800 02 C 37
BS 4800 02 C 39
BS 4800 02 C 40
BS 4800 04 B 15
BS 4800 04 B 17
BS 4800 04 B 21
BS 4800 04 C 33
BS 4800 04 C 37
BS 4800 04 C 39
BS 4800 04 D 44
BS 4800 04 D 45
BS 4800 04 E 49
BS 4800 04 E 51
BS 4800 04 E 53
BS 4800 06 C 33
BS 4800 06 C 37
BS 4800 06 C 39
BS 4800 06 D 43
BS 4800 06 D 45
BS 4800 06 E 50
BS 4800 06 E 51
BS 4800 06 E 56
BS 4800 08 B 15
BS 4800 08 B 17
BS 4800 08 B 21
BS 4800 08 B 25
BS 4800 08 B 29
BS 4800 08 C 31
BS 4800 08 C 35
BS 4800 08 C 37
BS 4800 08 C 39
BS 4800 08 E 51
BS 4800 10 A 03
BS 4800 10 A 07
BS 4800 10 A 11
BS 4800 10 B 15
BS 4800 10 B 17
BS 4800 10 B 21
BS 4800 10 B 25
BS 4800 10 B 29
BS 4800 10 C 31
BS 4800 10 C 33
BS 4800 10 C 35
BS 4800 10 C 39
BS 4800 10 D 43
BS 4800 10 D 45
BS 4800 10 E 49
BS 4800 10 E 50
BS 4800 10 E 53
BS 4800 12 B 15
BS 4800 12 B 17
BS 4800 12 B 21
BS 4800 12 B 25
BS 4800 12 B 29
BS 4800 12 C 33
BS 4800 12 C 39
BS 4800 12 D 43
BS 4800 12 D 45
BS 4800 12 E 51
BS 4800 12 E 53
BS 4800 14 C 31
BS 4800 14 C 35
BS 4800 14 C 39
BS 4800 14 C 40
BS 4800 14 E 51
BS 4800 14 E 53
BS 4800 16 C 33
BS 4800 16 C 37
BS 4800 16 D 45
BS 4800 16 E 53
BS 4800 18 B 17
BS 4800 18 B 21
BS 4800 18 B 25
BS 4800 18 B 29
BS 4800 18 C 31
BS 4800 18 C 35
BS 4800 18 C 39
BS 4800 18 D 43
BS 4800 18 E 49
BS 4800 18 E 50
BS 4800 18 E 51
BS 4800 18 E 53
BS 4800 20 C 33
BS 4800 20 C 37
BS 4800 20 C 40
BS 4800 20 D 45
BS 4800 20 E 51
BS 4800 22 B 15
BS 4800 22 B 17
BS 4800 22 C 37
BS 4800 22 D 45
BS 4800 24 C 33
BS 4800 24 C 39
BS 381C 101 - SKY BLUE
BS 381C 103 - PEACOCK BLUE
BS 381C 104 - AZURE BLUE
BS 381C 105 - OXFORD BLUE
BS 381C 106 - ROYAL BLUE
BS 381C 107 - STRONG BLUE
BS 381C 108 - AIRCRAFT BLUE
BS 381C 109 - MIDDLE BLUE
BS 381C 110 - ROUNDEL BLUE
BS 381C 112 - ARCTIC BLUE
BS 381C 113 - DEEP SAXE BLUE
BS 381C 166 - FRENCH BLUE
BS 381C 172 - PALE ROUNDEL BLUE
BS 381C 175 - LIGHT FRENCH BLUE
BS 381C 210 - SKY
BS 381C 216 - EAU DE NIL
BS 381C 217 - SEA GREEN
BS 381C 218 - GRASS GREEN
BS 381C 220 - OLIVE GREEN
BS 381C 221 - BRILLIANT GREEN
BS 381C 223 - MIDDLE BRONZE GREEN
BS 381C 224 - DEEP BRONZE GREEN
BS 381C 225 - LIGHT BRUNSWICK GREEN
BS 381C 226 - MIDDLE BRUNSWICK GREEN
BS 381C 227 - DEEP BRUNSWICK GREEN
BS 381C 228 - EMERALD GREEN
BS 381C 241 - DARK OAK
BS 381C 262 - BOLD GREEN
BS 381C 267 - DEEP CHROME GREEN
BS 381C 280 - VERDIGRIS GREEN
BS 381C 283 - AIRCRAFT GREY GREEN
BS 381C 284 - SPRUCE GREEN
BS 381C 285 - NATO GREEN
BS 381C 298 - OLIVE DRAB
BS 381C 309 - CANARY YELLOW
BS 381C 310 - PRIMROSE
BS 381C 315 - GRAPEFRUIT
BS 381C 320 - LIGHT BROWN
BS 381C 337 - VERY DARK DRAB
BS 381C 352 - PALE CREAM
BS 381C 353 - DEEP CREAM
BS 381C 355 - LEMON
BS 381C 356 - GOLDEN YELLOW
BS 381C 358 - LIGHT BUFF
BS 381C 361 - LIGHT STONE
BS 381C 363 - BOLD YELLOW
BS 381C 365 - VELLUM
BS 381C 366 - LIGHT BEIGE
BS 381C 367 - MANILLA
BS 381C 369 - BISCUIT
BS 381C 380 - CAMOUFLAGE DESERT SAND
BS 381C 384 - LIGHT STRAW
BS 381C 388 - BEIGE
BS 381C 389 - CAMOUFLAGE BEIGE
BS 381C 411 - MIDDLE BROWN
BS 381C 412 - DARK BROWN
BS 381C 414 - GOLDEN BROWN
BS 381C 420 - DARK CAMOUFLAGE DESERT SAND
BS 381C 436 - DARK CAMOUFLAGE BROWN
BS 381C 445 - VENETIAN RED
BS 381C 447 - SALMON PINK
BS 381C 453 - SHELL PINK
BS 381C 454 - PALE ROUNDEL RED
BS 381C 499 - SERVICE BROWN
BS 381C 537 - SIGNAL RED
BS 381C 538 - CHERRY
BS 381C 539 - CURRANT RED
BS 381C 541 - MAROON
BS 381C 542 - RUBY
BS 381C 557 - LIGHT ORANGE
BS 381C 564 - BOLD RED
BS 381C 568 - APRICOT
BS 381C 592 - INTERNATIONAL ORANGE
BS 381C 593 - RAIL RED
BS 381C 626 - CAMOUFLAGE GREY
BS 381C 627 - LIGHT AIRCRAFT GREY
BS 381C 629 - DARK CAMOUFLAGE GREY
BS 381C 630 - FRENCH GREY
BS 381C 631 - LIGHT GREY
BS 381C 632 - DARK ADMIRALTY GREY
BS 381C 637 - MEDIUM SEA GREY
BS 381C 638 - DARK SEA GREY
BS 381C 642 - NIGHT
BS 381C 676 - LIGHT WEATHERWORK GREY
BS 381C 677 - DARK WEATHERWORK GREY
BS 381C 692 - SMOKE GREY
BS 381C 693 - AIRCRAFT GREY
BS 381C 694 - DOVE GREY
BS 381C 697 - LIGHT ADMIRALTY GREY
BS 381C 796 - DARK VIOLET
BS 381C 797 - LIGHT VIOLET
Product total
Options total
Grand total

Description

The Metal Profiles aluminium sloping coping system provides a modern weathertight solution to parapet walls & terraces. The coping is coated with external grade polyester powder paint that provides long term durability and carries a fire class rating of A2-s1,d0.

Each 135° External Corner is supplied with 1.5nr fixing brackets, which is used to secure to the top of the wall allowing the installation of the coping that is simply clicked in place.

Metal Profiles Sloping Coping System offers two downstand sizes as standard:

  1. Internal Leg of 75mm, External Leg of 100mm.
  2. Internal Leg of 75mm, External Leg of 125mm.

All Metal Profiles aluminium copings products are polyester powder coated in a wide variety of RAL/BS colours to meet your project’s needs. Alongside the multiple standard coping sizes we provide, we also offer bespoke coping solutions for any obscure details that are required, if you require any bespoke solutions or require any other information, please get in contact for a 1-on-1 with our estimating team.

CURRENT LEAD TIME 5-10 DAYS



Benefits & Features

  • Copings manufactured in 2/3mm aluminium with 4/5mm brackets.
  • Polyester powder coated with external grade paint for long lasting durability.
  • Wide variety of RAL/BS colours available.
  • Fire class rating A2-s1,d0
  • Cost efficient, easy to install system.
  • Suitable for Industrial, Domestic & Commercial applications.
  • Designed & Fabricated in the UK.
  • Aluminium is 100% recyclable.
  • Bespoke solutions available.

Installation Notes

  • Typically fixed to 18mm external grade plywood,
  • Brackets to have an EDPM Seal,
  • A Push-Click fitting system with non-penetrating fixings,
  • 3mm expansion gap at each joint.
  • Suitable for new builds or existing properties.
Thickness Wall Width Capping Width Brackets Included Weight “Kg”
2mm 100 – 125mm 185mm 1.5 1.42 – 1.56
2mm 126 – 150mm 210mm 1.5 1.56 – 1.71
2mm 151 – 175mm 235mm 1.5 1.71 – 1.85
2mm 176 – 200mm 260mm 1.5 1.85 – 2.00
2mm 201 – 225mm 285mm 1.5 2.00 – 2.14
2mm 226 – 250mm 310mm 1.5 2.14 – 2.29
2mm 251 – 275mm 335mm 1.5 2.29 – 2.43
2mm 276 – 300mm 360mm 1.5 2.43 – 2.58
2mm 301 – 325mm 385mm 1.5 2.58 – 2.72
2mm 326 – 350mm 410mm 1.5 2.72 – 2.87
2mm 351 – 375mm 435mm 1.5 2.87 – 3.01
2mm 376 – 400mm 460mm 1.5 3.01 – 3.16
2mm 401 – 425mm 485mm 1.5 3.16 – 3.30
2mm 426 – 450mm 510mm 1.5 3.30 – 3.45
2mm 451 – 475mm 535mm 1.5 3.45 – 3.59
2mm 476 – 500mm 560mm 1.5 3.59 – 3.74
2mm 501 – 525mm 585mm 1.5 3.74 – 3.88
2mm 526 – 550mm 610mm 1.5 3.88 – 4.03
2mm 551 – 575mm 635mm 1.5 4.03 – 4.17
2mm 576 – 600mm 660mm 1.5 4.17 – 4.32
2mm 601 – 625mm 685mm 1.5 4.32 – 4.46
2mm 626 – 650mm 710mm 1.5 4.46 – 4.61
2mm 651 – 675mm 735mm 1.5 4.61 – 4.75
2mm 676 – 700mm 760mm 1.5 4.75 – 4.90
2mm 701 – 725mm 785mm 1.5 4.90 – 5.04
2mm 726 – 750mm 810mm 1.5 5.04 – 5.19
2mm 751 – 775mm 835mm 1.5 5.19 – 5.33
2mm 776 – 800mm 860mm 1.5 5.33 – 5.48
2mm 801 – 825mm 885mm 1.5 5.48 – 5.62



Thickness Wall Width Capping Width Brackets Included Weight “Kg”
3mm 426 – 450mm 510mm 1.5 5.49 – 5.84
3mm 451 – 475mm 535mm 1.5 5.84 – 6.18
3mm 476 – 500mm 560mm 1.5 6.18-6.53
3mm 501 – 525mm 585mm 1.5 6.53 – 6.87
3mm 526 – 550mm 610mm 1.5 6.87 – 7.22
3mm 551 – 575mm 635mm 1.5 7.22 – 7.56
3mm 576 – 600mm 660mm 1.5 7.56 – 7.91
3mm 601 – 625mm 685mm 1.5 7.91 – 8.25
3mm 626 – 650mm 710mm 1.5 8.25 – 8.60
3mm 651 – 675mm 735mm 1.5 8.60 – 8.94
3mm 676 – 700mm 760mm 1.5 8.94 – 9.29
3mm 701 – 725mm 785mm 1.5 9.29 – 9.63
3mm 726 – 750mm 810mm 1.5 9.63 – 9.98
3mm 751 – 775mm 835mm 1.5 9.98 – 10.32
3mm 776 – 800mm 860mm 1.5 10.32 – 10.67
3mm 801 – 825mm 885mm 1.5 10.67 – 11.01
3mm 826 – 850mm 910mm 1.5 11.01 – 11.36
3mm 851 – 875mm 935mm 1.5 11.36 – 11.70
3mm 876 – 900mm 960mm 1.5 11.70 – 12.05
3mm 901 – 925mm 985mm 1.5 12.05 – 12.39
3mm 926 – 950mm 1010mm 1.5 12.39 – 12.74
3mm 951 – 975mm 1035mm 1.5 12.74 – 13.08
3mm 976 – 1000mm 1060mm 1.5 13.08 – 13.43

The above table provides insight into the coping width recommend application conditions, if you are unsure on your required coping width, simply measure your wall and apply to the matching ranges. The table also provides some indication on the amount of included brackets required for each 1m length and the other available options for different coping width/thickness.

The overall standard measurement of the coping will include an additional Internal 75mm down-stand & External 100-125mm down-stand with 10mm return either side of the Sloping coping system, this will be added onto the required coping width to achieve your overall coping girth.
