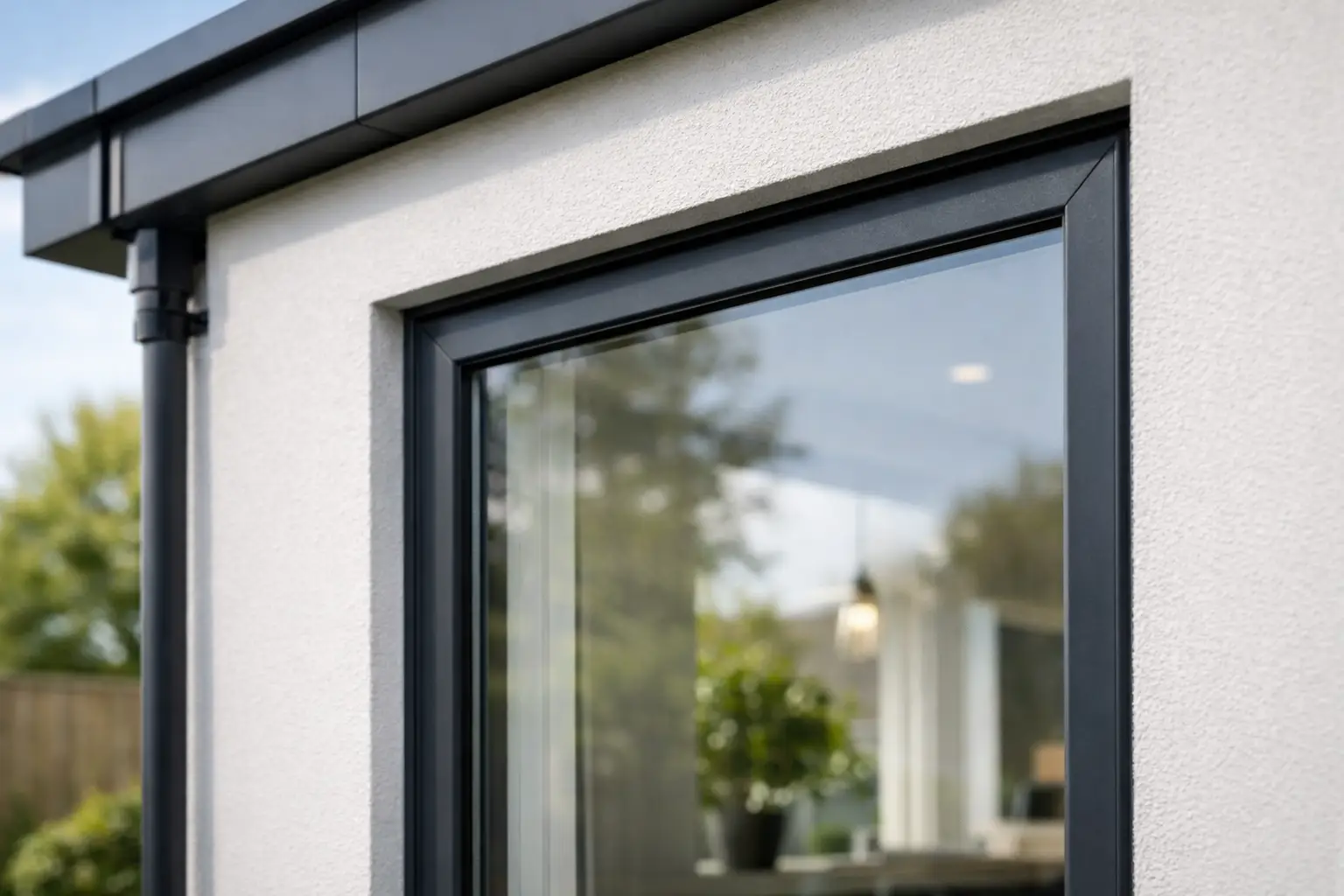

How to Detail Window Reveals for a Clean Finish

A window can be accurately fitted and still look unfinished if the surrounding recess is poorly handled. Knowing how to detail window reveals properly helps protect vulnerable edges around the opening, accommodate adjacent finishes and give the elevation a deliberate, consistent appearance.

For new-build, refurbishment and external upgrade work, reveal detailing needs to be considered before trims are ordered. The depth of the opening, window position, wall finish, insulation build-up and drainage route all affect the profile required. Aluminium reveal trims and folded surrounds can provide a neat, durable finish, but only when dimensions and interfaces are defined clearly.

What is a window reveal?

The window reveal is the return between the outer face of the wall and the window frame. It normally includes the two side reveals, the head above the window and the sill or cill below it. On a deep opening, these returns can be a prominent architectural feature. On a shallow opening, they may simply form the edge that finishes render, brickwork, cladding or another external wall system.

A reveal detail has two jobs. Visually, it creates straight, clean lines around the frame and conceals uneven substrate edges. Functionally, it must manage the junction between different materials without trapping water or placing rigid pressure on the window frame.

The correct approach depends on the wall construction and the window system. A rendered masonry opening, for example, will require different allowances from a rainscreen-clad façade or a retrofit window installed into an existing brick opening.

Start with the window and wall build-up

Do not measure the reveal from drawings alone where site conditions can be checked. Existing openings often vary, particularly on renovation work. Measure each opening at several points and record the narrowest and widest dimensions, as well as the reveal depth on both sides and at the head.

Establish where the face of the window frame will sit in relation to the external wall. This determines the return depth of the reveal trim. Also identify the finished face of the surrounding wall, not just the bare blockwork, sheathing or insulation. Render thickness, cladding rails, boards and adhesive layers can all change the final dimension.

Before specifying a folded aluminium profile, confirm:

• the visible face required around the frame;
• the return depth back to the wall finish;
• whether the profile terminates against a sill, cill, flashing or cladding panel;
• where movement and perimeter sealing will be accommodated; and
• whether one continuous surround or separate head and side sections will suit the opening.

These decisions avoid a common site problem: trims that fit the structural opening but sit proud of, or short of, the final façade finish.

Plan the reveal as a set of connected details

The head, jambs and sill should be considered together. Treating them as separate cosmetic pieces can create awkward exposed ends, poorly aligned corners or gaps that are difficult to seal neatly.

At the head, the detail should prevent water running behind the reveal finish. The head trim, flashing arrangement and wall finish need a clear order of installation. The profile should not be relied upon to resolve an incorrectly formed opening or a missing weathering detail behind the outer façade.

The side reveals need a controlled line between the window frame and the external finish. Keep the visible trim widths consistent where that is the design intention, but allow for variations in the opening rather than forcing a profile into a tight or distorted recess. A made-to-measure fold can be particularly useful where returns are deep, uneven or designed to align with other façade features.

At the bottom of the opening, water management is critical. The sill or cill should provide a route for water to leave the face of the building rather than directing it back towards the frame or into the reveal. Check how the side trims meet this component. A clean visual joint is not enough if it creates a pocket where debris and moisture can collect.

Choose the right profile shape and material finish

A simple angle may be suitable for finishing a shallow edge, while a deeper folded profile can line the full return of a reveal. The choice should follow the required function. A profile that only covers an exposed edge has a different purpose from one intended to form a visible, boxed return around the opening.

Aluminium is commonly selected for exterior trims because it gives crisp folded lines and suits colour-coordinated façade detailing. The finish should be selected to complement the window frame, cladding, roofline or other metalwork, rather than treated as an afterthought. A contrast can define the window opening; a close colour match can reduce visual clutter across the elevation.

For project-specific dimensions, a fabricator such as Metal Profiles Ltd can produce folded profiles to an agreed drawing or site measure. Provide clear dimensions for faces, returns, fold direction, lengths, corner treatment and finish requirement. A sketch with named faces is usually more useful than a list of numbers without orientation.

Avoid assuming that a nominal profile dimension is the finished visible size. Folded metal includes returns and bends, while surrounding finishes can cover part of a leg. Discuss the intended exposed face when requesting a quotation or fabrication drawing.

Allow for movement at the frame perimeter

Window frames, aluminium trims and wall finishes do not necessarily move in the same way. A reveal detail should therefore avoid locking the window frame rigidly to the surrounding metalwork.

Maintain the perimeter gap required by the window manufacturer and use a suitable backing and sealant arrangement where specified for the installation. The reveal trim can cover or frame this junction, but it should not bridge it so tightly that normal movement causes buckling, cracking or sealant failure.

The sealant must also be appropriate for the materials it contacts. Check compatibility with the window frame finish, coated metal, membranes and adjacent cladding or render system. A neat bead cannot compensate for contaminated surfaces, an oversized gap or poor joint preparation.

Where possible, keep sealant joints consistent in width and position. Irregular joints are immediately noticeable around windows, especially on dark frames or light-coloured façades.

Fix trims to a sound, planned substrate

The fixing method should be agreed around the wall build-up, not chosen once the trims arrive on site. The substrate may be masonry, timber, sheathing, a cladding support system or another backing arrangement. It needs to be stable, correctly positioned and capable of receiving the chosen fixing.

Position fixings so they are unobtrusive and do not distort the profile. Over-tightening can pull a flat face out of line, particularly on long, narrow sections. Use the profile design and fixing arrangement to retain straightness while allowing for normal material movement.

Think about the installation sequence as well. Some trims need to sit behind a cladding board, flashing or render edge, while others are fitted after the surrounding finish is complete. Installing in the wrong order often leads to visible cut edges, inaccessible fixings or unnecessary reliance on sealant.

Protect pre-finished surfaces during cutting, drilling and handling. Swarf, adhesive residue and site dust should be removed promptly. If site cuts are necessary, make them accurately and check that cut ends, corners and overlaps remain tidy when viewed from normal ground level.

Corners, joints and long lengths

Corners are where reveal detailing either looks precise or looks improvised. For a clean result, decide early whether corners will be mitred, lapped, butt-jointed or formed as purpose-made corner sections. The best option depends on the profile shape, material thickness, exposure and the desired appearance.

Mitred corners can create a sharp architectural line, but they require accurate cutting and stable support. Lapped joints can be more forgiving and may better direct water over the outer face, provided the lap follows the intended drainage path. Butt joints are simple but need controlled gaps and a considered finishing method.

On wide openings or long runs, avoid assuming one length will always be practical to handle or install. Split sections may be easier to position and less prone to damage, but each joint must be placed where it will look intentional and perform appropriately. Keep joints away from obvious focal points where possible.

Common mistakes when detailing window reveals

The most frequent problems are usually established before installation begins: measuring only one point, omitting the final wall finish from dimensions, selecting a profile with no allowance for sealing, or overlooking the sill-to-jamb junction.

Another mistake is using a trim purely to hide poor workmanship. Aluminium profiles can conceal a controlled edge, but they should not be used to mask loose substrate, badly aligned window frames or water-damaged construction. Correct the underlying issue first.

Finally, do not mix unrelated colours, face widths and joint styles across the same elevation without a clear design reason. Repetition is what gives window reveals their visual discipline.

FAQ: how to detail window reveals

Should reveal trims touch the window frame?

They may finish close to the frame, but the perimeter joint needs to accommodate the window installation and sealing arrangement. Do not force a rigid trim hard against the frame unless the detail specifically calls for it.

Can aluminium trims be used on existing windows?

Yes, provided the opening is surveyed carefully and the surrounding wall finish, frame condition and drainage details are suitable. Refurbishment work often benefits from made-to-measure sections because existing reveals are rarely uniform.

What should be measured for a bespoke reveal profile?

Measure the opening width and height, return depth, finished wall-face position, required visible trim face and the detail at the head and sill. Include photographs and a simple section sketch where possible.

Well-detailed window reveals are not simply decorative borders. When their dimensions, joints and interfaces are resolved before fabrication, they make the window opening look intentional and leave the surrounding façade easier to finish cleanly.
