Exterior Metalwork for Durable Building Details

A roof edge that is not properly finished, a poorly protected parapet, or an exposed junction around a window can quickly undermine an otherwise well-built exterior. Exterior metalwork provides the formed details that protect these vulnerable areas while giving a building a crisp, deliberate finish. For contractors, specifiers and homeowners, the right profile is usually as much about accurate fit and water management as it is about appearance.

What exterior metalwork does on a building

Exterior metalwork covers the fabricated components used at rooflines, wall heads, corners, openings and drainage points. It includes fascia boards, soffits, coping systems, flashings, gutters, roof trims, window surrounds, planter panels and formed angles. Each item has a particular role, but they work best when considered as part of the wider building envelope rather than as isolated finishing pieces.

At roof level, fascias and soffits close and define the eaves. Flashings and trims finish changes in level, junctions and exposed sheet edges. On parapet walls, coping provides a protective cap and creates a clean line when viewed from ground level. Rainwater components then collect and direct runoff away from the building in a controlled way.

The common thread is protection of edges and junctions. These are the locations where movement, weather exposure, uneven substrates and awkward interfaces are most likely to affect the final result. Well-specified metal profiles help create orderly transitions between roof, wall, cladding, glazing and drainage elements.

Aluminium, galvanised steel and the importance of suitability

Material selection should follow the component, location and intended finish. Aluminium is widely used for architectural exterior details because it is lightweight, corrosion-resistant and can be fabricated into clean, consistent profiles. It is particularly suited to items such as fascias, soffits, copings, gutters, roof trims, flashings and window surround details.

A powder-coated finish can support the required architectural colour scheme, including RAL colours where specified. Colour should be considered early, especially where roofline components need to sit alongside window frames, cladding or rainwater goods. Matching the visual intent is easier when the profile size, return dimensions and finish are all agreed before fabrication.

Galvanised steel angle has different uses. It can be appropriate where a straightforward formed steel angle is required, subject to the detail and exposure conditions. It should not be treated as interchangeable with aluminium simply because both are metal. Thickness, fold arrangement, fixing method, contact with adjacent materials and site environment all influence the right choice.

Metalwork also needs separation from incompatible materials where the project detail calls for it. This is a design and installation consideration, not an afterthought. Where there is uncertainty over material interfaces, the installer or project designer should confirm the intended build-up before ordering.

Exterior metalwork starts with the site measurement

Many exterior details fail visually because a standard section has been forced into a non-standard condition. Existing buildings can have irregular wall faces, varying roof projections, uneven brickwork and previous repair work that changes the dimensions from one end of an elevation to the other.

For made-to-measure exterior metalwork, measurements need to reflect the actual installation position. Record overall lengths, face dimensions, return sizes, fold directions and any changes along the run. Note obstructions such as downpipes, brackets, window reveals, service penetrations and changes in roof level. A simple sketch with clear dimensions is often more useful for quoting than a list of isolated measurements.

It is also worth identifying where pieces will join. Long runs may require multiple sections, and the joint positions should be practical to handle, align and finish on site. Corners, stop ends and changes of direction require the same attention. A profile that looks straightforward in elevation can become more involved once folds, returns and interfaces are considered.

For refurbishment work, do not assume the existing trim establishes the right dimensions for the replacement. Check what sits behind it, what must remain visible and whether the new profile needs to cover old fixing lines or damaged edges. The aim is a sound, consistent detail rather than simply reproducing an inadequate one.

Key applications around the building envelope

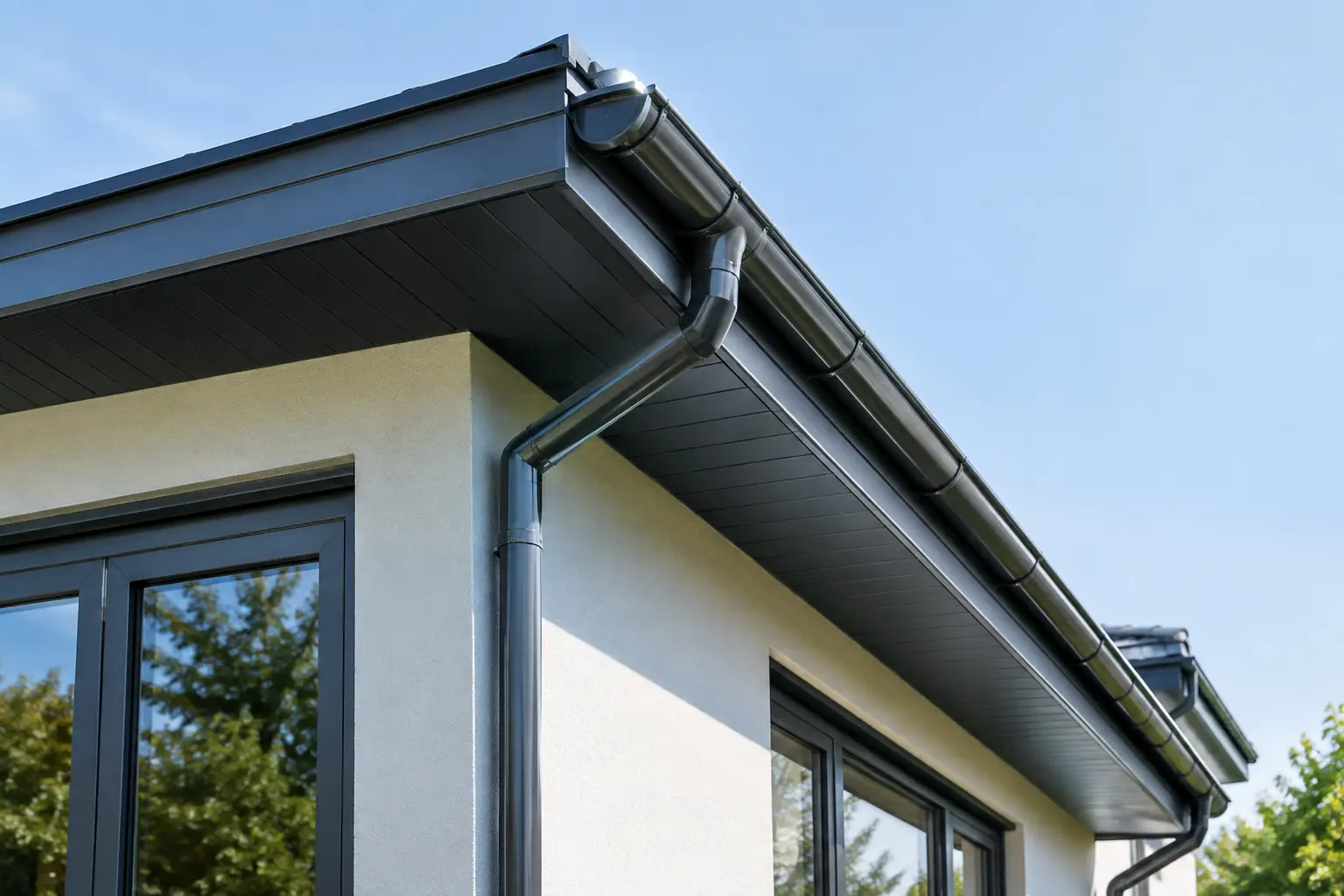

Roofline and eaves

Aluminium fascia boards give a defined finish to the roof edge and can be paired with soffits to close the underside of an eave. The profile should suit the supporting background, roof covering edge and gutter arrangement. Allowing for access to fixings, ventilation requirements where relevant to the roof design, and a straight visual line will help avoid difficulties at installation stage.

Roof trims and flashings are used where coverings terminate, meet a wall or change direction. Their shape must reflect the exact junction they are intended to finish. A generic angle may be sufficient for a simple edge, while a more developed folded profile may be needed where coverage, returns or a particular visual shadow line are required.

Parapets and wall heads

Parapet coping is highly visible and exposed, making consistent dimensions and neat corner treatment especially important. The coping needs to suit the wall head construction and the intended method of support and fixing. Measure the wall width at several points on older or rendered walls, as a single measurement can be misleading.

The visual effect also matters. A coping with considered projections and return details creates a strong horizontal line, whereas an undersized section can leave the wall head looking unfinished. The correct choice depends on the wall build-up and architectural intent, not just the nominal wall thickness.

Windows, doors and façade transitions

Window surrounds and reveal trims can sharpen the edge between openings and the surrounding façade. They are useful on new-build work and exterior upgrades where plain or damaged reveals need a more controlled finish. The profile must account for frame position, render or cladding depth, sealant zones and drainage paths.

This is an area where overly tight dimensions can create installation problems. A surrounding trim should not obstruct the operation of a window or door, and it must allow the intended junction detail to be completed correctly. Confirming the frame dimensions and façade thickness before manufacture is essential.

Rainwater and planters

Gutters and associated rainwater components should be selected as part of a complete roof drainage arrangement. Their position needs to relate to roof runoff, outlet locations and downpipe routes. Neat lines are desirable, but a gutter layout must first suit the building and the planned drainage detail.

Metal planters offer a durable architectural feature for entrances, terraces and landscaped areas. They should be specified with the surrounding surfaces, irrigation approach and planting requirements in mind. The planter finish may be coordinated with nearby trims or window surrounds, but practical considerations such as placement, access and liner requirements should be resolved within the wider landscape design.

Detailing and installation considerations

Good exterior metalwork is precise, but it still needs reasonable site tolerances. The substrate must be suitable for the intended fixing approach, and installers should avoid pulling a formed section out of shape to follow an uneven background. Packing, adjustment or preparation of the supporting surface may be needed to keep long lines straight.

Thermal movement is another practical consideration for long lengths of metal. The profile arrangement, joints and fixing method should allow the detail to perform as intended without distortion. Avoid over-fixing long sections unless the design specifically requires it, and follow the product or project detail for fixing positions.

Protect finished faces during handling and installation. Store fabricated pieces clear of standing water and site debris, lift rather than drag where possible, and remove swarf promptly. Small scratches, distorted corners and contaminated surfaces are far easier to prevent than to disguise after installation.

Where several trades meet, establish the sequence before work starts. Roofers, cladding installers, window fitters and render contractors can all affect the final metal detail. Clear responsibility for each interface reduces the risk of gaps, inaccessible fixings or trims being installed before adjacent work is ready.

Maintenance that protects the finish

Exterior aluminium components are low-maintenance, but they are not maintenance-free. A periodic visual check can identify blocked gutters, accumulated debris, loose fixings, impact damage or sealant deterioration at adjoining elements. Areas beneath trees, close to busy roads or exposed to airborne dirt may require more frequent cleaning.

For routine cleaning, use clean water and a soft cloth or sponge. Mild detergent may be suitable for general surface dirt, followed by a rinse with clean water. Avoid abrasive pads and aggressive cleaners that could mark or affect the finish. If a component has been damaged, assess whether local repair or replacement is the most appropriate route for the appearance and function of the detail.

Frequently asked questions

Can exterior metalwork be made to project dimensions?

Many profiles can be fabricated to specified sizes, fold arrangements and RAL colours, depending on the product and detail. Providing accurate dimensions, a sketch and the intended application supports a clearer quotation and a more suitable finished profile.

Are aluminium roofline products suitable for refurbishment?

They can be a practical option for refurbishment where the existing roof edge, soffit or wall junction needs a durable, clean finish. The condition of the background and the dimensions of the existing structure should be checked before selecting the profile.

Should trims be ordered before other exterior work is complete?

The design can be agreed early, but final dimensions are best confirmed once relevant backgrounds, frames and roof elements are known. This is particularly important where trims meet other trades or cover existing materials.

A well-considered metal detail does more than finish an edge. It gives installers a clear interface to work to, helps protect the parts of a building most exposed to weather, and leaves the exterior looking intentional long after the site has been cleared.
