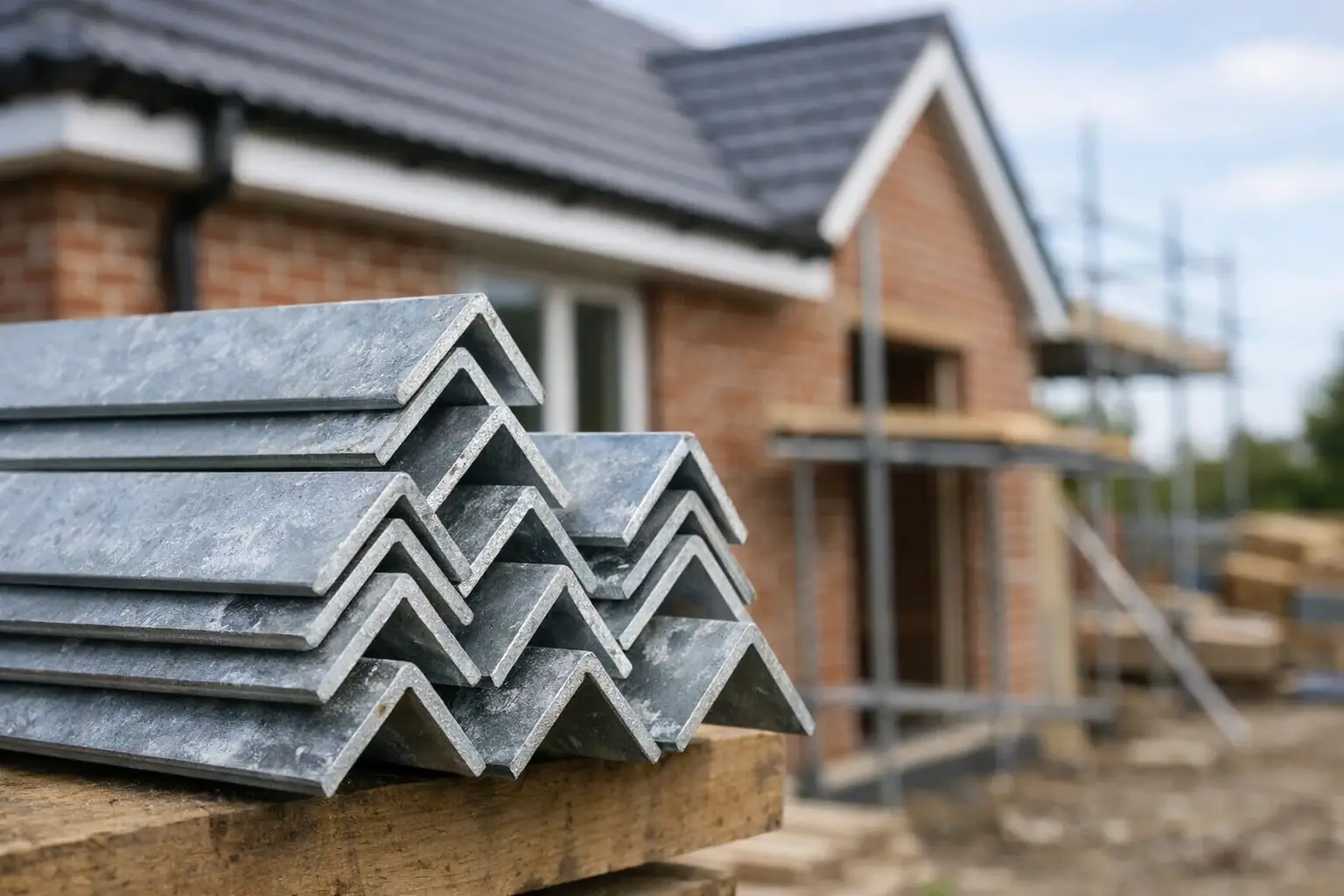

Galvanised Steel Angle Sizes for Building Work

A galvanised steel angle can look like a simple component on a drawing, yet the wrong size can complicate an otherwise straightforward detail. Galvanised steel angle sizes need to suit the fixing method, the material being supported, the available clearance and the finished appearance – not simply the nearest section available.

For builders, roofing contractors, fabricators and homeowners managing exterior work, specifying the angle clearly from the outset helps prevent delays, excessive cutting and untidy junctions. The key dimensions are easy to understand, but they need to be considered together.

Understanding galvanised steel angle sizes

Steel angle is an L-shaped section formed from two legs meeting at 90 degrees. It is commonly used for edge protection, support frames, brackets, trims, lintel-related details, general fabrication and local reinforcement. Galvanising adds a zinc coating that helps protect the steel from corrosion, making the material particularly useful where it may be exposed to weather or moisture.

An angle is normally described by its leg dimensions and thickness. For example, an equal angle may be stated as 40 mm x 40 mm x 3 mm. The first two figures identify the leg lengths, while the final figure is the steel thickness. An unequal angle might be described as 50 mm x 30 mm x 3 mm, with one longer leg and one shorter leg.

These dimensions affect much more than strength. They determine how much of the adjoining surface the angle covers, where fasteners can be positioned, how easily the section can be concealed and whether it looks proportionate alongside other building components.

Equal and unequal angles

Equal angle has legs of the same length. It is often selected where the angle is visible on both faces, where the detail is symmetrical, or where similar fixing room is required on either side of the corner. A 25 mm x 25 mm section, for instance, gives the same return on both faces.

Unequal angle has one longer leg. This can be useful where one face needs greater coverage or a larger fixing surface, while the return needs to stay discreet. It can also help when an angle needs to sit behind a trim, board or cladding edge without creating unnecessary projection on the exposed face.

Neither type is automatically the better choice. Equal angle is often simpler for neat corner details, while unequal angle can make a difficult junction more practical. The surrounding build-up should guide the decision.

The three dimensions that matter most

When requesting galvanised steel angle, provide the leg sizes, material thickness and required length. Leaving any of these open to interpretation can result in a section that does not suit the intended detail.

Leg length

Leg length is the measurement from the inside corner to the outer edge of each face. Larger legs provide more bearing area and more room for fixings, but they also increase the visual presence of the section. A wide angle may be appropriate for a fabricated support or substantial edge, whereas it can look heavy on a small domestic repair.

Consider what each leg must do. If one leg is fixed to masonry, timber or steelwork, check that there is enough flat material for the chosen fixing positions. If the other leg is intended to cover an exposed edge, allow for the full width of the edge, tolerances in the existing construction and any movement or sealing detail specified elsewhere in the project.

Thickness

Thickness affects the rigidity of the angle, its resistance to local damage and the way it can be worked on site. Thinner material may be suitable for light trim or non-structural fabrication, where a low-profile finish is required. Thicker angle is generally more appropriate where the component forms part of a support, receives repeated impact, or needs to retain its shape across a larger span.

A thicker section is not always the practical answer. It weighs more, may be harder to cut or drill, and can create an unwanted step at a finished junction. The material should be selected for the job rather than oversized as a precaution.

Length

Standard lengths can be efficient for repetitive work, but a long section may be awkward to handle, transport or manoeuvre around a constrained site. Shorter pieces reduce handling difficulty and may limit offcuts, although they can introduce more joints.

For visible work, plan joints carefully. Their position, direction and finishing can affect the appearance of a run as much as the angle size itself. Measure the installed condition rather than relying only on nominal drawing dimensions, especially on renovation projects where walls and existing edges may not be perfectly straight.

Choosing a size for the application

Start with the purpose of the angle. Is it covering an edge, forming a bracket, supporting another material, protecting a vulnerable corner or creating a clean transition between surfaces? A clear answer usually narrows the range quickly.

For a neat protective edge or modest trim detail, leg lengths should cover the exposed material without making the profile dominant. For fabrication and support work, adequate bearing and fixing space are usually the first considerations. Where the angle sits behind a fascia, coping, flashing or other external profile, its dimensions must work with the complete assembly rather than in isolation.

Thickness should also reflect how the angle will be fixed. A section that is drilled on site needs sufficient material around each hole, while the chosen screws, bolts or other fixings need to suit the substrate as well as the steel. Avoid placing holes too close to an edge, and allow for any washers, brackets or adjacent materials that may occupy the same space.

Where an angle is intended to carry, restrain or support a significant load, the section and fixing arrangement should be determined from the project design. Do not select a load-bearing angle by matching the size of an existing piece alone. The apparent size of a section does not reveal the loads, spans, support conditions or connection details it was designed around.

Allowing for galvanising and site work

Galvanising is valuable for exterior and damp-prone environments, but the finish still deserves careful treatment during cutting, drilling and installation. Rough handling can mark the coating, while freshly cut edges and drilled holes may require attention appropriate to the project specification.

Keep the detail clean. Avoid traps where debris and standing water can collect against the steel, particularly at low points, joints and concealed interfaces. If the angle meets other metals, check the wider material arrangement and specified separation methods. The correct approach depends on the metals involved, their exposure and the rest of the system.

Galvanised angle is often supplied with a practical industrial finish rather than a decorative architectural surface. Where the angle will remain visible, consider whether its appearance is suitable for the elevation and whether a separate finishing profile is needed. This is particularly relevant around entrances, parapets, roofline work and prominent external corners.

Measuring before ordering

Good measurement is less about taking one dimension and more about checking the whole junction. Measure the width to be covered, the flat area available for fixing, the depth of adjoining materials and any projection that could interfere with doors, windows, gutters or cladding.

On existing buildings, take measurements at several points along the run. A wall edge can vary enough to make a tightly sized angle difficult to fit. Allowing sensible coverage can produce a cleaner result than trying to make a narrow section follow an uneven substrate.

It also helps to record the required quantity, individual cut lengths and whether any sections need mitred ends, holes or other fabrication. Metal Profiles Ltd can support specification-led enquiries for galvanised steel angle and associated exterior metalwork, helping customers order to the dimensions their project requires.

Common selection mistakes

The most frequent mistake is choosing leg lengths based only on what is visible from the front. The hidden leg may not leave enough room for a fixing, a sealant line or the thickness of the adjoining material. Another is overlooking the finish build-up: insulation, boards, trims and flashings can all alter the available space.

Over-specifying thickness can also create avoidable work. A heavier section may need different tools, different fixings and more effort to align. Conversely, selecting a light angle for an exposed or hard-working position can lead to distortion and a poor finish.

Finally, do not assume every 90-degree corner is truly square. Check the site condition before ordering a long, pre-cut run. A simple template can be useful where an existing corner is irregular.

FAQs about galvanised steel angle sizes

What does 40 mm x 40 mm x 3 mm mean?

It describes an equal angle with two 40 mm legs and a steel thickness of 3 mm. The length of the individual piece is specified separately.

Should I use equal or unequal angle?

Use equal angle where both faces need the same coverage or fixing area. Choose unequal angle where one face needs a wider return, more support or more room for fasteners.

Can galvanised angle be cut and drilled on site?

It can be worked on site using suitable tools and safe working methods. Plan cuts and holes carefully, and treat the galvanised finish with care during installation.

What information should be included in an enquiry?

State the two leg dimensions, thickness, piece lengths, quantity, intended application and any cutting, drilling or finishing requirements. A sketch or clear photograph of the junction can also reduce uncertainty.

The best galvanised steel angle size is the one that fits the full construction detail: it gives adequate coverage, practical fixing space and a proportionate finish without creating problems for the next trade on site.
