Gutter Outlet Types for Effective Roof Drainage

A gutter can only move rainwater away from the roof if its outlet is correctly selected and positioned. Gutter outlet types determine where water leaves the channel, how the downpipe connects and how neatly the system works around corners, roof junctions and elevations. For a replacement roofline or a new-build drainage layout, the outlet should be considered alongside the gutter profile, fall, brackets and downpipe route rather than treated as a final fitting.

The right choice is not simply a matter of appearance. Outlet position affects the length of gutter run served, access for cleaning and the amount of cutting and jointing required on site. It also has a direct bearing on the quality of the finished detail, particularly where aluminium roofline and rainwater components are being colour matched to fascias, copings or trims.

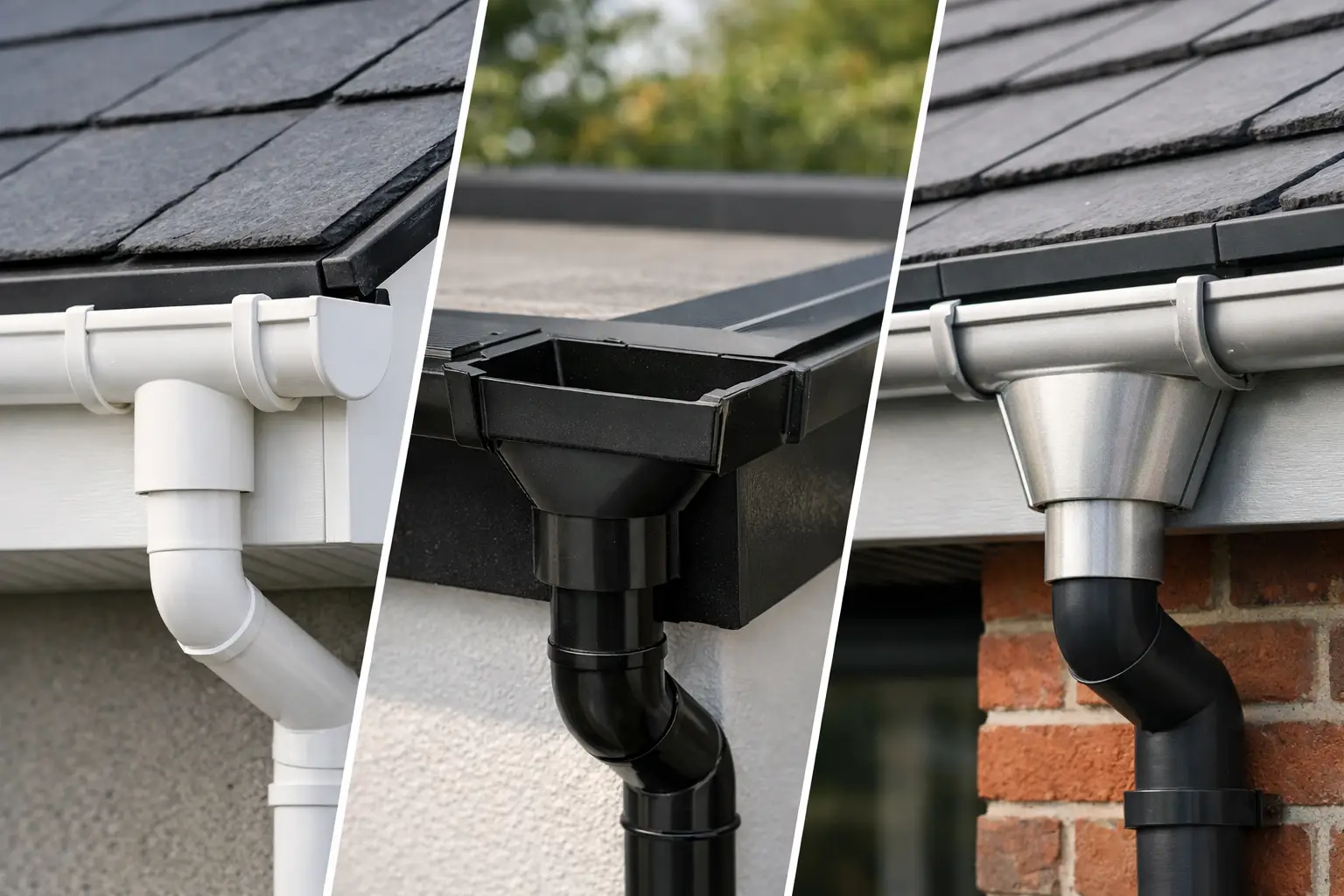

The main gutter outlet types

Most rainwater systems use one of three outlet arrangements: a stop-end outlet, a running outlet or a drop outlet. Names can vary between manufacturers, so it is worth checking the product drawing and connection method before ordering. The practical distinction is whether the outlet sits at the end of a gutter run, joins two lengths of gutter, or forms a direct discharge point below the channel.

Stop-end outlets

A stop-end outlet combines an outlet with a closed end. It is fitted where a gutter run terminates and the downpipe is located at that end. Water travels along the gutter to the outlet, then passes into the downpipe.

This is a straightforward arrangement for simple eaves lines, garages, porches and other short runs where a downpipe at the edge of the elevation is acceptable. It can reduce the number of separate fittings compared with using an outlet and a stop end independently.

Its limitation is layout flexibility. On a long gutter run, placing the only outlet at one end means the gutter has to carry water across its full length. Whether this is appropriate depends on the roof area, rainfall exposure, gutter size and the drainage design. Where the downpipe position is fixed by a doorway, boundary or architectural feature, an end outlet may not produce the best visual or practical result.

Running outlets

A running outlet is positioned within a continuous gutter line, allowing gutter lengths to connect into either side of the fitting. It is commonly used when the downpipe needs to sit away from the end of the roof edge.

This arrangement is useful on wider elevations, where a centrally located downpipe gives a more balanced appearance or where two gutter sections can be directed towards one discharge point. It can also help avoid awkward downpipe locations beside entrance doors, windows or paths.

The jointing detail needs careful attention. The outlet must suit the exact gutter profile, and the gutter ends must be cut square and prepared in accordance with the system requirements. On formed metal gutters, allowance for jointing, seals and thermal movement should be considered as part of the overall installation detail. A neat running outlet is often visually prominent, so inaccurate cuts or misaligned brackets are difficult to disguise.

Drop outlets

The term drop outlet generally describes the opening or fitting through which water drops from the gutter into the downpipe. Depending on the system, it may be an outlet fixed at the end or within the run, or it may refer specifically to a direct outlet beneath the gutter channel.

For fabricated gutterwork, the drop outlet can be tailored to suit the intended downpipe connection and the geometry of the project. This is particularly relevant where standard fittings do not align with a parapet detail, a concealed drainage route or a non-standard roof edge. The critical point is to confirm the gutter profile, outlet size, outlet position and downpipe interface together. An outlet that appears suitable from above may not provide a clean or practical connection below.

Choosing outlet positions before fabrication or ordering

A drainage layout should begin with the roof shape and the available downpipe routes. Valleys, changes in roof level, dormers and abutments can concentrate water into a short section of gutter. Equally, a neat elevation may be better served by placing outlets where downpipes align with vertical joints, corners or other façade lines.

For a straightforward pitched roof, an outlet may sit at each end of the gutter run, with the gutter falling from a high point towards both downpipes. Another approach is to fall the run towards a central outlet. Neither arrangement is automatically better. The suitable layout depends on the roof drainage design, the appearance required and the locations where downpipes can be fixed and discharged.

Before selecting fittings, establish these practical points:

• the gutter profile and internal dimensions;
• the intended direction of fall and outlet locations;
• whether the outlet is at an end or within a continuous run;
• the downpipe shape, size and fixing arrangement;
• obstructions such as openings, service routes, paths and roof details; and
• access for clearing leaves and checking joints.

These decisions are easier to make from an elevation drawing and roof plan than from a site measurement alone. For bespoke folded or fabricated components, provide clear dimensions, photographs where useful, and the relationship between the gutter, fascia or parapet edge and downpipe. This reduces the risk of an outlet being produced in the wrong orientation or at an unsuitable position.

Material and finish compatibility

Gutter outlets should be compatible with the gutter material and its intended jointing method. Mixing unrelated systems can create poor-fitting joints, irregular water paths and inconsistent appearance. Even where profiles look similar, the wall thickness, bead detail, outlet aperture and connection depth may differ.

Aluminium rainwater components are often selected for their clean appearance and resistance to weathering. They can also be specified in finishes that coordinate with surrounding roofline elements. However, the finish should not be the only selection criterion. Confirm that the outlet is designed for the chosen gutter profile and that its connection to the downpipe is properly detailed.

Where aluminium is used alongside other metals, consider the wider project detailing and avoid assumptions about material compatibility. Fixings, joint treatments and adjacent components should follow the requirements of the selected system and the project specification. It is sensible to maintain consistent materials and finishes across visible rainwater elements wherever possible, especially on commercial façades and refurbishment work.

Installation details that affect performance

An outlet cannot compensate for a poorly supported or incorrectly aligned gutter. Brackets should hold the gutter to the intended fall, with support arranged around outlets and joints as required by the system. A local low spot immediately before an outlet can hold debris and standing water, while a high spot can prevent water reaching the discharge point effectively.

The gutter should enter the outlet cleanly, without distorted edges or gaps at the joint. On site-cut components, remove swarf and sharp burrs before assembly. Metal debris left within the gutter can collect around the outlet and restrict flow after the first period of rainfall.

Downpipe alignment also matters. The pipe should be set so that it connects without forcing the outlet or placing strain on the gutter. Where offsets are needed to pass a projection or align with a wall, plan them early. A downpipe that has been improvised around a fascia return or window surround can look untidy and make future maintenance more difficult.

For concealed or parapet drainage, access is particularly important. The outlet and any leaf guard, hopper or internal connection should remain inspectable where the design allows. Concealed rainwater details can provide a crisp architectural finish, but they demand accurate fabrication and a clear route for maintenance.

Maintenance and common outlet issues

The outlet is one of the first places where leaves, moss and roof debris collect. Periodic cleaning is therefore more useful than waiting for visible overflow. Check that the outlet opening is clear, the gutter retains its fall and the downpipe is not blocked below the connection.

Overflow at an outlet does not always mean the outlet itself is undersized or defective. The cause may be a blocked downpipe, debris trapped at the opening, a sagging gutter, an incorrectly installed joint or water bypassing the gutter from the roof edge. Inspect the whole local detail before replacing components.

If an outlet is being changed during refurbishment, confirm the existing gutter profile rather than selecting by appearance alone. Measure the relevant dimensions and check the direction of the run. A left-hand or right-hand end arrangement can be easily confused when viewing an elevation from the ground.

Frequently asked questions

A well-planned outlet layout is a small part of the roof edge, but it has a lasting effect on drainage, maintenance access and the appearance of the elevation. Establish the gutter route and discharge points early, then specify fittings and fabricated details that suit the actual conditions on site.
