If you are ordering replacement roofline components, getting the soffit dimensions right at the start saves time, avoids wasted material and makes installation far more straightforward. When people ask how to measure soffits, they are usually trying to answer two separate questions – how much material is needed, and what board width or profile will actually fit the eaves detail already on the building.

That distinction matters. A soffit is not just a flat strip under the roof overhang. Its size is affected by the rafter projection, the fascia position, the wall line and any existing trims, vents or corner details. Measuring properly means looking at the whole eaves arrangement rather than taking one quick dimension and hoping for the best.

What you need before you measure soffits

A tape measure, notepad, pencil and a stable means of access are usually enough for straightforward domestic work. On larger elevations or commercial buildings, a laser measure can help with long runs, but you still need to check key points by hand where the wall line or roof edge is uneven.

It also helps to sketch each elevation before you begin. A basic front, rear and side outline with dimensions marked in is often clearer than a page of loose numbers. If the property has bay windows, stepped walls, projecting porches or boxed-in eaves, note these separately rather than trying to roll everything into one total.

If existing soffits are still in place, inspect them first. Some installations sit neatly from wall to fascia, while others include trims, vent strips or cover details that affect the finished width. Measuring only the visible face can lead to errors if the replacement system is designed differently from the one being removed.

How to measure soffits for width and length

The two core measurements are the soffit width and the total linear length required.

Measuring soffit width

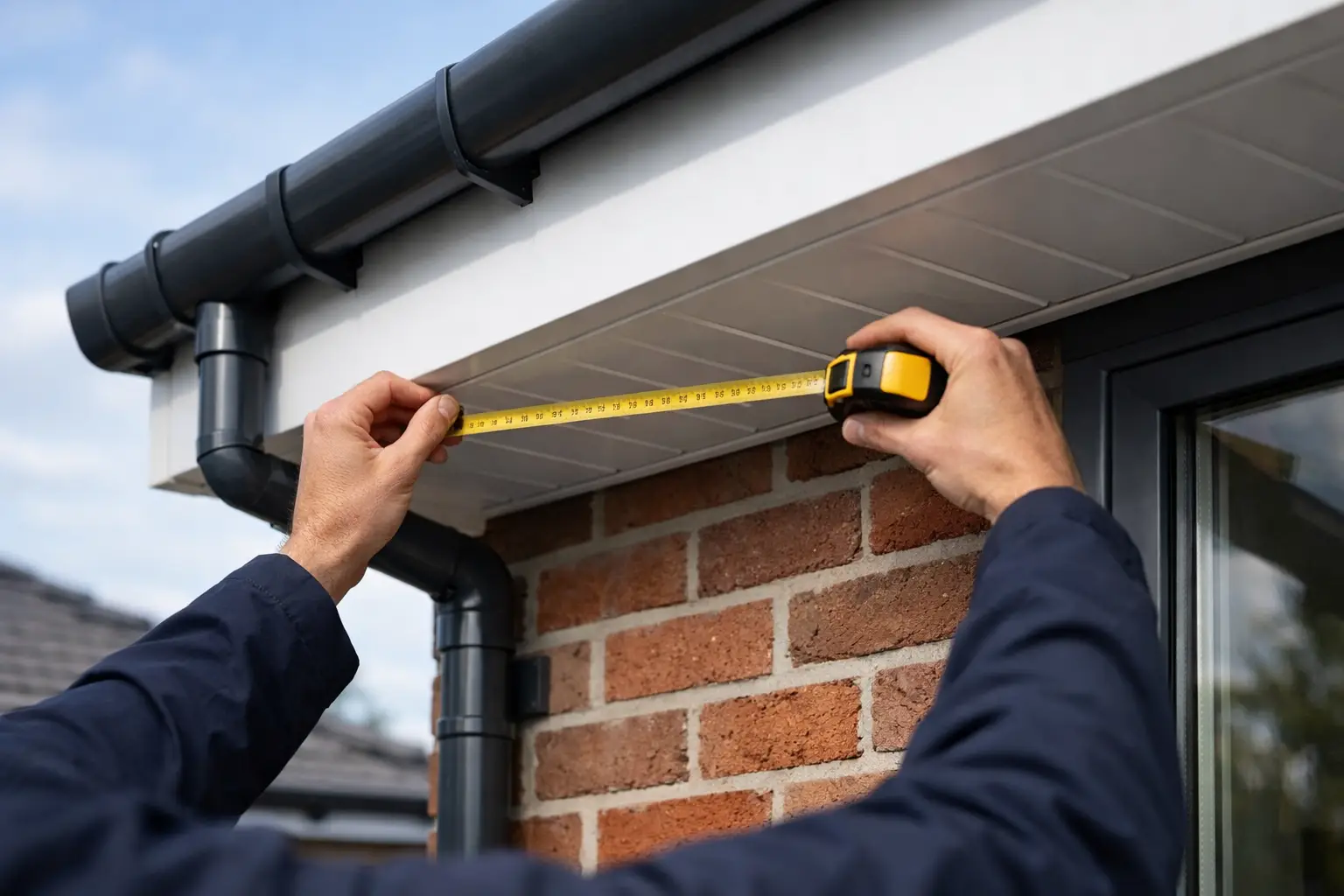

The width is the distance from the wall to the back of the fascia fixing line, measured horizontally across the underside of the eaves. In simple terms, it is the depth of the overhang that the soffit board needs to cover.

Take this measurement in several places on each elevation, not just once. Older properties can vary noticeably from one end to the other, especially where walls are not perfectly straight or previous roofline work has introduced small inconsistencies. If the width changes, record each section separately rather than averaging it out.

For example, if one side of the house measures 300mm at one end and 320mm at the other, treat that as a tapered or variable run that needs attention. If you order one fixed size on the assumption that the difference is minor, you may create unnecessary cutting on site or leave awkward gaps at the wall or fascia edge.

Measuring soffit length

The length is the total run along each elevation where soffit is needed. Measure each straight section individually, then add them together for the overall quantity.

Work methodically around the building. Measure front elevation, rear elevation, gables if relevant, porch returns and bay projections as their own sections. If there is a break in the roofline, such as a lower extension roof or a recessed entrance, measure that separately as well. Clear section-by-section figures are much more useful than one combined perimeter number when it comes to ordering and cutting.

Measure each elevation as it is, not as you expect it to be

One of the most common mistakes in how to measure soffits is assuming both sides of a property are identical. On drawings they may look symmetrical, but on site the details often differ. Extensions, render thickness, replacement fascias, conservatories and altered rooflines can all change the soffit requirement.

This is why it is worth measuring every run independently. Even if the left and right elevations appear to match, confirm both. The extra ten minutes spent checking can prevent a shortfall or incorrect board width later.

Corners, junctions and awkward areas

Corners need more than a simple length allowance. You should identify whether the soffit boards will meet at an external corner, run into an internal corner or terminate against another detail such as brickwork, cladding or a wall return.

For external corners, record the board width on both connecting elevations and note how the corner will be formed. A neat corner detail depends on the cut and the trim arrangement, so accurate widths on both sides are essential. For internal corners, pay attention to any variation in wall straightness. These areas often reveal whether a property has moved slightly over time.

Porches, dormers and bay windows usually need their own sketch. A bay, for instance, may include several short soffit sections at angles rather than one straight run. Measuring the projection and each face separately gives a much clearer basis for fabrication or material take-off.

Existing boards versus finished cover

If you are replacing existing soffits, decide whether you are measuring the old board itself or the area the new system must cover. Those are not always the same thing.

An old timber soffit may have swollen, warped or been installed with a trim that reduces the visible face. A new metal soffit arrangement may use different edge details and require a more precise finished cover width. If you simply copy the exposed face of the old board, you may miss the actual coverage needed between wall and fascia.

Where possible, measure from fixed building lines rather than relying only on the old component. The wall face and fascia position are generally more reliable reference points than a worn or distorted existing board.

Allowances for trims, joints and ventilation details

A soffit order is not just a board width and a perimeter length. The edge conditions matter. Depending on the project, you may also need starter trims, joint trims, corner pieces or ventilated sections.

This is where careful notes help. Mark where board joints will fall on long runs, where corners occur and whether the soffit design includes separate ventilation provision. Do not assume every section is identical. Some elevations may need plain soffit, while others incorporate different detailing because of roof construction or exposure.

It is also sensible to allow for cutting waste, particularly on properties with multiple short sections or angled bays. The amount depends on the layout. A long terrace elevation with few interruptions produces less waste than a house with porches, returns and shaped projections.

Common measuring mistakes to avoid

Most problems come from oversimplifying the job. Measuring only one width, combining all lengths into one figure, or ignoring corners can leave you with material that does not suit the building.

Another common issue is measuring from ground level and estimating the rest. That might be acceptable for a rough budget figure, but not for an actual order. Soffits sit in a part of the roofline where small dimensional differences matter.

It is also worth checking whether the fascia line is straight before finalising soffit sizes. If an older fascia has sagged or bowed, the soffit may appear to vary in width even when the wall line is consistent. In those cases, decide whether you are measuring the existing condition exactly or measuring for the corrected line that the replacement work will follow.

A simple method for accurate soffit measurement

For most domestic projects, the practical approach is straightforward. Sketch the building elevation by elevation. Measure each run length separately. Measure the soffit width in at least two or three places per run. Mark every corner, return, bay and break in the line. Then review your notes before ordering anything.

If the project includes made-to-measure components, clearer information generally leads to a smoother quoting process. Companies such as Metal Profiles Ltd work with dimension-led enquiries, so a clean drawing with section lengths, widths and corner notes is far more useful than a single handwritten total.

When it makes sense to recheck everything

Rechecking is worthwhile when the property is older, the roofline is uneven, or the project includes non-standard details. It is also sensible if soffits are being replaced alongside fascias, gutters or other roofline elements, because one change in build-up can affect another.

Measure once for the initial take-off, then go back and confirm the critical figures before placing the order. The key numbers to verify are the widths, the long run lengths and any awkward corner or bay details. Those are the places where errors tend to show up first.

A good soffit finish starts with good dimensions. Take the measurements from the building, not from assumption, and treat every change in line or width as something worth recording. That extra care usually shows in the fit of the finished roofline.
