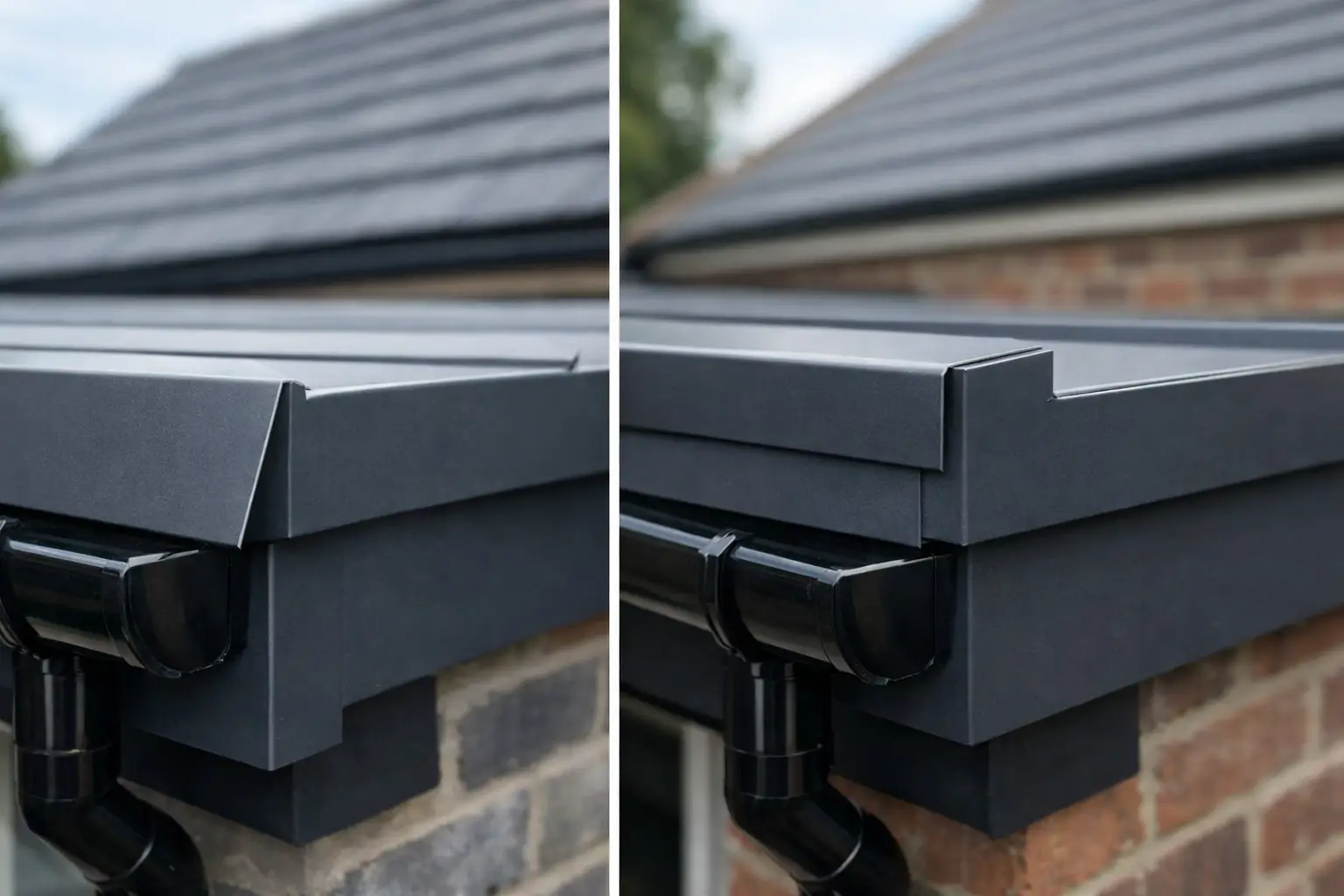

Pressed Versus Folded Flashings: Key Differences

A flashing can look like a simple strip of metal on a drawing, yet its fabrication and detailing can determine whether an edge reads as crisp and considered or becomes difficult to fit on site. When comparing pressed versus folded flashings, the terminology is not always used consistently. The practical question is not which label sounds better, but which fabrication method and profile detail suit the junction being protected.

For rooflines, parapets, wall abutments, window reveals and trim interfaces, the correct approach depends on profile geometry, material, fixing arrangements and the way adjoining components meet. A clear fabrication drawing is usually more valuable than relying on a generic description alone.

What do pressed and folded flashings mean?

A pressed flashing is generally formed from sheet metal using a press brake. The flat sheet is bent along accurately positioned lines to produce angles, channels, drips, upstands and more complex folded sections. In architectural metalwork, many profiles described as pressed flashings are made this way, particularly where a consistent angle and clean linear finish are required.

A folded flashing may refer to a simpler profile formed by folding the sheet along one or more bends. Some people use the term broadly for any bent sheet-metal flashing, while others use it to distinguish lighter or more straightforward folds from press-brake manufactured profiles. That variation in language is why drawings, dimensions and material details should be confirmed before manufacture.

The profile matters more than the label

Neither term automatically indicates a better weathering detail. A single-angle flashing, for example, may be entirely suitable where it provides sufficient cover, a secure fixing leg and a sensible route for water to shed away. At another junction, the same approach may leave an exposed edge or create a difficult interface with a membrane, cladding system or coping.

The design should define the visible face, return, upstand, drip, fold direction and any hems or safety edges needed. It should also show where laps occur and which component is intended to sit over the other. Those details affect manufacture, installation sequence and the finished appearance.

How fabrication affects the finished flashing

Press-brake forming is well suited to repeatable, dimension-led profiles. It allows fabricators to produce straightforward angles as well as sections with multiple bends, such as parapet trims, verge details, wall flashings and folded cover pieces. This is particularly useful where a project requires matching profiles across several elevations or where the flashing must align with fascia, soffit, coping or rainwater components.

A pressed profile can incorporate returns that improve stiffness and conceal cut edges. It may also be designed with a drip detail to encourage water to break clear of the face beneath. These features need proportioning to the specific application rather than adding by default. A return that looks neat on a drawing can be impractical if it prevents the flashing from seating correctly over the substrate or clashes with another component.

Simpler folded flashings can be appropriate where the junction is uncomplicated and access for fitting is good. They can provide an economical, tidy means of covering a transition between building elements. However, simple does not mean careless. The material still needs to be cut accurately, the bend locations must suit the required cover, and the fixing method must not compromise the intended weathering path.

For both types, long straight bends should be handled and stored carefully before fitting. Site damage, accidental creasing and distorted corners can be more noticeable on coated architectural metalwork than on concealed work. Protective handling and a planned installation sequence help maintain the intended finish.

Joint detailing determines weather performance

Fabrication method is only one part of the decision. The way a flashing begins, ends and joins to the next length often has a greater effect on the finished detail.

Lengths, laps and direction of flow

Where a flashing is supplied in more than one length, the overlap should be arranged so water sheds over the lower piece rather than towards an open joint. The required lap, allowance for movement and joint treatment should be decided for the particular system and exposure conditions. It should not be assumed from the face size alone.

A long continuous length can reduce the number of visible joints, but it may be harder to handle and position safely on site. Shorter sections are more manageable, though they introduce more laps and require careful alignment. On prominent parapets and roof edges, this is as much a visual consideration as a practical one.

Corners and changes in level

External corners, internal corners and stepped roof details need particular attention. A flashing that works perfectly along a straight run may need a purpose-made corner, a mitred arrangement or a separate cover piece at a change of direction. Trying to force a straight folded section around a corner can leave stress marks, poor alignment or an inconsistent reveal.

The same applies to changes in pitch or level. The flashing should follow the construction it is designed to cover while maintaining sufficient contact and cover at the junction. A clear section drawing allows the fabricator and installer to identify potential clashes before components arrive on site.

Fixings and movement

Fixing positions should be planned around the substrate, the flashing shape and the required appearance. Over-tightening fixings can distort a flat face or draw an edge out of line. Conversely, inadequate support can leave the metal susceptible to movement or vibration.

Metal components can move with temperature changes, particularly over longer runs. The detail should therefore avoid trapping a length so rigidly that normal movement creates visible stress at laps, corners or fixing points. The appropriate approach varies with the material, profile and installation build-up, so it should be resolved within the wider construction detail.

Material and finish should suit the location

Aluminium is widely selected for exterior architectural profiles because it is lightweight and offers a clean finished appearance. It is commonly used for roofline, coping, trim and flashing applications, but the material and finish must be suitable for the specific environment and adjacent building materials.

For example, contact between dissimilar metals, persistent moisture traps and unsuitable fixings can affect the long-term condition of a junction. Separating materials where necessary and keeping drainage paths clear are practical considerations at design and installation stage. Any sealants, membranes or coatings used alongside the flashing should also be checked for compatibility with the selected metal and finish.

Colour is another specification point rather than an afterthought. A RAL-matched flashing can help fascia boards, parapet copings, window surrounds and trims read as one coordinated envelope detail. On the other hand, a contrasting finish may be intentional where the flashing is being used as a defined architectural line. Either approach benefits from agreeing the visible faces, fold orientation and joint positions before fabrication.

Choosing the right approach for common details

At a straightforward wall or roof abutment, a simple folded angle may be sufficient if it provides the required cover and can be fitted without obstructing adjacent materials. Where the flashing needs a drip, a deeper return, a concealed fixing zone or a shaped transition to another profile, a pressed multi-fold section is often more appropriate.

Parapet and roof-edge work commonly demands closer coordination. The flashing may need to interface with a coping, membrane termination, gutter, fascia or soffit line. In these cases, the profile should be selected as part of the whole edge detail, not as an isolated strip of metal. This reduces the risk of poorly positioned joints and last-minute site alterations.

Around windows and doors, folded metal flashings and surrounds can create sharp reveals and protect exposed edges, provided the profile allows for the intended installation build-up. Depths, returns and fixing faces should be measured from the actual substrate and finished surfaces, not estimated from a photograph or nominal opening size.

Information to confirm before fabrication

A well-prepared enquiry helps avoid ambiguity between pressed versus folded flashings. Provide the material required, finish or colour, profile drawing, overall lengths, bend dimensions and quantity. It is also useful to state which faces will remain visible and whether the sections require corners, stop ends, notches, holes or other site-specific features.

Measurements should distinguish between the developed sheet size and the finished face dimensions. If the flashing is intended to cover another component, show the amount of cover required and the direction in which water is expected to shed. Where an existing detail is being replaced, photographs can help provide context, but they should support rather than replace measured information.

Metal Profiles Ltd can manufacture project-specific folded and pressed profiles where a standard trim does not suit the detail. For contractors and specifiers, confirming the drawing before manufacture is the most reliable way to ensure the finished section reflects the intended junction.

Frequently asked questions

The best flashing is the one that fits the building detail without compromise. Define the profile clearly, allow for joints and movement, and treat fabrication as part of the envelope design rather than a final site fix.
