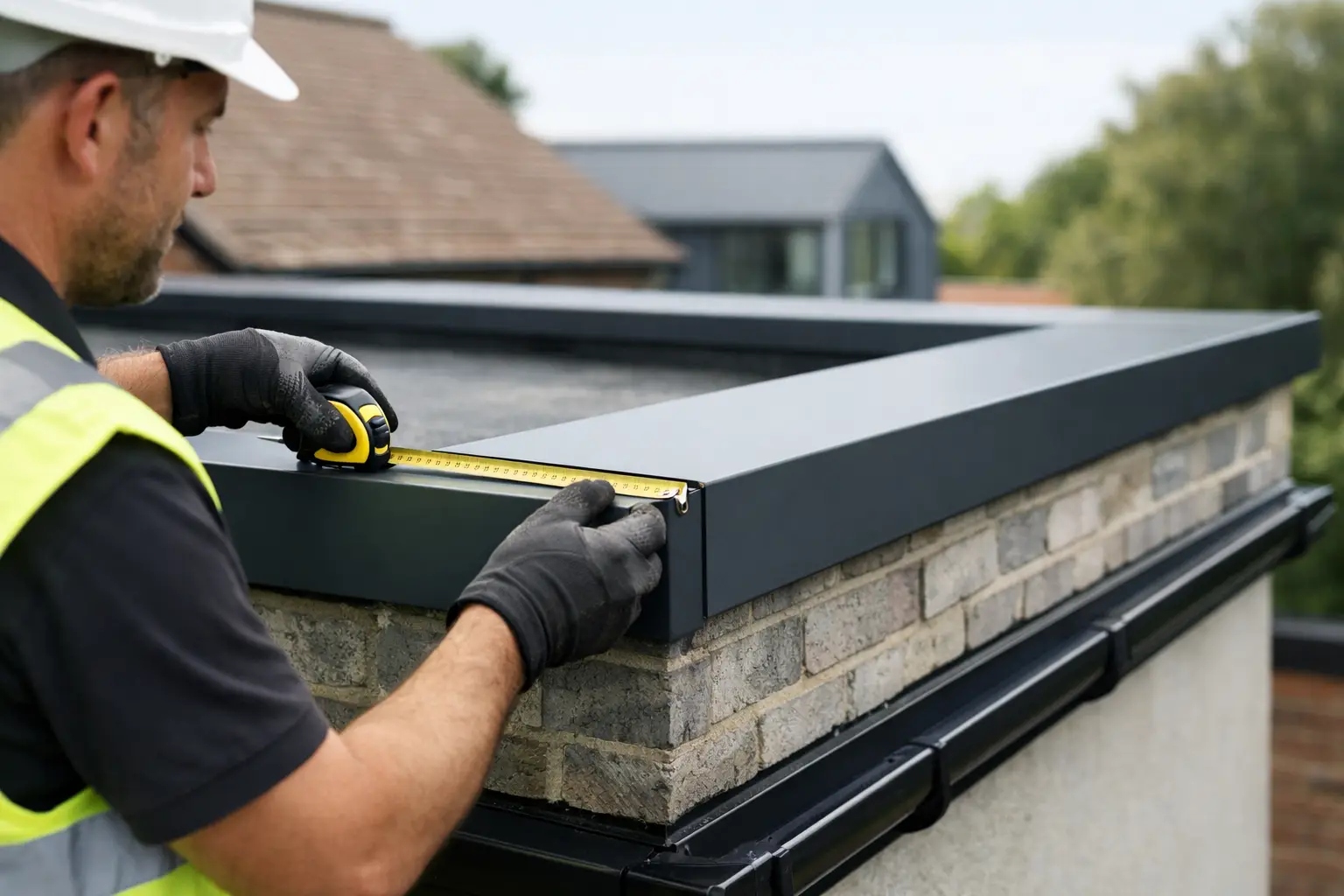

Blog How to Measure Parapet Copings Accurately

A parapet coping can look straightforward on a drawing, but a few millimetres missed at survey stage can leave an awkward fit at a corner, inadequate cover to a wall face or an unnecessary site alteration. Knowing how to measure parapet copings properly gives the fabricator the information needed to produce sections that suit the actual wall build-up, not an assumed dimension.

This guide is intended for builders, roofers, specifiers and homeowners planning replacement or new parapet metalwork. It covers the dimensions to record, the details that commonly cause problems and the questions to settle before requesting a quotation or placing an order.

Start with the finished wall, not the structural drawing

Measure the parapet after its final external construction is known. The dimension that matters is the completed width across the wall, including render, brick slips, cladding, cappings, insulation or any other finish that will sit beneath the coping. A coping made from a structural wall dimension alone may be too narrow once finishes are applied.

Take measurements at several points along each run. Masonry and rendered walls are rarely perfectly consistent, particularly on refurbishment work. Record the narrowest and widest readings, then identify whether the variation is local or continues along the full length. This helps determine whether a standard-width section is appropriate or whether the detail needs further consideration.

Where a wall is still being built, agree the intended finished thickness with the relevant contractor and clearly mark it as a proposed rather than site-verified measurement. This distinction avoids treating a design assumption as a final fabrication size.

The main parapet coping dimensions to record

A useful survey records more than the top width of the parapet. Each measurement affects either the appearance, the way the coping sits over the wall or the arrangement of the individual lengths.

Wall width

Measure horizontally from the finished outer face on one side of the parapet to the finished outer face on the other. Record it in millimetres. Take this reading at regular intervals, as well as close to returns, corners and changes in wall construction.

The overall developed width of the coping will be greater than this wall width because it includes the top cover and the downturned edges. The required projection and the depth of each leg should be agreed as part of the profile detail. Do not attempt to add bend allowances yourself unless the fabricator has specifically asked for them. Fabricators calculate allowances to suit the material, thickness, tooling and profile being produced.

Downstand or leg depth

The downstand is the visible vertical return that drops down the face of the parapet. Measure and specify the required depth on both sides. They may be equal, but they do not have to be. For example, a coping beside a roof finish, flashing or cladding detail may need a different return on the inner face from the external face.

Check that the proposed leg depth can sit clear of ledges, projecting bricks, render beads, trims and fixings. A profile that appears correct in section can clash with a feature that was not shown on the original drawings.

Coping projection

Projection is the amount the coping extends beyond the finished wall face before turning down. Establish this as a visible dimension on each side, rather than simply asking for an overall width. It makes the intended result easier to check on site and gives the fabricator a clearer brief.

The suitable projection depends on the wall finish, the profile shape and how the edge is intended to relate to adjacent components. Keep it consistent where the elevation is intended to have a uniform appearance, but review transitions individually where the wall build-up changes.

Lengths of straight runs

Measure each straight parapet run between fixed points. These may include external corners, internal corners, abutments, changes in height, movement joints, posts or intersections with other roofline elements. A single overall perimeter measurement is not enough for fabrication planning.

Mark every run on a simple elevation or plan sketch and give each one a reference, such as P1, P2 and P3. Record the direction of measurement and state whether dimensions are taken to an outside corner, inside corner or centre line. Clear referencing prevents a correct length being assigned to the wrong location.

Measure corners, returns and changes in level separately

Corners are where vague site notes become expensive. Identify whether every corner is internal or external, and photograph it with a tape measure where practical. A plan sketch should show the direction of each return and the face of the wall on which it occurs.

For an external corner, the coping needs to continue around the outside of the wall without leaving an exposed gap. For an internal corner, it must turn into the angle formed by the two wall faces. The measured wall widths on both meeting runs are needed, particularly if the parapet is not the same thickness on each side of the corner.

Do not assume all corners are square. Check them with an angle finder, a template or careful site measurement if the finish must follow an existing wall. Older buildings, curved elevations and altered roof areas often contain angles that differ from the drawing.

Where a parapet steps up or down, record the height difference, the length of each level and the exact position of the step. The coping arrangement may require separate sections, closures or carefully considered junctions. The same applies where a wall changes from brickwork to rendered blockwork or meets a cladding system, as the finished thickness can alter.

Establish falls and water direction before ordering

The coping must work with the intended roof and wall detailing. During the survey, establish which way the top surface is intended to fall and where water is expected to shed. Note nearby roof membranes, flashings, gutters, outlets, upstands and cladding interfaces.

Do not rely on a wall appearing level. Use appropriate site equipment to check the actual line and record significant high or low points. A long parapet may have deliberate changes in level, while an existing wall may simply vary due to construction tolerances. The difference matters when deciding how individual coping lengths should align.

The survey should also identify whether the coping will cover a joint between different materials or meet another metal profile. These junctions need adequate information from both details so that the parts can be coordinated rather than adjusted after delivery.

Plan joints and individual lengths

Long parapet runs are normally made up of multiple coping sections, so joint locations need to be considered before fabrication. Mark proposed joint positions on the drawing, taking account of corners, access restrictions, changes in level and the visual rhythm of the elevation.

The available handling space is relevant too. A long section may be difficult to move safely through a property, onto scaffolding or around roof obstructions. Measure access routes where this could affect the practical length of supplied pieces.

Allow for the joint method specified for the project. Adjacent sections may require an overlap, a cover joint, a separate joint piece or another detail selected for the installation. The fabricator needs to know the preferred arrangement before final lengths are confirmed. Never deduct or add an arbitrary joint allowance without agreement, as this depends on the profile and joint detail.

Build a clear measurement schedule

A concise schedule is usually more valuable than a collection of unlabelled photographs. For every coping run, record the reference, length, finished wall width, leg depths, projections, corner or return details, level changes, finish or colour requirement and any relevant adjacent component.

Include photographs taken square-on and from each end of the run. Add a tape measure in photographs of unusual features, such as a stepped wall, splayed corner, existing flashing or projecting course. If measurements are based on drawings rather than a final site survey, state this clearly.

For made-to-measure aluminium copings, a section sketch is particularly helpful. It should show the wall width and both visible legs, with all dimensions in millimetres. A fabricator can then check that the requested profile is understood before manufacturing begins.

Common measurement mistakes to avoid

The most frequent error is measuring the wall core and forgetting the final finish. Other problems include taking one width measurement on a variable wall, treating every corner as 90 degrees, overlooking a roof build-up at the inner leg and providing an overall run length without defining the ends.

Another avoidable issue is measuring from a feature that will later be removed. Existing timber cappings, damaged render and temporary trims can all create misleading dimensions. Confirm the surface that will remain when the new coping is installed.

A final check immediately before manufacture is worthwhile on projects with several trades working around the parapet. Roof coverings, insulation, cladding and render can all affect the finished line. Metal Profiles can fabricate project-specific profiles, but accurate site information remains the foundation of an accurate fit.

Frequently asked questions

  1. Should I measure coping width from the inside or outside of the parapet?

    Measure the complete finished width from one external wall face to the other, then separately state the required projection and downstand on each side. This gives a clearer profile brief than supplying only an overall coping width.

  2. Do I need to measure every length of a straight parapet?

    Measure each individual run between corners, returns or other fixed changes. Also take wall-width readings at intervals along long runs, especially on existing buildings where the wall may vary.

  3. Can copings be measured before render or cladding is fitted?

    They can be planned at that stage, but final dimensions should be based on the confirmed finished build-up. If this is not possible, provide the proposed thicknesses and identify them as design dimensions.

  4. What is the best format for sending measurements?

    A labelled plan or elevation, a section sketch, a dimension schedule and clear site photographs provide the most useful package. Keep every dimension in millimetres and make corner directions unambiguous.

Good coping measurement is less about one headline width and more about recording the full condition of the parapet. Take the time to survey finished faces, junctions and access before fabrication, and the resulting detail will be easier to coordinate and install.

A labelled coping survey should make the wall widths, leg depths, projections, corner directions and proposed joints easy for the project team to verify. The Metal Profiles Ltd manufacturer profile on NBS Source offers an additional reference for published product and specification information. Before sending the completed measurement schedule and section sketches, check the Metal Profiles Ltd Google Business Profile for the current Chelmsford business details, directions and customer feedback.
