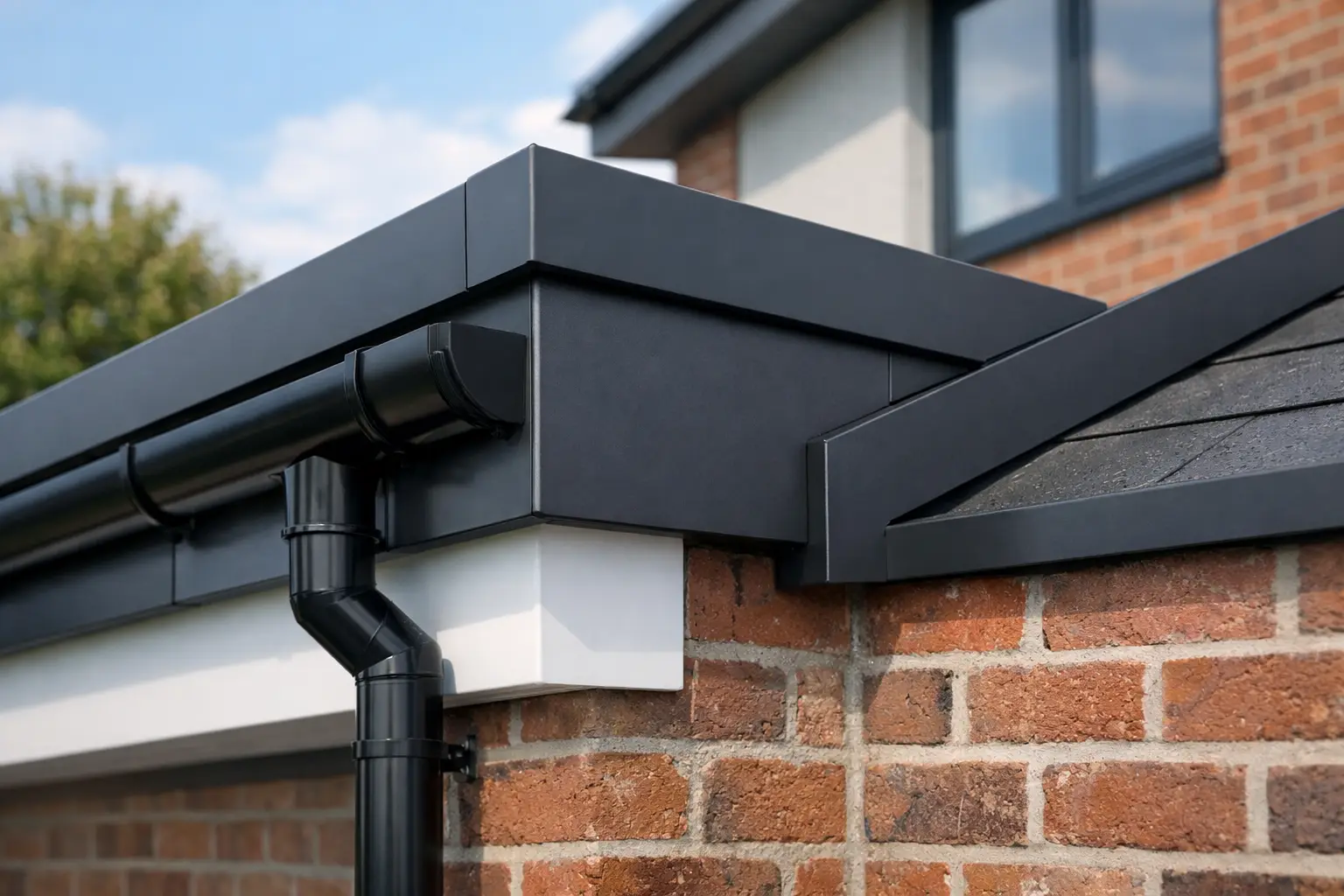

A badly detailed junction rarely stays a small problem for long. Gaps at parapets, uneven roof edges, awkward abutments and poorly covered transitions can all leave a building looking unfinished and more exposed than it should be. That is where aluminium flashings made to measure earn their place – not as a cosmetic extra, but as a practical way to protect vulnerable points while keeping the external finish neat and consistent.

For contractors and specifiers, the appeal is straightforward. A flashing that is formed to the required dimensions, angles and lengths is easier to integrate into the build-up and less likely to need site alteration. For homeowners, it usually means a tidier result, better colour coordination and fewer visible compromises around rooflines or wall junctions. The detail still needs proper design and installation, but the starting point is better when the profile has been fabricated for the job rather than forced to fit.

Where made-to-measure flashings are typically used

Aluminium flashings are used anywhere the building envelope changes direction, meets another material or needs a protective cover trim. Common examples include parapet walls, roof edges, dormers, abutments, upstands, window and door heads, and transitions between cladding or roofing elements.

Some projects need a simple folded profile with a single drip and return. Others require more developed shapes to suit insulation depth, substrate build-up or the visual line of the façade. On refurbishment work, existing construction often dictates the shape. Nothing is truly standard when an older building has settled, been altered or carries dimensions that do not match current off-the-shelf profiles.

That is why made-to-measure fabrication matters. Instead of adapting the building to the flashing, the flashing is produced to suit the building detail.

Why aluminium flashings made to measure are often the better choice

The biggest advantage is fit. When dimensions are taken correctly, the finished profile aligns more cleanly with the substrate, roof covering or façade element it is designed to protect. This can reduce the amount of packing, trimming or visual adjustment needed on site.

There is also a design benefit. Aluminium is well suited to crisp folded forms, which helps when a project calls for a sharp architectural edge rather than a bulky cover piece. That can be particularly useful on modern residential work, commercial façades and parapet detailing where the metalwork is clearly visible.

Colour choice is another practical reason clients specify made-to-measure aluminium components. Where flashings need to blend with fascias, copings, soffits, gutters, trims or window surrounds, a coordinated finish can make the elevation look considered rather than pieced together. In some schemes the flashing is meant to disappear into the wider roofline. In others it is used as a deliberate contrast detail.

None of that removes the need for good specification. Aluminium is a strong and durable material for external use, but the right profile still depends on the application, the exposure of the site and the adjoining materials.

What to define before ordering aluminium flashings made to measure

Most problems with custom flashings start before fabrication, not after it. If the initial information is vague, even a well-made product can arrive unsuitable for the junction.

Dimensions need to cover more than overall girth. The fabricator will typically need each face size, the bend sequence, any drip details, returns, fixing allowances and the required lengths. If the profile has to fit over another construction element, build-up depth matters. If appearance is important, visible face sizes should be checked carefully rather than estimated from drawings alone.

Finish is equally important. The selected colour should relate to the rest of the external package, especially on projects combining fascia boards, copings, roof trims and rainwater goods. It is worth confirming early whether the aim is visual matching, tonal contrast or a neutral trim detail.

Quantity and handling also deserve thought. Very long lengths can reduce joints, but site access, storage and manual handling may influence the most practical section length. A profile that works perfectly on paper may be awkward to unload, move around scaffolding or position safely at height.

Getting the detailing right

A flashing has to do two jobs at once. It needs to protect the junction from weather exposure, and it needs to finish the edge cleanly. If either side is overlooked, the result is poor.

For example, a parapet flashing may need enough cover to protect the top of the wall while also projecting neatly beyond the face below. A roof edge trim may need a defined drip position so rainwater sheds clear of the substrate. An abutment detail may need folds that accommodate both the roofing finish and the wall condition without creating an awkward visual step.

This is where trade professionals usually benefit from working with a specialist manufacturer rather than trying to make do with a generic folded strip. A profile formed to the drawing or site requirement is more likely to respect both the weathering function and the final appearance.

That said, made to measure is not the same as infinitely forgiving. If the structure is out, the substrate uneven or the dimensions taken from an assumption rather than a physical check, the flashing may still require site adjustment. On refurbishment projects especially, measured dimensions should reflect the actual building, not the hoped-for one.

Material suitability and finish considerations

Aluminium is widely chosen for external flashings because it offers a good balance of durability, low maintenance and clean presentation. It is suitable for many roofline and façade details where a formed metal profile is needed without the upkeep associated with some traditional materials.

It also lends itself well to manufactured consistency. Folded aluminium profiles can be produced to repeatable sizes and angles, which is important when multiple elevations or junctions need a coordinated result.

Even so, suitability depends on context. The surrounding construction, exposure conditions and the role of the profile all matter. A simple cover flashing on a small domestic project may have a very different specification requirement from a prominent parapet detail on a commercial building. The right answer is rarely just the cheapest fold or the quickest available section. It is the profile that suits the detail properly.

Practical site considerations

The neatest fabrication can still be let down by poor preparation on site. Before flashings arrive, the receiving surfaces should be checked for level, alignment and readiness to accept the profile. There is little value in ordering an accurate made-to-measure section if it is being fixed onto an uneven or incomplete substrate.

It also helps to think through sequencing. Flashings often sit at the point where several trades meet – roofing, cladding, rendering, carpentry or rainwater installation. If one element changes late in the programme, the flashing detail may need revisiting. That is especially true where insulation thickness, trim lines or final façade finishes are still in flux.

Storage matters too. Finished metal profiles should be handled carefully and kept in suitable conditions before fixing. Scratched or bent flashings can undermine the visual finish of an otherwise well-executed elevation.

When standard profiles still make sense

Made-to-measure fabrication is valuable, but not every project needs a fully custom approach. On straightforward details with common dimensions, a standard profile may be entirely suitable and can simplify selection.

The decision usually comes down to the complexity of the junction, the importance of appearance and whether the detail can be covered properly by an existing section. If repeated use across multiple plots or phases is expected, a standard solution may be efficient. If the building has unusual dimensions, stepped geometry or a visible architectural edge that needs to be exact, custom fabrication is often the better route.

A reliable supplier should be able to support both situations – standard where standard works, and made to measure where the detail calls for it.

FAQs

When a detail is exposed to the weather and visible on the elevation, it makes sense to treat it as more than a filler piece. A flashing that fits properly, finishes the junction cleanly and reflects the real dimensions of the project will usually save compromise later.
