Round Gutter Downpipe: What UK Buyers Need to Know
A round gutter downpipe system may look straightforward from ground level, but it relies on several components working together. The gutter must collect water from the roof edge, the outlet must transfer that water into the pipe, and the downpipe must carry it towards a suitable drainage point without creating awkward joints or unsupported sections.
For homeowners, builders, roofers, architects and property managers, choosing a round gutter downpipe should therefore involve more than selecting a colour and ordering a few straight lengths. Gutter dimensions, outlet position, downpipe diameter, corners, joiners, brackets, bends, offsets, clips and the final discharge detail all affect the finished arrangement.
Metal Profiles Ltd supplies a 123mm × 51mm aluminium half round gutter in 3m lengths. Its aluminium round downpipe range is also supplied in 3m lengths, with confirmed 76mm and 100mm diameter options. Matching product ranges include gutter outlets, stopends, union joiners, fascia or rafter brackets, downpipe bends, adjustable offsets, clips, internal joiners, branches, access panels and shoes.
This guide explains how to plan a complete round gutter downpipe system for a UK property, how to avoid common ordering mistakes and what information to prepare before requesting an estimate.
Contents
- 11 smart planning tips
- Choosing the right gutter profile
- Selecting between 76mm and 100mm downpipes
- Matching outlets and fittings
- Measuring gutter and downpipe runs
- Brackets, clips, bends and offsets
- Colour and ordering considerations
- Maintenance guidance
- Frequently asked questions
11 Smart Planning Tips for a Round Gutter Downpipe
1. Treat the Gutter and Downpipe as One Complete System
The first step is to stop thinking of the gutter and downpipe as unrelated products. A round gutter downpipe arrangement begins at the roof edge and continues all the way to the lower drainage connection.
Water first enters the half round gutter. It then travels towards an outlet, passes into the circular downpipe and moves through any bends, offsets, straight lengths and lower fittings. If one component does not match the next, the complete route becomes harder to install and maintain.
Before buying individual parts, sketch the elevation and mark:
- The full gutter run
- Internal and external corners
- Stopend positions
- Outlet locations
- Downpipe landing points
- Upper offsets
- Straight pipe lengths
- Clip locations
- Lower drainage connections
This simple exercise helps buyers see the round gutter downpipe as a coordinated rainwater route rather than a collection of separate accessories.
The wider aluminium rainwater goods range is a useful starting point because it brings together half round guttering, round downpipes and compatible system parts. Metal Profiles Ltd supplies aluminium gutters and downpipes for residential, commercial and architectural projects across the UK.
2. Confirm the Half Round Gutter Profile
A phrase such as “round gutter” is not enough to identify a compatible product. The actual profile and dimensions must be confirmed.
Metal Profiles Ltd lists its aluminium half round gutter at 123mm × 51mm and supplies straight lengths in 3m sections. The category also includes matching stopends, union joiners, corners, round outlets and support brackets.
When planning a round gutter downpipe, record the exact gutter profile before ordering accessories. A stopend or corner made for another half round system may look similar but still have a different radius, depth, joint detail or fixing method.
The 3m aluminium half round gutter is the main horizontal component within the Metal Profiles Ltd system. Calculate how many full lengths fit the roof edge and where cut sections or union joints will be needed.
Avoid measuring only the front elevation. Extensions, porches, garages, bay sections and changes in roof direction may each require separate runs, corners and outlets.
Taking a complete set of measurements at the beginning can prevent missing components or incorrectly positioned joints later in the project.
3. Select the Correct Round Downpipe Diameter
Metal Profiles Ltd supplies aluminium round downpipe options in 76mm and 100mm diameters. Both are listed in 3m straight lengths, with plain and flush-joint options available.
The correct size for a round gutter downpipe should be selected around the gutter outlet, roof drainage design and compatible fittings. It should not be chosen only because one diameter looks neater on the building.
Once the diameter has been selected, keep it consistent through the relevant parts of the system. A 76mm pipe requires compatible 76mm bends, clips, joiners and outlets. A 100mm route requires corresponding 100mm fittings.
Do not assume that a familiar plastic downpipe size is interchangeable with an aluminium system. Measure existing components and identify their material if the project involves replacement work.
Buyers can compare the available 76mm and 100mm aluminium round downpipes before deciding which option suits the intended outlet and elevation.
Where roof size or drainage capacity is unclear, the dimensions should be checked by a competent designer, installer or roofing professional before materials are ordered.
4. Match the Gutter Outlet to the Downpipe
The outlet is one of the most important parts of a round gutter downpipe system because it creates the transition from the horizontal gutter to the vertical pipe.
Metal Profiles Ltd lists an aluminium half round gutter round outlet with options for a 76mm or 100mm round pipe. The outlet connects the 123mm × 51mm half round gutter system to the selected round downpipe size.
Review the aluminium half round gutter round outlet before finalising the pipe diameter, and confirm the live 76mm or 100mm option when ordering.
The outlet position also matters. Placing every outlet at the end of a long run may not suit the roof layout. Similarly, locating an outlet directly above a window, doorway or difficult wall detail may make the downpipe route unnecessarily complicated.
A good round gutter downpipe plan considers both water routing and the appearance of the building elevation.
Before confirming an outlet position, look down the wall and identify any windows, doors, external lights, vents, cables, gas pipes or architectural details that could obstruct the vertical route.
5. Measure Every Gutter Run and Allow for Joints
Straight gutter lengths rarely match every roof edge without cutting. Measure each run independently and note where corners, stopends, outlets and union joiners will sit.
The Metal Profiles Ltd half round gutter is supplied in 3m lengths. When two lengths meet, the system includes a matching aluminium half round gutter union joiner.
For a round gutter downpipe project, calculate:
- Total length for each elevation
- Number of complete 3m sections
- Required cut lengths
- Number of union joiners
- Internal corner quantities
- External corner quantities
- Number of stopends
- Number and size of outlets
Avoid placing a union where an outlet or corner component needs to sit. Mark each fitting on a simple drawing before materials arrive.
It can also help to number each gutter elevation. A plan marked “front”, “rear”, “left extension” and “garage” is easier to follow than one combined total for the whole building.
Measurements should be checked twice, particularly when powder-coated or made-to-order items are being purchased.
6. Choose the Correct Gutter Support Method
The gutter must be supported along the roof edge. Metal Profiles Ltd lists both fascia brackets and rafter brackets within the half round gutter category.
A fascia bracket may be relevant where there is a suitable fascia board and fixing substrate. A rafter bracket may be considered where the gutter is supported from the roof structure. The correct approach depends on the building detail and should be confirmed by the installer.
The aluminium half round gutter fascia bracket is designed for the matching half round profile. Its purpose is to support the gutter rather than connect gutter lengths.
Bracket quantity and spacing should reflect the corners, outlets, substrate and system instructions. The horizontal gutter must remain aligned, secure and directed towards its outlets.
The condition of the fascia or supporting structure should be checked before installation. New aluminium guttering should not be attached to a loose, rotten or unstable background.
Where replacement work is planned, removing the old gutter may reveal damaged fascia boards or unsuitable previous fixings. Allow time to assess and correct these issues before fitting the new round gutter downpipe system.

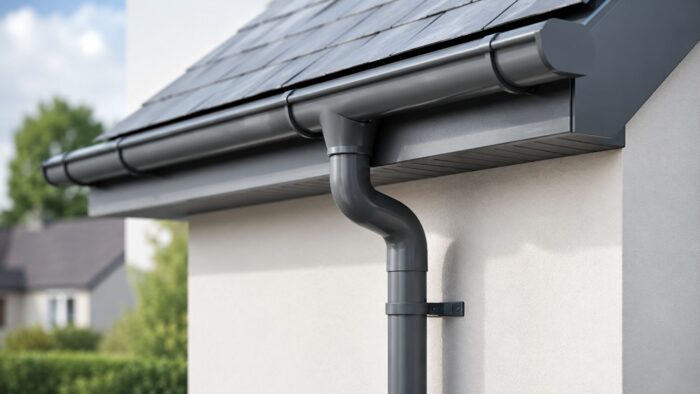

7. Plan the Upper Downpipe Offset
The gutter outlet often sits forward of the wall because of the fascia, soffit or roof projection. The downpipe may therefore need bends or an adjustable offset before it reaches the main vertical line.
The Metal Profiles Ltd round downpipe category includes bends and adjustable offsets in the confirmed pipe sizes. It also includes branches, access panels, clips, joiners and shoes for completing different routes.
When measuring the offset for a round gutter downpipe, note:
- Horizontal distance from outlet to wall
- Available vertical distance below the outlet
- Required bend arrangement
- Position of the first wall clip
- Distance from nearby windows or architectural details
- Final vertical pipe line
For unusual projections, provide accurate dimensions and a simple side-view drawing rather than choosing bends from appearance alone.
The offset should form a controlled transition rather than forcing the pipe into position. Incorrectly selected bends can move the vertical pipe too far to one side or create an awkward connection below the gutter.
It is also worth considering how the upper fittings will look from street level. A clean, correctly measured offset helps the finished system appear deliberate and coordinated.
8. Plan Straight Downpipe Lengths and Internal Joints
Metal Profiles Ltd supplies plain 3m aluminium round downpipe and a 3m aluminium round downpipe with flush joint, both in 76mm and 100mm options.
For a round gutter downpipe route longer than 3m, work out where the next length begins and how the joint will be formed. The total pipe requirement may be greater than the wall height because upper offsets and lower termination details use additional length.
Avoid placing a pipe joint directly behind a clip, branch or access panel. The joint should remain compatible with the selected pipe style and accessible enough for correct installation.
A practical measurement should include:
- Outlet-to-offset distance
- Offset length
- Main vertical drop
- Joint positions
- Lower shoe or drain connection
- Cutting allowance
Where more than one downpipe is required, measure each route separately. Two elevations that appear similar from the ground may have different soffit depths, wall projections or lower drainage positions.
Planning the cuts before installation can also reduce unnecessary waste and avoid creating several short visible pipe sections.
9. Support the Downpipe with Matching Clips
The vertical pipe needs suitable wall supports. Metal Profiles Ltd supplies an aluminium round downpipe pipe clip within its coordinated 76mm and 100mm range.
The correct clip size must match the chosen pipe diameter. Fixings must also suit the wall substrate, which may be brickwork, blockwork, concrete, timber, suitable cladding support or another construction.
For every round gutter downpipe, the installer should determine appropriate clip spacing and fixing requirements. Avoid drilling without checking for concealed services, and do not rely on loose render or damaged masonry as the main structural fixing point.
Keep clips clear of joiners, bends, offsets, branches, access panels, shoes and other services. Plan the fixing positions before installation.
Clip alignment also affects appearance. Clips placed on a consistent vertical line help the completed downpipe look neat, while irregular spacing can make even accurately manufactured pipework appear poorly installed.
The wall should be checked for uneven surfaces or projections that may prevent the pipe from sitting in the intended position.
10. Decide How the Downpipe Will Finish at Ground Level
The lower end of a round gutter downpipe should connect with the intended drainage arrangement. This may involve a suitable drain connection or a downpipe shoe, depending on the project detail.
Metal Profiles Ltd includes a round downpipe shoe and access-panel options within the round downpipe category. The wider range also includes branch fittings and hopper heads where the rainwater route requires them.
Before ordering, establish where the pipe terminates, whether it connects to a drain or shoe, whether access is required and whether the route conflicts with paving, planters or services.
For England, the government’s Approved Document H guidance on drainage and waste disposal includes guidance covering the provision needed to carry rainwater from building roofs. Project-specific compliance should be checked by the relevant designer, installer or building-control professional.
Do not assume that an existing lower connection is automatically suitable simply because an old pipe enters it. Check its position, size, condition and relationship with the proposed new pipe.
The bottom of the pipe should remain accessible enough for inspection and should not create an obstruction across a path or frequently used area.
11. Coordinate the Finish and Check Ordering Information
Once the technical layout is correct, consider how the round gutter downpipe will look across the elevation.
Metal Profiles Ltd offers polyester powder-coated aluminium products in a wide selection of RAL and BS colours, with mill finish also shown across relevant rainwater product pages. This allows the gutter, outlet, downpipe, brackets, corners and visible fittings to be planned as one coordinated external package.
The wider Metal Profiles Ltd Shop includes rainwater goods alongside aluminium copings, fascia, soffits and other architectural products. The Shop page lists Round Downpipe and Half Round Gutter as separate rainwater categories.
Before placing an order, read the current Shipping Policy. At the time of review, the policy lists 5–7 working days for mill-finish half round gutters and downpipes, 5–10 working days for listed colour finishes and 10–15 working days for bespoke products. Programme dates should always be checked against the live policy because lead times may change.
Buyers should also read the current Product Policy before ordering powder-coated, customised or made-to-order components. The policy explains return eligibility and notes that custom-made or personalised products are not normally returnable unless defective or damaged on arrival.
When matching an existing building finish, use the RAL or BS reference wherever possible rather than relying on a general description such as dark grey, black or white.
Should You Choose a 76mm or 100mm Round Downpipe?
There is no universal answer for every round gutter downpipe project. The suitable diameter depends on the compatible outlet strategy, roof drainage requirements and overall layout.
A 76mm pipe may create a slimmer appearance, while a 100mm pipe provides a larger diameter. However, appearance alone should not decide the specification.
Check:
- Roof areas feeding the gutter
- Number and position of outlets
- Gutter profile
- Expected flow and project drainage calculations
- Downpipe route
- Compatible fittings
- Ground-level connection
- Relevant design or regulatory requirements
The Met Office explains that rainfall varies across the UK and that western areas are generally more exposed to rainfall from Atlantic weather systems. That wider regional context is useful, but actual product sizing should still be based on the individual roof and drainage design rather than a broad national average. Read the Met Office guidance on UK rainfall patterns.
Where the correct round gutter downpipe size is unclear, provide the roof dimensions, gutter layout and outlet positions to a competent designer or installer.
The larger option should not be selected merely because the property is in a wetter area. The gutter, outlet and complete discharge route also need to support the intended arrangement.
Likewise, a smaller pipe should not be chosen only because it is less visually prominent. The technical drainage requirement comes before appearance.
Measurements to Prepare Before Ordering
A clear measurement pack makes a round gutter downpipe enquiry easier to assess.
Prepare the following:
- Roof elevations showing every gutter run
- Length of each straight gutter section
- Number and type of internal or external corners
- Stopend locations
- Outlet positions
- Selected 76mm or 100mm downpipe diameter
- Horizontal outlet-to-wall offset
- Total vertical pipe drop
- Number of pipe joints
- Proposed clip positions
- Branch or access requirements
- Lower drainage connection
- Preferred RAL, BS or mill finish
- Photographs of the existing roofline
- Drawings for non-standard details
Architects and construction professionals can review the NBS Specification page for wider specification resources. The page explains that Metal Profiles Ltd provides access to structured specification information and links to its NBS Source presence.
Project examples on the Metal Profiles Ltd Case Studies page may also help readers understand the wider architectural product range. They should be used for general context rather than copied as a substitute for measurements on the current project.
For an unusual round gutter downpipe route, send the drawings, dimensions and finish requirements through Contact Us. The official contact page provides the Chelmsford address, email, telephone details and enquiry form.
Clear photographs should show the gutter line, outlet position, full wall elevation and lower drainage point. Close-up photographs alone may not show how the complete route needs to work.
Where the project involves a replacement system, include photographs of the existing profile and connections. Do not assume that the existing pipe diameter is the same as the new aluminium option.
Round Gutter Downpipe Maintenance Tips
A well-selected round gutter downpipe still needs periodic inspection.
Check the system:
- After heavy rainfall
- During autumn leaf fall
- After building or roof work
- When stains appear on the wall
- When gutter overflow becomes visible
- When a pipe or clip appears loose
Clear leaves, moss and debris from the gutter. Check that outlets remain open and that stopends, corners and union joints do not show visible leakage.
Inspect downpipe clips and confirm that the pipe remains aligned. Look at bends, offsets and internal joints for movement. Check the lower drainage point for blockage or pooling.
The Met Office describes rain as one of the UK’s common weather phenomena and notes that persistent frontal rainfall can occur across the country. Regular inspection is therefore a practical part of maintaining exterior rainwater systems.
Do not use unsafe access methods to inspect a high-level round gutter downpipe. Where maintenance requires work at height or specialist repairs, use a competent contractor.
External maintenance may be needed more frequently where trees overhang the roof. Leaves and organic debris can collect around outlets even when the visible part of the gutter appears relatively clear.
Signs such as water marks below joints, repeated overflow in one location or a pipe moving away from the wall should be investigated rather than ignored.
FAQ
-
What is a round gutter downpipe used for?
A round gutter downpipe carries rainwater from the gutter down to a suitable drainage point. It helps move water away from the roofline, walls and foundation area, reducing the risk of water staining, damp patches and overflow around the property.
-
Is a round gutter downpipe suitable for UK homes?
Yes, a round gutter downpipe is a common choice for UK homes, extensions, garages and small commercial buildings. Its clean circular profile works well with many traditional and modern roofline designs, especially when paired with matching guttering, fascia and soffit details.
-
Which gutter works best with a round gutter downpipe?
A round gutter downpipe can be used with compatible gutter systems such as half round guttering or other matching rainwater systems. The key point is to use the correct outlet, bends, connectors and pipe clips so the whole system fits properly and drains efficiently.
-
What should be checked before installing a round gutter downpipe?
Before installation, check the gutter outlet position, downpipe route, wall fixing points and final drainage point. The pipe should be securely clipped to the wall, connected neatly to the gutter outlet and positioned so rainwater can flow away without leaking, splashing or pooling.
-
Why choose an aluminium round gutter downpipe?
An aluminium round gutter downpipe is a strong option for a clean, long-lasting UK roofline finish. It offers a premium appearance, good weather resistance and can be matched with aluminium guttering, fascia and soffit systems for a neat, professional exterior.
Metal Profiles Ltd is a UK manufacturer of aluminium rainwater goods and architectural metal products for residential and commercial requirements. A successful round gutter downpipe order begins with the correct 123mm × 51mm half round gutter, a compatible 76mm or 100mm outlet and downpipe, and all required joints, supports and routing fittings. Buyers should confirm run lengths, outlet positions, wall offsets, lower drainage details and finish before placing the order. Explore the official Shop and product categories for standard components, and review the policies before ordering coloured or bespoke items. For project-specific measurements, compatibility questions or unusual details, Contact Metal Profiles Ltd with photographs and drawings so the requirement can be reviewed.
