UK Roofline Product Guide for Better Details

A roof edge is one of the first places where otherwise well-finished work can look unfinished. Junctions between the roof covering, eaves, wall cladding, parapet and rainwater system need to shed water appropriately while maintaining straight lines and a consistent architectural finish. This UK roofline product guide sets out the main components to consider when specifying or ordering roofline metalwork for residential, renovation and commercial projects.

The right product is rarely chosen on appearance alone. Profile shape, fixing method, roof build-up, substrate condition, junction details and colour all affect whether a component will fit correctly and perform as intended. Measuring the site before ordering is particularly important where existing masonry, uneven fascia lines or non-standard roof projections are involved.

Start with the roof edge and water route

Before selecting individual components, establish how water will move from the roof surface into the rainwater system and away from the building. The roof covering, drip detail, fascia position, gutter line and downpipe location should be considered together rather than as separate purchases.

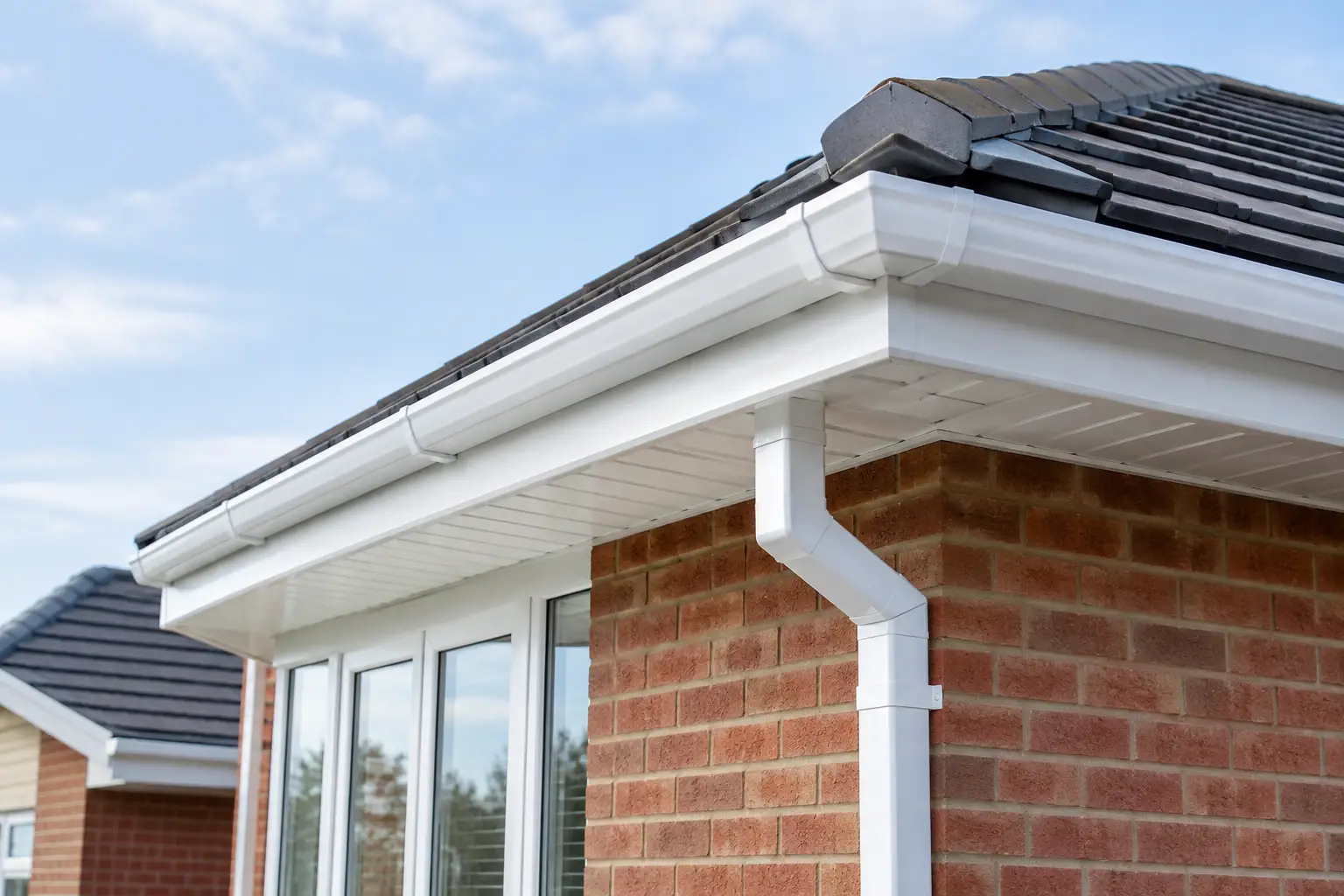

For a straightforward eaves detail, the fascia provides a clean front edge, the soffit closes the underside of the overhang, and the gutter collects roof runoff. On a flat roof or parapet, coping and associated flashing details protect exposed wall heads and manage the transition between roof membrane, wall face and edge trim. The products may look simple in elevation, but the interfaces between them determine the final result.

It also helps to identify what is already in place. A replacement fascia project may retain existing rafters and gutter brackets, whereas a new-build roofline can be designed around the selected sections from the outset. Existing dimensions should never be assumed to be uniform across an older property.

Fascia boards and soffits

Aluminium fascia boards are commonly selected where a crisp, durable roof edge is required with a low-maintenance metal finish. They are used at eaves to form the visible vertical face behind the gutter line and can also contribute to a more defined architectural edge on contemporary elevations.

The key selection points are face depth, return dimensions, thickness, jointing approach and how the board will be fixed to the supporting structure. A fascia must suit the projection and line of the roof, while allowing practical access for gutter brackets and associated trims. Where gutters are being replaced at the same time, their position should be set out before finalising the fascia dimensions.

Soffits complete the underside of an eaves overhang. They can be formed as flat panels or folded sections according to the detail. Their width needs to reflect the actual rafter projection and the intended relationship with the wall finish, fascia and any ventilation provisions required by the wider roof design. Do not treat the soffit as an afterthought: an incorrect width or poorly planned return can leave visible gaps at the wall or fascia junction.

For refurbishment work, check whether the existing timber, masonry or supporting framework is sound and suitable for fixing. Covering a defective substrate does not resolve the underlying issue. The installer should also allow for straight, consistent fixing lines, especially on long elevations where small deviations become very noticeable.

Copings for parapets and wall heads

Parapet copings provide a finished cap to exposed wall tops. They are commonly specified for flat-roof extensions, boundary walls, terraces and commercial parapets, where a neat transition over the wall head is required.

The wall width is only one part of the required measurement. The coping profile must also account for the desired overhang, edge returns, corners, stop ends and the adjoining roof or wall finish. A coping that is too narrow can leave the wall edge visually exposed; one with unsuitable returns may not sit correctly over the construction beneath.

Corners deserve early attention. Internal and external corners may be formed as separate items or considered within a wider fabricated arrangement, depending on the project detail. Recording the wall line, changes in level and any returns before fabrication reduces the risk of awkward on-site alterations.

For parapet work, coordinate the coping with the roof waterproofing contractor and the wall finish. This is not a matter of prescribing another trade’s system; it is simply about ensuring that the interfaces are understood before materials arrive. A clean coping line relies on compatible tolerances and a clear sequence of work.

Gutters, flashings and roof trims

A rainwater system should be chosen around the roof geometry and the intended outlet arrangement. Gutters need suitable falls towards outlets, correctly placed brackets and practical routes for downpipes. Their visual relationship with the fascia matters too: a gutter that sits too high or too low can spoil the line of the eaves and complicate the roof-edge detail.

Flashings and roof trims are used to finish transitions where roof coverings meet walls, parapets, openings or changes in material. They can protect vulnerable edges and conceal cut lines, but only when the profile is designed for the precise junction. A generic angle may be suitable for a simple cover detail, while a folded profile with specific legs and returns may be needed where several materials meet.

This is where made-to-measure fabrication is often more practical than trying to adapt a standard section on site. A drawing or clear sketch showing the face dimensions, folds, overall length, angles and orientation gives the fabricator a useful starting point. State which face is visible and which direction the return folds, particularly for handed details.

Window surrounds, wall trims and planter edges may also need to coordinate with roofline items on the same elevation. Selecting related RAL colours can create a consistent finish, but colour should be confirmed against the project specification and the product finish available. A single scheme may use different profile shapes and materials, so visual coordination should not override suitability at each junction.

When a standard profile is enough

Standard products are often the efficient choice for regular eaves, simple wall caps and repeatable trim details. They make sense when dimensions are known, the substrate is consistent and the profile matches the required application without modification.

A project-specific profile is worth considering when an existing building has unusual dimensions, a parapet varies in width, a return must align with another finish, or the architect has specified a particular shadow line. Bespoke fabrication can also simplify installation by reducing unnecessary cuts and improvised packers on site.

That said, custom fabrication does not remove the need for accurate information. Provide finished dimensions rather than approximate site estimates, and confirm whether measurements are to the outer faces, inner faces or wall centreline. For long runs, identify joints, corners and changes of direction. If a detail is uncertain, resolve it before manufacture rather than relying on an installer to reinterpret it at roof level.

Installation planning that avoids visible problems

Roofline products are exposed components, so small installation errors tend to remain visible. Straight setting-out, even joint gaps and carefully managed end details make a substantial difference to the finished elevation. Protect finished surfaces during handling and installation, and avoid dragging long sections across rough ground or adjacent metalwork.

Allow for movement and follow the fixing approach appropriate to the selected product and supporting structure. Fixings, sealants and support arrangements should be selected by the installer for the application, with attention to the product detail and other materials at the junction. Avoid forcing a section into an uneven opening or using excessive sealant to disguise a poor fit.

Delivery and handling should also be planned for long fabricated lengths. Confirm access restrictions, safe storage space and the order in which pieces will be needed. Separating and labelling complex items before installation helps prevent a corner, handed trim or wall cap being fitted in the wrong location.

Care and ongoing inspection

Metal roofline components are selected for their durable, weather-resistant qualities, but periodic checks remain sensible. Clear leaves and debris from gutters, inspect joints and outlets, and look for damage caused by ladders, building work or impact. Prompt attention to local damage can help maintain the appearance of the installation and prevent minor issues becoming harder to address.

Cleaning requirements depend on the product finish and site environment. In most cases, a gentle clean using suitable methods is preferable to abrasive treatment that could mark the surface. Where products meet other materials, inspect those interfaces as well, since staining or movement at a neighbouring finish can affect the overall appearance.

Questions to ask before ordering

Should I measure the finished wall or the existing roofline?

Measure the surfaces and projections that the new component must cover, then clearly state the reference points used. On refurbishment work, check several points along the elevation rather than relying on one measurement.

Can fascia, soffits and gutters be changed separately?

They can be, but they should be planned as one roof-edge assembly. Changing one item may alter bracket positions, visible lines and the relationship between the roof edge and rainwater outlet.

What information helps with a made-to-measure quote?

Provide quantities, lengths, a dimensioned sketch or drawing, profile shape, material requirement where relevant, finish or RAL colour requirement, and photographs of the installation area. Note corners, stop ends, penetrations and any unusual substrate conditions.

A well-detailed roofline does not need to be complicated. It needs products that suit the building, measurements that reflect the real site conditions and a clear understanding of each junction before fabrication begins. For projects requiring standard sections or tailored folded profiles, Metal Profiles can support specification-led enquiries with practical fabrication knowledge and nationwide supply across Great Britain.
