How to Choose the Best Box Gutter Material for UK Buildings

Choosing the Right Box Gutter Material

Choosing the right Box Gutter Material is essential when planning a reliable roof drainage system. A box gutter must collect rainwater, carry it along the roof edge and direct it towards suitable outlets and downpipes. If the material, profile size or supporting components are unsuitable, the system may be more vulnerable to standing water, overflow, joint problems and avoidable maintenance.

The best Box Gutter Material cannot be selected by appearance alone. Roof area, rainfall, gutter fall, outlet position, downpipe capacity, building exposure and installation conditions all influence the decision. The gutter must also fit the available roof-edge space and work correctly with the fascia, roof covering and surrounding building details.

Aluminium is a popular Box Gutter Material for residential, commercial and architectural properties across the UK. It is lightweight, corrosion-resistant and capable of creating the straight, defined lines associated with box-profile drainage. It can also be supplied in different sizes and finishes to complement a building’s exterior.

This guide explains how Box Gutter Material should be assessed, why aluminium is commonly selected and what property owners, contractors and specifiers should confirm before ordering a complete system.

What Is a Box Gutter?

A box gutter is a straight-sided channel designed to collect rainwater from a roof and carry it towards a discharge outlet. Its geometric profile distinguishes it from rounded guttering and can provide a clean finish on contemporary houses, commercial premises, extensions, conservatories and flat-roof buildings.

The aluminium box gutter range from Metal Profiles Ltd includes straight lengths and the principal components needed to form a coordinated run. These include corners, stopends, fascia brackets, union joiners and outlet options.

A box gutter may be installed visibly along a roof edge or incorporated into a more complex architectural detail. Regardless of its position, the chosen Box Gutter Material must be suitable for exterior exposure and correctly integrated with the surrounding construction.

The gutter itself is only one part of the drainage route. Water must enter the channel cleanly, travel towards the outlet and continue through a compatible downpipe. An error at any stage can reduce the performance of the complete system.

Why Box Gutter Material Matters

The Box Gutter Material influences the weight, durability, appearance and maintenance requirements of the installation. It can also affect how components are joined, how movement is accommodated and which finishes are available.

A material that works well on one building may not suit another. A small domestic extension and a large commercial roof can place very different demands on a gutter. The roof catchment area, length of the run and number of outlets must therefore be considered before the material and profile are confirmed.

The position of the gutter also matters. An exposed external gutter faces rain, wind, seasonal temperature changes and airborne debris. A concealed or restricted gutter may create different maintenance and access challenges. The Box Gutter Material should suit both the exposure and the way the system will be inspected after installation.

Appearance is important, particularly where the gutter forms a visible line across the elevation. However, visual preference should come after drainage performance, compatibility and installation suitability have been established.

Why Aluminium Is a Popular Box Gutter Material

Aluminium is frequently selected as a Box Gutter Material because it combines relatively low weight with corrosion resistance. These characteristics make it practical for external rainwater systems on many UK buildings.

Its light weight can help with transportation, handling and positioning when compared with some heavier materials. Safe access, lifting and installation methods are still necessary, especially when long sections are being fitted above ground level.

Aluminium can be formed into consistent profiles with crisp edges. This gives an aluminium box gutter a defined architectural appearance that can coordinate with modern fascia, soffits, copings, downpipes and other exterior metalwork.

A further advantage is the availability of different finish options. Aluminium products can be supplied in mill finish or selected RAL colours where the relevant product specification permits. This allows the Box Gutter Material to coordinate with windows, doors, cladding and the wider roofline.

Aluminium still requires appropriate design and installation. Corrosion resistance cannot compensate for insufficient capacity, inadequate fall, incompatible outlets or poor maintenance. The material should always be treated as one part of a complete drainage system.

Comparing Aluminium with Other Materials

Box gutters may be manufactured or lined using aluminium, coated steel, zinc, copper, lead or specialist roofing membranes. Each Box Gutter Material has different characteristics, and the correct choice depends on the building.

Steel can provide a strong gutter profile, but its protective coating and exposed edges require careful consideration. Zinc and copper can offer distinctive appearances and long service potential when detailed correctly, although their cost and installation requirements may differ from aluminium.

Traditional lead-lined gutters are associated with particular construction methods and heritage applications. Membrane-lined gutters can also be incorporated into flat-roof systems, but their joints, outlets and interfaces must follow the appropriate roofing design.

Aluminium is often preferred where the project requires a relatively lightweight external system with a clean finish and coordinated components. It can suit both straightforward gutter runs and bespoke architectural requirements.

Different metals should not be combined without checking compatibility. Unplanned contact between dissimilar materials can introduce technical concerns. Fixings, sealants, outlets and adjoining roof components should all be suitable for the selected Box Gutter Material.

Choosing the Correct Profile Size

Selecting aluminium as the Box Gutter Material does not automatically identify the required gutter size. The profile must provide suitable capacity and fit the available roof-edge arrangement.

Metal Profiles Ltd supplies standard aluminium box gutter lengths in 100mm × 75mm, 125mm × 100mm and 150mm × 100mm profiles. These measurements relate to the gutter sole and upstand, and straight sections are available in 3m lengths.

A larger gutter may appear to offer a safer option, but it must fit the fascia and roof detail. It must also work with the selected brackets, corners and outlets. A profile should never be increased or reduced without considering the complete system.

The roof area, rainfall intensity, gutter fall and outlet arrangement influence the required capacity. A qualified designer, roofing contractor or installer should confirm the appropriate profile where performance calculations are required.

For refurbishment projects, measure the existing gutter accurately instead of selecting a replacement based on visual similarity. Small differences in profile dimensions can affect corners, joiners, brackets and outlet connections.

Consider the Roof Catchment Area

The amount of water entering a gutter depends heavily on the roof area it serves. A large roof can deliver a considerable volume of rainwater into a relatively short channel.

Box Gutter Material should therefore be selected as part of a capacity assessment. The profile dimensions, number of outlets and downpipe sizes must be capable of moving the expected water away from the roof.

Roof pitch can also influence how quickly water reaches the gutter. Concentrated flows from valleys, adjoining roof slopes or higher roof sections may place additional demand on particular areas of the run.

Extensions and alterations can change an existing drainage requirement. If a new roof is connected to an old gutter, the previous Box Gutter Material and profile may no longer provide sufficient capacity.

Where the consequences of overflow are significant, professional drainage calculations should be completed. This is particularly important above entrances, occupied areas, electrical equipment or vulnerable building interfaces.

Plan the Gutter Fall

A suitable fall encourages rainwater to travel towards the outlet. Without the correct gradient, water may remain within the gutter even when the chosen Box Gutter Material is appropriate.

Standing water can hold dirt, leaves and organic matter. This makes the channel more likely to develop a blockage and increases the importance of regular cleaning.

The fall should be considered before brackets are positioned. Variations in fascia level or supporting construction may affect the completed gradient, so the installer should check the physical run rather than relying only on the drawing.

Long runs may require more than one outlet or a drainage arrangement that divides the flow. The distance water must travel should be considered alongside gutter size and roof area.

A visually level gutter may still incorporate a designed fall, but the gradient must be sufficient to support drainage. The final arrangement should follow the approved project detail.

Coordinate Outlets and Downpipes

The outlet provides the transition between the box gutter and the downpipe. Selecting the Box Gutter Material without checking this connection can result in an incomplete or incompatible system.

Metal Profiles Ltd supplies round and box outlet options within its aluminium box gutter range. A round outlet should be coordinated with a compatible round downpipe, while a box outlet should suit the intended square or rectangular connection.

The wider aluminium rainwater goods range allows customers to review box guttering alongside half-round gutters, round downpipes, square downpipes and the components required to complete the drainage route.

Outlet location affects how far water travels and where the downpipe appears on the building. The chosen position must work with windows, doors, cladding joints, ground drainage and architectural features.

An existing downpipe should be measured before a new outlet is ordered. Similar-looking components are not necessarily identical in size, and a restricted connection can affect water flow.

Select Matching Components

A complete box gutter installation requires straight lengths, brackets, joiners, corners, stopends and outlets. All components should correspond with the chosen Box Gutter Material and profile size.

Union joiners connect adjoining straight lengths. Fascia brackets support the gutter, while stopends close the terminations. Internal and external corners allow the system to follow changes in the building line.

Metal Profiles Ltd offers standard internal and external corner components in 90-degree and 135-degree configurations. The angle and direction of every corner should be confirmed before ordering.

An internal corner and an external corner perform different roles. Preparing a simple plan of the building can help the buyer understand which component is required at each change in direction.

Fittings from different profile sizes should not be mixed. Components intended for a 100mm × 75mm profile should not be assumed to fit 125mm × 100mm or 150mm × 100mm guttering.

Standard and Bespoke Box Gutters

Standard aluminium components can suit many straightforward buildings. They offer established profile sizes and matching accessories that can be planned as one system.

A bespoke Box Gutter Material solution may be required when the roof has non-standard dimensions, unusual corner angles or restricted outlet positions. Bespoke fabrication may also be useful where the gutter must connect with existing metalwork or follow a complicated building line.

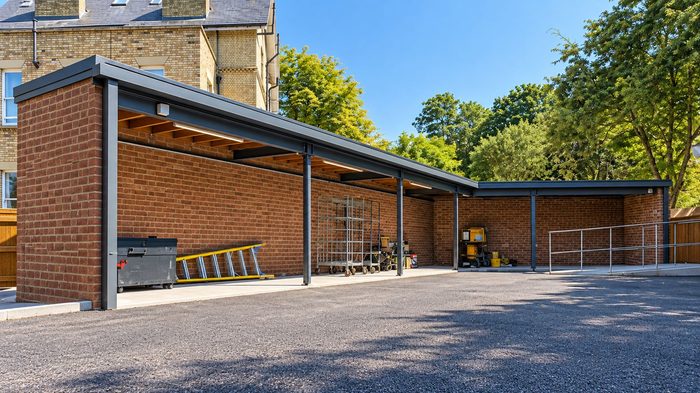

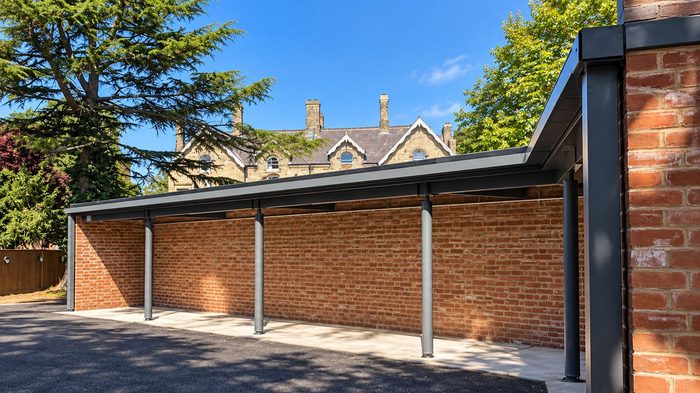

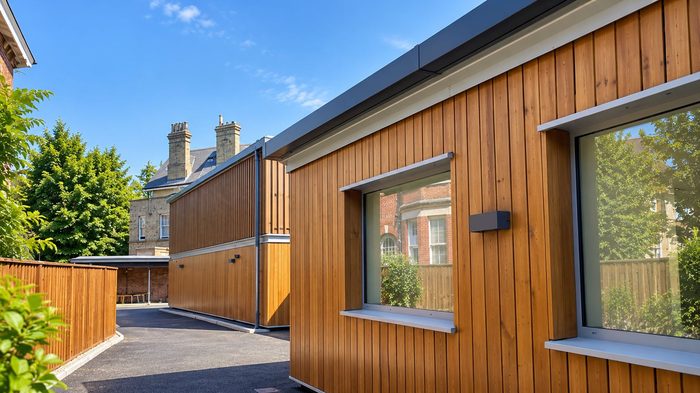

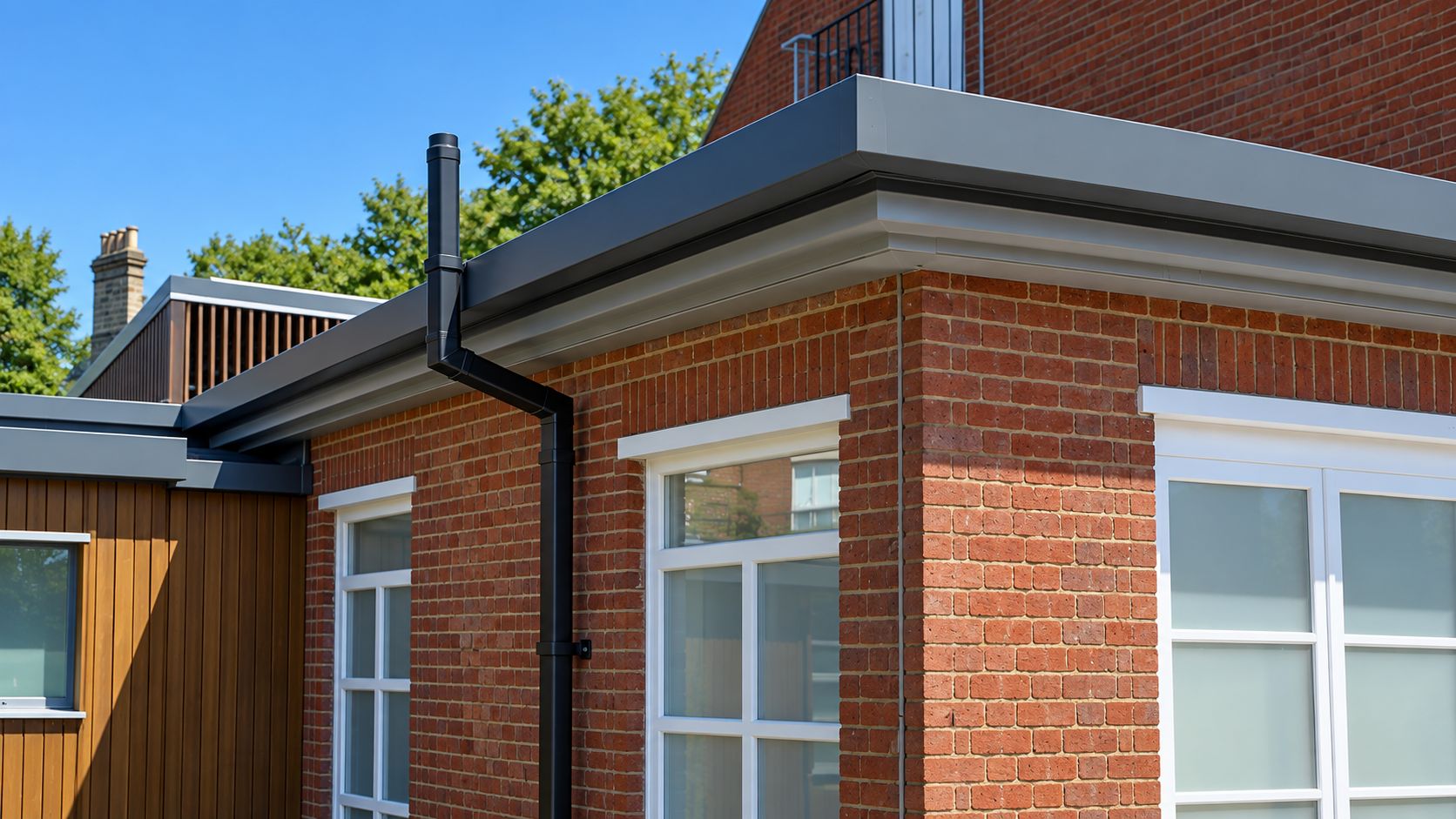

The bespoke aluminium box gutter installation at an educational facility provides an example of a project-specific approach. The system incorporated a unique aluminium box gutter arrangement, aluminium square downpipes and a RAL 7043 Traffic Grey B polyester powder-coated finish.

This example shows why Box Gutter Material must be considered alongside dimensions, discharge capacity and building appearance. A bespoke profile still requires accurate drawings, correctly positioned outlets and a clear understanding of the supporting construction.

Customers requesting a bespoke solution should provide gutter dimensions, straight-run lengths, corner angles, outlet locations, downpipe details and finish requirements. Elevations and roof plans can make the requirement easier to understand.

Check the Supporting Structure

The supporting construction must be suitable for the gutter, expected water load and fixing arrangement. Box Gutter Material may be relatively lightweight when empty, but the completed system must also support water and any accumulated debris.

Fascia condition should be checked before installation. Rotten timber, damaged boards, loose cladding or unsuitable backing materials should not be treated as secure fixing surfaces.

The installer must identify whether brackets and fixings will connect to timber, metal or another suitable structural background. The visible exterior finish may conceal insulation, cavities or support rails that affect the fixing method.

Bracket spacing should follow the relevant product and installation requirements. Additional attention may be needed near corners, outlets and other points where loads or connections change.

The supporting line must also allow the required fall to be established. A distorted or uneven fascia may need correction before the gutter is fitted.

Understand Thermal Movement

Aluminium expands and contracts as temperatures change. This natural movement must be considered when aluminium is selected as the Box Gutter Material.

The total run length, joint arrangement and fixing method influence how movement should be accommodated. Long elevations exposed to sunlight may experience more noticeable temperature variation.

Restricting movement without an appropriate detail can place stress on joints and fixings. Joiners and connections should therefore be installed according to the system guidance.

The finish colour may also influence surface temperature. Dark finishes can absorb more heat than lighter colours, making correct movement planning especially important on exposed elevations.

Where the gutter run is unusually long or technically complex, the designer or manufacturer should be consulted before the joint layout is finalised.

Coordinate the Roof Edge

The roof covering must discharge water into the box gutter without allowing it to run behind the channel or overshoot the front edge.

Drip details, membranes, fascia and Box Gutter Material should be considered together. Poor coordination at this interface can create water ingress even when the gutter itself is correctly manufactured.

Flat-roof and parapet arrangements often contain several materials within a small area. Membranes, trims, insulation and the gutter may all meet close to the roof edge.

The installation sequence should be confirmed before work begins. This helps prevent a situation where the gutter blocks access to a membrane joint or where a later roof component cannot be positioned correctly.

Unclear roof-edge details should be resolved through drawings or professional advice. Site assumptions can lead to gaps, incorrect overlaps and poorly directed water.

Choose the Right Colour and Finish

Box Gutter Material contributes to the appearance of the roofline, particularly when the gutter is visible from ground level.

Aluminium can be supplied in mill finish or suitable polyester powder-coated colours where available. An exact RAL reference should be used when the gutter must match windows, fascia, soffits, downpipes or cladding.

Descriptions such as dark grey, white or black do not identify a precise colour. The specification should record the full colour reference and the required finish.

Screen colours and photographs may not accurately represent a physical powder-coated surface. Approved samples or existing project specifications should be checked when an exact match matters.

Visible brackets, fasteners, sealants and downpipes should be included in the colour decision. Coordinating these components can create a more consistent exterior than choosing only the gutter colour.

Measure the Project Correctly

Accurate measurements help ensure that the Box Gutter Material and components fit the building without unnecessary site alteration.

Record each straight run separately. Note every internal corner, external corner, stopend and outlet. Confirm the direction and angle of each change in the building line.

Measure the available fascia depth and the space between the roof edge and surrounding architectural features. Check whether windows, doors, pipes or cladding joints affect the proposed downpipe position.

For a replacement project, record the existing gutter profile, outlet dimensions and downpipe connection before removal. Photographs should accompany the measurements where the arrangement is complicated.

A dimensioned plan is particularly helpful for buildings with multiple elevations. It allows the supplier and installer to understand how individual sections will form one continuous system.

Avoid Common Ordering Problems

A frequent mistake is choosing Box Gutter Material based only on cost or appearance. The gutter profile, drainage capacity and compatibility with the roof must be established first.

Another problem is ordering straight sections but forgetting the components required to start, stop, support, join and discharge the run. Missing stopends, brackets or outlets can delay installation.

Incorrect corner selection is also common. Internal and external corners should be identified from a plan rather than guessed from a single ground-level photograph.

Customers sometimes assume that a new outlet will connect directly to an old downpipe. Both components should be measured and checked before the order is placed.

Colour and finish should be confirmed at the beginning. Ordering additional components later may make consistent colour coordination more difficult.

Installation and Site Access

The installation team should review access before the Box Gutter Material arrives. Long sections must be moved from the delivery point to the roof edge without bending or damaging the finish.

Scaffolding, lifting equipment and safe working arrangements should be prepared in advance. The gutter should not be used as a platform, handhold or support for unrelated work.

Products should be stored securely and protected from scratches, impact and construction debris. Packaging alone may not provide suitable long-term site protection.

Before fixing begins, the installer should compare the supplied components with the approved gutter plan. Profile sizes, corner directions, outlet positions and finish should all be checked.

The completed system should be inspected for alignment, joint condition and unrestricted flow. Any protective material should be removed according to the relevant guidance.

Maintaining Aluminium Box Gutters

Choosing a low-maintenance Box Gutter Material does not mean the system can be ignored. Every gutter requires periodic inspection and cleaning.

Leaves, moss, silt and other debris can collect in the channel or around outlets. Buildings close to trees may need more frequent inspection, particularly during autumn.

Overflow during rainfall can indicate a blockage, inadequate outlet capacity or an unsuitable fall. Water marks on walls or fascia should be investigated rather than treated as a cosmetic issue.

Joints, corners, stopends and brackets should be inspected for visible movement or damage. Maintenance should be carried out safely using methods that do not scratch the aluminium or damage its finish.

Access should be considered during the original design. A gutter that cannot be reached safely will be more difficult to maintain throughout its service life.

Repairing or Replacing an Existing System

Before replacing an old gutter, identify why it has failed. Selecting a new Box Gutter Material without correcting the original drainage problem may lead to repeated issues.

Persistent overflow may be caused by insufficient capacity, too few outlets, blocked downpipes or inadequate fall. Leakage may result from damaged joints, movement or unsuitable previous repairs.

The supporting fascia and roof edge should be inspected when the old system is removed. Hidden deterioration must be repaired before the replacement gutter is installed.

If the roof area or layout has changed, the new system should be assessed using the current drainage requirement. A direct like-for-like replacement may not be appropriate.

Bespoke fabrication can be considered where the original dimensions are unusual, but accurate measurement and professional design remain essential.

Consider the Complete Project Cost

The cost of Box Gutter Material is only one part of the total installation budget. Corners, outlets, brackets, joiners, stopends, downpipes, fixings, finishes, delivery and labour must also be included.

A cheaper material may not offer good value if it is unsuitable for the building or requires frequent repairs. A high-quality material will also underperform if the profile is incorrectly sized or installed.

Planning the complete system before purchasing can reduce waste and avoid repeated deliveries. It can also help contractors position joints more efficiently across standard section lengths.

Customers who have confirmed their requirements can explore available aluminium products and accessories through the Metal Profiles Ltd shop.

Review Relevant Project Experience

Completed work can help customers understand how Box Gutter Material may be applied across different types of property. Project examples can demonstrate the relationship between gutter profile, downpipe arrangement, colour and surrounding architecture.

The collection of Metal Profiles Ltd case studies provides examples of aluminium rainwater goods and wider architectural metalwork.

A case study should be used for context rather than copied as a specification. Every roof has its own catchment area, support conditions, outlet requirements and visual considerations.

The final Box Gutter Material selection should always be based on the measurements and performance requirements of the current building.

Follow Metal Profiles Ltd Online

Metal Profiles Ltd shares product information, company updates and visual content through its professional social channels. Customers can watch relevant content on YouTube, follow business updates on LinkedIn and connect with the company on Facebook.

Further product and architectural inspiration is available through the Metal Profiles Ltd Pinterest profile. These channels can support early research, while final dimensions, system compatibility and technical requirements should always be confirmed before ordering.

Frequently Asked Questions

Choose Box Gutter Material with Confidence

The correct Box Gutter Material must do more than create an attractive roofline. It must suit the roof area, provide sufficient capacity and work with the gutter fall, outlets, downpipes and supporting structure.

Aluminium offers a strong combination of low weight, corrosion resistance and architectural appearance. Standard profiles can suit many straightforward projects, while bespoke fabrication may be appropriate for unusual dimensions, complex corners and project-specific drainage arrangements.

Careful measurement and system planning are essential before any Box Gutter Material is ordered. When each component is selected as part of one coordinated system, installation becomes easier and the completed gutter is better prepared to manage rainwater reliably.

For help selecting Box Gutter Material, visit Metal Profiles Ltd at 17 Redhills Road, South Woodham Ferrers, Chelmsford, CM3 5UL, call 07340 225745, email info@metal-profiles.co.uk, or contact Metal Profiles Ltd.
