Made to Measure Soffits for a Better Roofline

A soffit is often only noticed when it has been poorly detailed: uneven lines at the eaves, open gaps around corners, or an awkward junction with a fascia board and gutter. Made to measure soffits are intended to avoid those compromises. By fabricating panels and trims to suit the actual roof edge, they help create a neat, consistent underside to the eaves while accommodating the dimensions and junctions found on site.

For builders, roofers and homeowners, the value is not simply a more tailored appearance. A correctly specified soffit detail gives the roofline a purposeful finish, covers the underside of projecting rafters or roof structures, and allows related components to meet cleanly. The final result still depends on accurate survey work, suitable support and careful installation, but ordering to the required dimensions removes much of the unnecessary cutting and patching associated with standard sections.

Where made to measure soffits are used

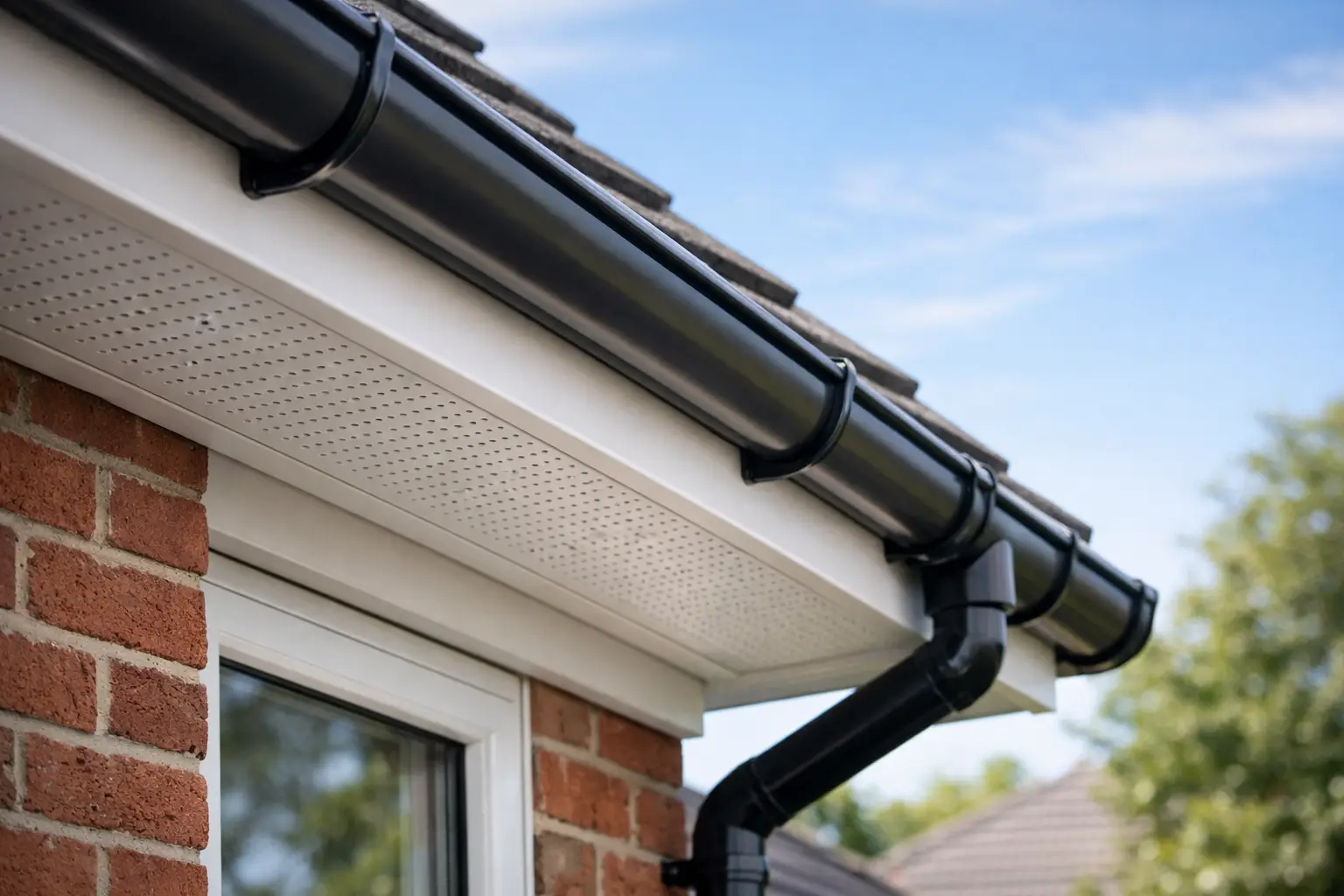

Soffits sit on the underside of an overhanging roof edge, generally between the external wall and the fascia. They are commonly used on new-build homes, roofline replacements, extensions and refurbishment work. On commercial schemes, soffit linings can also form part of the visible edge detail at canopies, projecting roofs and other external overhangs.

The required form changes from project to project. A simple straight run beneath a pitched roof may only need a flat panel with a straightforward return. A property with deep eaves, uneven existing masonry, boxed-in rafters or several changes of direction may require folded sections, separate closure trims or purpose-made corner details. This is where a made-to-measure approach is particularly useful.

Aluminium is a practical material for external roofline components because it provides a clean formed finish and does not have the same susceptibility to rot as timber. However, material choice should always be considered alongside the building design, the exposure of the elevation, the surrounding components and the required appearance. A soffit should be selected as part of the whole roofline detail, not as an isolated panel.

Start with the roofline detail, not the panel size

The visible width of a soffit is only one part of the specification. Before ordering, establish how the soffit will connect to the fascia, wall and any adjacent cladding, render or trim. The position of the gutter is relevant too: brackets, outlets and fall arrangements must work with the fascia and should not be treated as an afterthought once the soffit is in place.

A useful survey begins by identifying the finished lines. Measure from the finished wall face to the fascia position, rather than relying solely on the existing timber or exposed rafter ends. On refurbishment projects, existing elements may be out of level or vary along the elevation. Check several points across each run, particularly around bay windows, porches, abutments and corners.

It also helps to decide whether the soffit is intended to sit flush, return into a reveal, or meet a separate trim. These choices affect the developed dimensions required for fabrication. A sketch showing the wall, fascia, soffit and fixing position is often more useful to a fabricator than a list of widths alone.

Allow for movement, support and tolerances

Long roof edges rarely behave as perfectly straight lines. Existing walls may bow, fascia lines may alter around extensions, and corners may not be square. Measuring one length and assuming it applies throughout can lead to narrow gaps or panels that need excessive site trimming.

Break the roofline into manageable runs and record the length, width, angles and any change in level. Identify where joints can be positioned discreetly and where supporting timbers, framing or substrate members are available for fixing. Large unsupported spans can affect the appearance of a lining, so the support arrangement should be resolved before the order is placed.

The installer also needs practical tolerance for fitting. Panels should not be forced tightly between rigid elements, especially where the surrounding construction may move independently. The appropriate allowance depends on the detail and materials involved. If there is uncertainty, provide the survey information and intended fixing method when requesting a quote rather than guessing a finished panel size.

What to include in a soffit enquiry

Clear information reduces avoidable questions and helps ensure the fabricated sections are suitable for the intended detail. Along with quantities and overall lengths, specify the finished projection or width, the number of separate runs, and whether each item is flat or folded.

For rooflines with more than a simple straight edge, include a dimensioned drawing or photographs with key measurements marked. State the location of external and internal corners, changes in pitch, returns into walls, service penetrations and junctions with rainwater goods. If an existing fascia is being retained, its depth and position should be recorded because it determines how the soffit finishes at the outer edge.

Finish requirements matter as much as the profile. Aluminium roofline components are often selected to coordinate with fascias, copings, window surrounds or other architectural metalwork. Where a particular RAL colour or surface finish is required, confirm it at quotation stage and make sure all components are described consistently. A colour reference alone does not resolve every visual decision, as gloss level, material type and neighbouring surfaces can affect the overall appearance.

Installation considerations that affect the finish

Made to measure does not mean that the installation can be approached casually. Store sections safely and protect visible faces from scratches, debris and contact with incompatible materials during handling. Check each item against the drawing before cutting, drilling or fixing, particularly where folded profiles may look similar but serve different locations.

Set out from a known straight line and check the fascia alignment before closing in the underside of the eaves. If the fascia is uneven, the soffit will usually make that unevenness more visible. Establishing the correct line first is preferable to trying to disguise a problem with sealant or uneven packing later.

Fixings should suit the substrate and the material being installed. Their position should be planned to retain a tidy appearance while providing consistent support. Where trims cover an edge or joint, avoid relying on the trim alone to correct a poorly supported panel. Corners and terminations deserve particular attention, as they are the points most likely to show gaps if the survey or set-out has been rushed.

Ventilation requirements are project-specific. Where the roof construction requires ventilation at the eaves, this needs to be designed into the roof detail using suitable components and clear airflow paths. A solid soffit panel should not be assumed to provide ventilation, and openings should not be introduced without considering how they relate to the wider roof construction.

Maintaining aluminium soffit details

A well-detailed aluminium soffit needs relatively little routine attention, but it should not be ignored. Periodic visual checks are sensible, particularly after work has been carried out at roof level or following severe weather. Look for impact damage, loose fixings, movement at joints, blocked rainwater goods and staining from overflow.

For general cleaning, use clean water and a soft cloth or sponge. Mild detergent may be appropriate for ordinary surface dirt, followed by rinsing. Avoid aggressive abrasives or harsh cleaning products that could mark the finish. Any persistent staining should be assessed before stronger cleaning methods are used, particularly on coloured surfaces.

Maintenance of the surrounding roofline is equally relevant. Leaking gutters, failed seals in adjacent construction or damaged roof coverings can cause staining and detract from an otherwise sound soffit installation. Keeping the entire eaves detail in good order protects both the appearance and function of the finished work.

FAQs about made to measure soffits

A roofline is made up of small junctions that have a large effect on the finished building. Taking time to survey the eaves, define the support and communicate the full detail before fabrication gives made to measure soffits the best chance of fitting cleanly and performing as intended.
