Roof Outlet Options for Flat Roof Drainage

A roof outlet is a small component with a large effect on the finished roof. Its position determines where water leaves the waterproofing layer, how easily the system can be inspected, and how cleanly the roof edge, parapet or soffit can be detailed. For flat and low-pitch projects, choosing between roof outlet options should happen early, alongside the falls, roof build-up and intended rainwater route.

The right arrangement is not simply the one that is least visible. A concealed outlet can protect the appearance of a façade, but it must remain practical to install, maintain and connect to the drainage system. Equally, a visible outlet may suit an industrial or contemporary scheme where straightforward access is more valuable than a hidden downpipe.

Roof outlet options at a glance

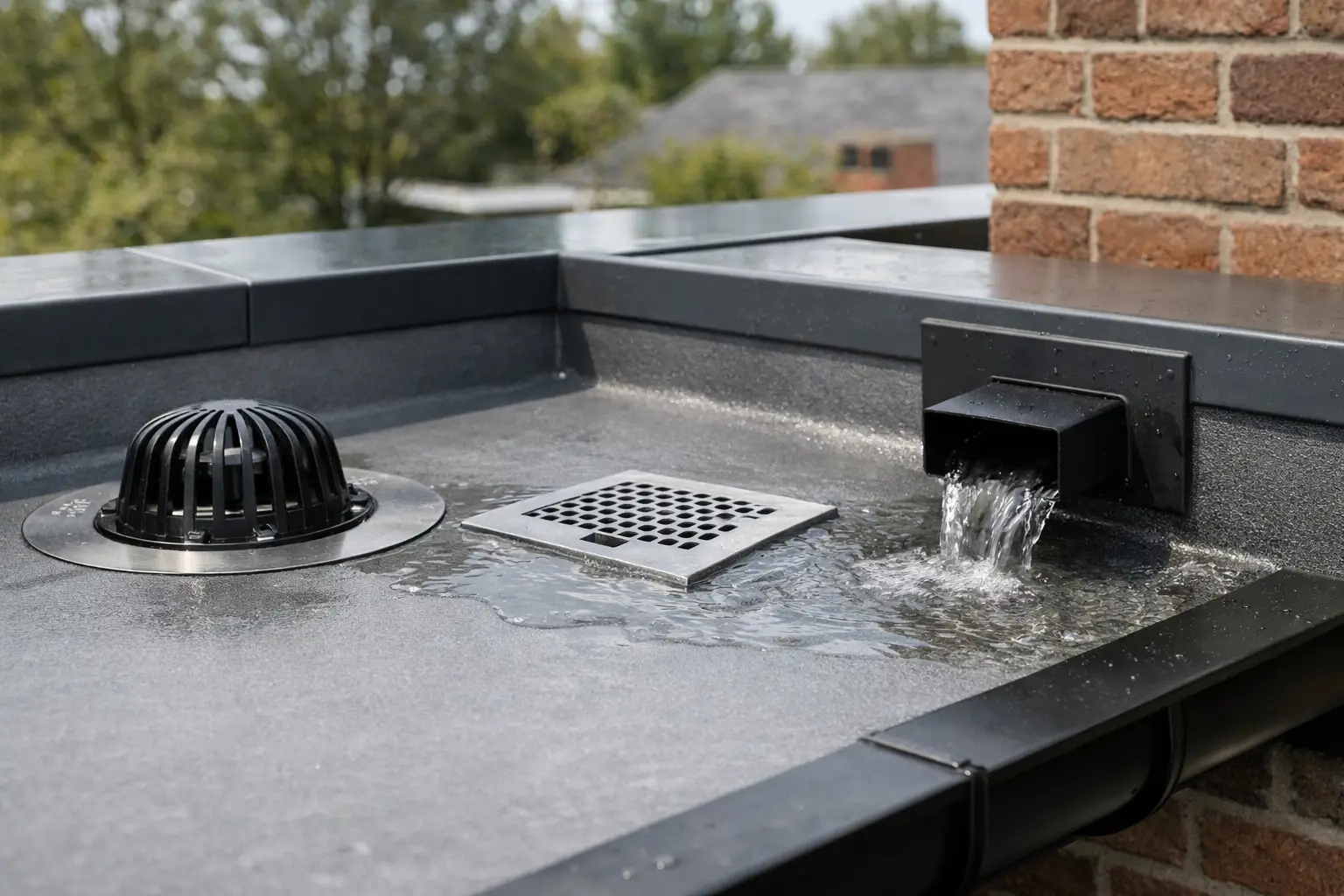

Most flat-roof drainage layouts use one of three approaches: a vertical outlet through the roof deck, a horizontal outlet through a parapet wall, or an open edge detail directing water into an external gutter. Each can be appropriate, provided the roof covering, substrate, falls and rainwater components are designed as one coordinated detail.

The selection will often be influenced by whether the roof has parapets, the location of internal walls and drainage runs, the depth of the roof construction, and the architectural finish required at the eaves. On refurbishment work, existing pipe routes and the condition of the surrounding roof structure may also narrow the options.

Vertical roof outlets

A vertical outlet takes water down through the roof structure into a rainwater pipe below. It is commonly used where drainage can be routed internally or where a downpipe can be positioned directly beneath the outlet.

This arrangement can keep pipework out of sight on elevations, which is useful on buildings with clean parapet lines. It can also reduce the number of penetrations through parapet walls. However, the outlet must be correctly integrated with the roof waterproofing system, and the route below the roof needs sufficient coordination with the structure and internal layout.

Access matters. Leaf guards, gratings and surrounding roof areas should be capable of inspection and clearing. A vertical outlet positioned behind plant equipment, close to a wall upstand or in a poorly accessible roof zone can become difficult to maintain, even where the initial installation is neat.

Horizontal parapet outlets and scuppers

A horizontal outlet passes through a parapet or upstand and discharges water to the outside of the building. This may connect to a hopper, rainwater head, external gutter or downpipe arrangement. It is often selected where the roof has a parapet and an external rainwater route suits the elevation.

This option can make the drainage path easy to understand from outside the building. It also avoids taking a pipe through the roof deck. The trade-off is that the parapet penetration, outlet sleeve and external junction require careful finishing. The discharge point must be arranged so water is collected and directed away without staining or repeatedly wetting the façade below.

Parapet outlets are particularly relevant where coping, capping and façade trims are being specified at the same time. The outlet location should be agreed before metalwork is fabricated. A coping joint, folded flashing or fascia return should not have to be cut back on site because the drainage opening was not allowed for in the original setting-out.

External gutters at the roof edge

Where the roof falls towards an eaves edge, water can discharge into an external gutter rather than a discrete roof outlet. This is a familiar solution for many extensions, garages, canopies and low-rise commercial roofs.

The gutter line becomes a visible part of the building envelope, so its size, bracket arrangement, outlet positions and colour deserve the same attention as the roof trim. Aluminium gutters and fabricated fascia details can provide a consistent finish where durability and crisp edge lines are required, but the exact profile must suit the roof edge construction and the chosen drainage system.

An external gutter can be easier to inspect than concealed drainage, although it remains exposed to leaves and debris. It may also be unsuitable where the desired elevation has no eaves projection or where water needs to be carried away from a tight boundary.

Choosing the outlet position

The outlet should sit at a low point created by the roof falls, not simply at the most convenient point for the downpipe. A drainage route that ignores the falls can leave standing water around upstands and details that are already demanding to waterproof.

On larger roofs, several low points and outlets may be needed. The precise layout should be determined by the roof designer and drainage specialist, taking account of the roof area, geometry and system design. For contractors, the practical task is to ensure that outlet locations are marked clearly before roof insulation, membranes, edge trims and parapet metalwork are installed.

Avoid placing outlets where water has to travel around obstacles such as rooflights, service penetrations or plant plinths. These features can interrupt falls and collect debris. If an obstruction is unavoidable, the surrounding roof layout should be considered as a whole rather than relying on a last-minute alteration to the outlet position.

Allow for the roof build-up

A roof outlet detail has to work through the full build-up, not just the finished membrane. The depth of insulation, deck type, vapour control layer, waterproofing system and any protection layer all affect how the outlet is formed.

This is especially relevant on warm roofs, where the outlet connection must accommodate the insulation depth without creating an awkward transition. On refurbishment projects, the new roof level may be higher than the existing one, affecting parapet outlet heights, gutter positions and the relationship with door thresholds or adjoining roofs.

The roofing-system manufacturer’s detail should always govern how its membrane is dressed and sealed to the outlet. Metal edge components should then be designed around that approved waterproofing detail, with suitable laps, drips and clearances rather than acting as a substitute for the roof covering.

Coordinating outlets with parapets and metalwork

A well-finished parapet relies on a sequence of components working together: roof waterproofing, upstand treatment, coping, outlet detail and the external rainwater route. If those elements are specified separately, clashes are more likely.

For a horizontal outlet, confirm the opening size and position before ordering copings or folded parapet trims. Check the direction of discharge as well. A downpipe may need to align with mullions, corners, cladding joints or window positions, and an apparently minor movement of the outlet can have a noticeable effect on the façade.

Where a project needs non-standard returns, stop ends, outlet openings or colour-matched roofline components, made-to-measure fabricated profiles can reduce unnecessary site cutting. Metal Profiles Ltd supplies aluminium roofline, coping, trim and rainwater components for projects where exact dimensions and finishing details need to be coordinated before installation.

Compatibility should also be considered wherever different metals meet. Select fixings, flashings and adjacent materials suitable for the particular roof and façade construction, and follow the relevant product guidance. This is a detailing issue as much as an aesthetic one.

Installation checks that prevent common problems

Before the roof covering is completed, check that outlets are securely positioned, free from distortion and aligned with the intended falls. Confirm that the pipe connection below or beyond the outlet is accessible and that there is no conflict with insulation, structure or finished linings.

Once the waterproofing is installed, inspect the outlet junction for a continuous, properly dressed connection in accordance with the roofing system detail. At parapets and eaves, make sure the roof trim or coping does not obstruct the intended water path. A neat metal finish is valuable, but it must preserve the drainage function.

Do not leave outlet protection until the end of the project. Construction debris, membrane offcuts and loose fasteners can quickly obstruct a drainage point. Temporary protection should not prevent the roof from draining if rain occurs before handover.

Maintenance after completion

No drainage arrangement is entirely fit-and-forget. Roof outlets, leaf guards, gutters, hoppers and downpipes need periodic visual checks, particularly after storms, nearby tree work or building works on the roof.

Clear loose debris before it compacts around the outlet. Look for signs of slow drainage, staining on the façade, overflow at the gutter or water sitting in areas that were expected to fall towards the outlet. These signs do not identify the cause on their own, but they indicate that the roof drainage detail should be inspected promptly.

Keep access routes in mind when planning the original layout. An outlet that can be reached safely and seen clearly is more likely to receive routine attention than one hidden behind later additions to the roof.

FAQs

Are parapet outlets suitable for every flat roof?

No. They are most useful where a parapet is present and an external collection point or downpipe can be positioned below. A vertical outlet or eaves gutter may be more practical on other roof forms.

Can a roof outlet be moved during installation?

It can sometimes be moved, but this may affect roof falls, waterproofing details, pipe routes and parapet metalwork. Any change should be reviewed before associated components are fitted.

Should the gutter and roof outlet be selected together?

Yes. Whether water discharges into a gutter, hopper or concealed pipework affects the outlet detail, fascia or parapet finish, and the downpipe location.

A drainage detail works best when it is treated as part of the roof edge rather than an afterthought. Establish the water route early, coordinate it with the roof build-up and façade lines, then specify the outlet and surrounding metalwork to suit the actual conditions on site.
