Gutter Union: A Complete Guide to Connecting Aluminium Rainwater Systems

A gutter union is an important component in a rainwater drainage system, helping connect two sections of gutter together to create a continuous water channel along the roof edge. Although it is a small part of the overall gutter system, selecting the correct union is essential for achieving a secure connection and effective rainwater flow.

For UK residential, commercial and industrial buildings, gutter systems need to manage regular rainfall while maintaining a clean external appearance. A properly selected gutter union helps ensure that separate gutter lengths work together as one complete rainwater system.

When planning a gutter installation, the union should be considered alongside the gutter profile, material, brackets, outlets, corners and downpipes.

What Is a Gutter Union?

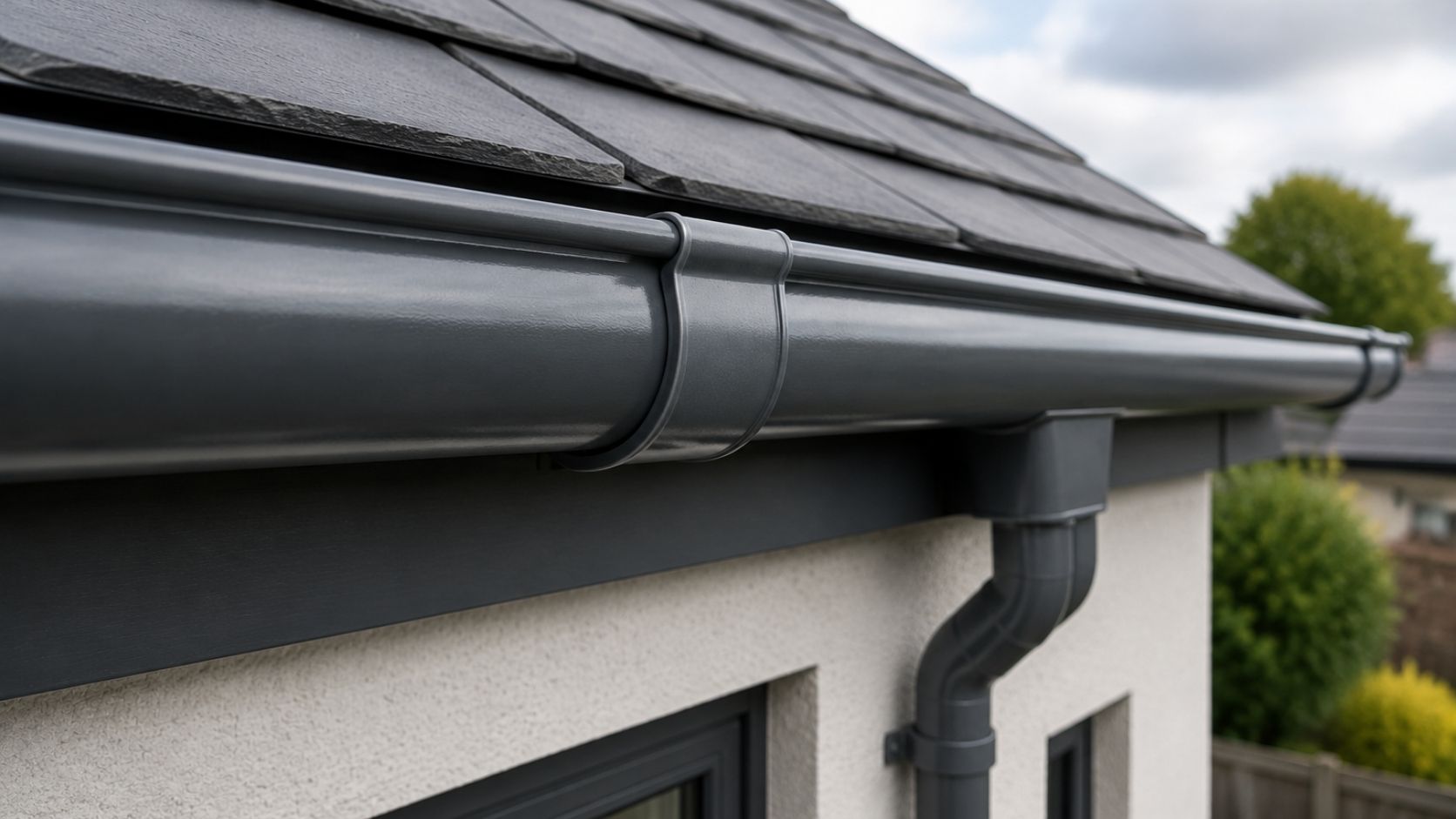

A gutter union is a fitting designed to join two gutter sections together. It creates a connection point between separate lengths while helping maintain the correct alignment of the gutter channel.

Long roof edges often require multiple gutter lengths because standard sections cannot cover the entire building elevation. A union allows these sections to be connected without creating an open gap where water could escape.

The correct gutter union depends on the type of gutter being installed. Different gutter profiles require matching fittings to ensure compatibility and a proper fit.

Why Is a Gutter Union Important?

The performance of a rainwater system depends on how well each component works together.

A gutter union helps:

• Connect separate gutter lengths
• Maintain a continuous water path
• Create a cleaner finished appearance
• Support correct gutter alignment
• Complete longer roofline installations

A poorly matched union can affect the overall system by creating alignment problems or allowing water leakage.

This is why the union should always match the exact gutter profile and material being installed.

Gutter Union in Aluminium Rainwater Systems

Aluminium gutter systems are commonly used for modern construction projects because they provide a durable metal solution with a clean architectural appearance.

A gutter union for an aluminium system needs to be selected according to the specific gutter design.

Metal Profiles Ltd supplies aluminium rainwater solutions, including different gutter profiles and matching components designed for complete roof drainage systems.

The correct union should be chosen together with the gutter section rather than separately after the main installation has been planned.

Choosing the Correct Gutter Union

Before selecting a gutter union, several factors should be considered.

Gutter Profile

The first consideration is the gutter shape.

Different gutter styles, such as box gutters and half round gutters, require different matching fittings.

Material

The union should be compatible with the gutter material. Aluminium systems require suitable aluminium-compatible fittings to maintain consistency across the installation.

Building Design

The number of unions required depends on the roof length, building shape and number of gutter sections needed.

A longer roof edge will usually require more connections compared with a smaller residential installation.

Aluminium Box Gutter Union

Box gutters are often selected for buildings where a larger capacity rainwater system is required.

Their square profile provides a clean modern appearance and can suit commercial and contemporary architectural projects.

Metal Profiles Ltd supplies aluminium box gutter systems as part of its rainwater goods range, allowing contractors to create complete aluminium gutter installations.

When installing a box gutter system, the correct union and associated fittings should be planned alongside the gutter lengths to ensure a consistent installation.

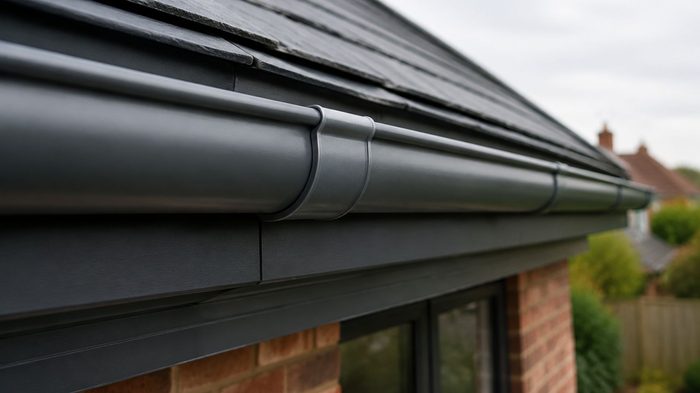

Half Round Gutter Union

Half round gutters are a traditional and widely used gutter style.

Their curved shape allows efficient water movement and suits many residential and commercial buildings.

For projects using this type of gutter, a matching half round gutter union is required to connect separate gutter sections correctly.

Metal Profiles Ltd provides aluminium half round gutter solutions with matching components for creating complete rainwater systems.

Selecting the correct union helps maintain the smooth curved profile of the gutter run.

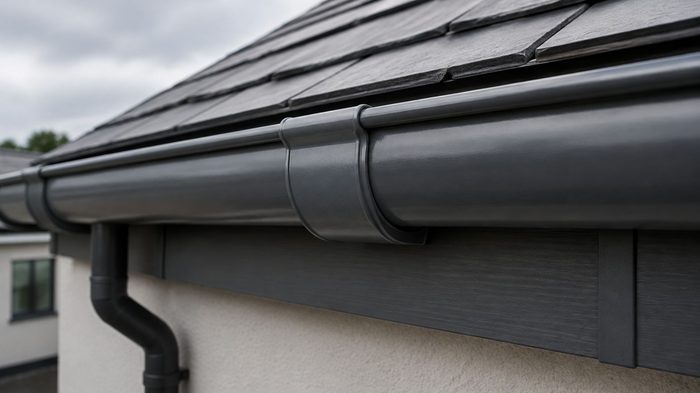

Gutter Union and Roofline Design

A gutter union does not work independently.

It forms part of a wider roofline system that may include:

• Fascia
• Soffit
• Gutter brackets
• Gutter outlets
• Downpipes
• Corners
• Stopends
• Hopper heads

The position of each component should be considered before installation begins.

For example, the fascia provides the fixing area for many gutter systems, while the downpipe determines where collected rainwater leaves the roofline.

A complete design approach helps create a more reliable rainwater solution.

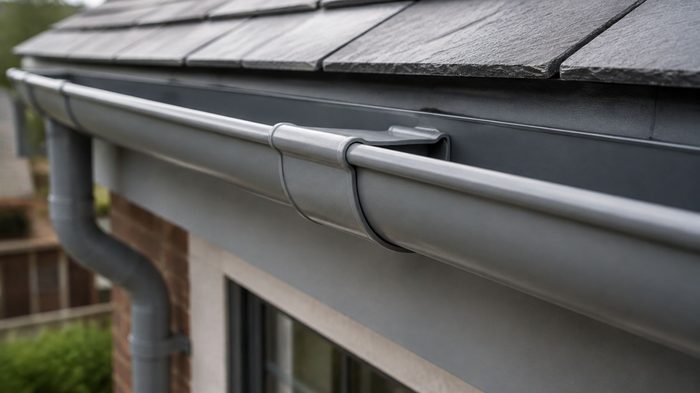

Installing a Gutter Union Correctly

Correct installation is important for long-term performance.

Before fitting a union:

• Check that both gutter sections are correctly aligned
• Ensure the gutter ends are prepared correctly
• Confirm the correct expansion allowance
• Follow the manufacturer’s installation guidance
• Check that the gutter maintains the required fall

The union should connect the gutter sections securely without restricting normal water movement.

Incorrect alignment can create unnecessary stress on the gutter system and may affect the finished appearance.

Gutter Union and Expansion Movement

Like many building materials, aluminium can expand and contract with temperature changes.

A gutter system needs to allow for this movement.

The installation method should consider expansion gaps, joint positions and the manufacturer’s recommendations.

This is particularly important on longer commercial buildings where larger gutter runs can experience greater temperature movement.

Planning the union positions carefully helps maintain the performance of the complete rainwater system.

Gutter Union and Downpipe Connections

The gutter union works together with the rest of the rainwater system to move water away from the building.

After water travels through the gutter channel, it is directed towards outlets and downpipes.

Metal Profiles Ltd supplies aluminium round downpipes and square downpipes as part of its wider rainwater goods range.

Choosing compatible gutter and downpipe components helps create a coordinated drainage system.

Common Gutter Union Installation Mistakes

Several common mistakes can reduce the effectiveness of a gutter connection.

Using the Wrong Union

A union designed for one gutter profile may not fit another system correctly.

Always select a union that matches the exact gutter type.

Poor Alignment

If gutter sections are not aligned correctly, the union may not create a secure connection.

Incorrect Positioning

The location of unions should be planned before installation, especially on long gutter runs.

Ignoring Expansion

Allowing suitable movement is important for aluminium systems.

Missing Supporting Components

A complete gutter installation requires correct brackets, outlets, corners and downpipes.

Gutter Union Maintenance

Although a gutter union is a small component, it should be included in routine roofline inspections.

Check for:

• Visible gaps
• Water leaks
• Movement between gutter sections
• Damage around the connection point
• Blockages affecting water flow

Regular gutter cleaning can also help reduce pressure on joints by preventing excessive water build-up.

The UK government highlights the importance of maintaining building elements to help prevent avoidable damage caused by water-related issues. (gov.uk)

Gutter Union for Commercial Projects

Commercial buildings often have longer roof edges and larger rainwater requirements.

For these projects, careful planning of gutter lengths, union positions and downpipe locations is essential.

Aluminium gutter systems can provide a practical solution where a durable and visually consistent rainwater installation is required.

Before installation, contractors should prepare a full material schedule covering all gutter sections and fittings.

Gutter Union for Residential Projects

Residential properties may require fewer gutter connections, but the same principles apply.

The correct union should match the gutter profile, colour and material.

Whether replacing an existing system or installing a new roofline, planning the gutter arrangement before fitting begins can help avoid unnecessary adjustments.

Complete Rainwater Goods System

A gutter union is only one part of a complete rainwater system.

Metal Profiles Ltd supplies a range of aluminium rainwater products, including gutters, downpipes and related accessories.

The complete rainwater goods range includes different gutter and drainage solutions designed for various building applications.

Selecting compatible components from the same system can help create a more consistent installation.

Choosing a Reliable Gutter Union Solution

The right gutter union depends on the gutter profile, material, building design and installation requirements.

Before ordering, confirm:

• Gutter type
• Gutter length
• Number of required connections
• Material compatibility
• Colour requirement
• Position of downpipes
• Roofline design

Careful planning helps ensure that the gutter system performs effectively while maintaining a professional external appearance.

About Metal Profiles Ltd

Metal Profiles Ltd is a UK manufacturer supplying aluminium rainwater goods, fascia, soffits, copings and architectural metalwork for residential, commercial and construction projects. Its aluminium gutter systems and associated components are designed to support complete roof drainage solutions. For product enquiries, technical information or project requirements, Contact Metal Profiles Ltd for further information.
