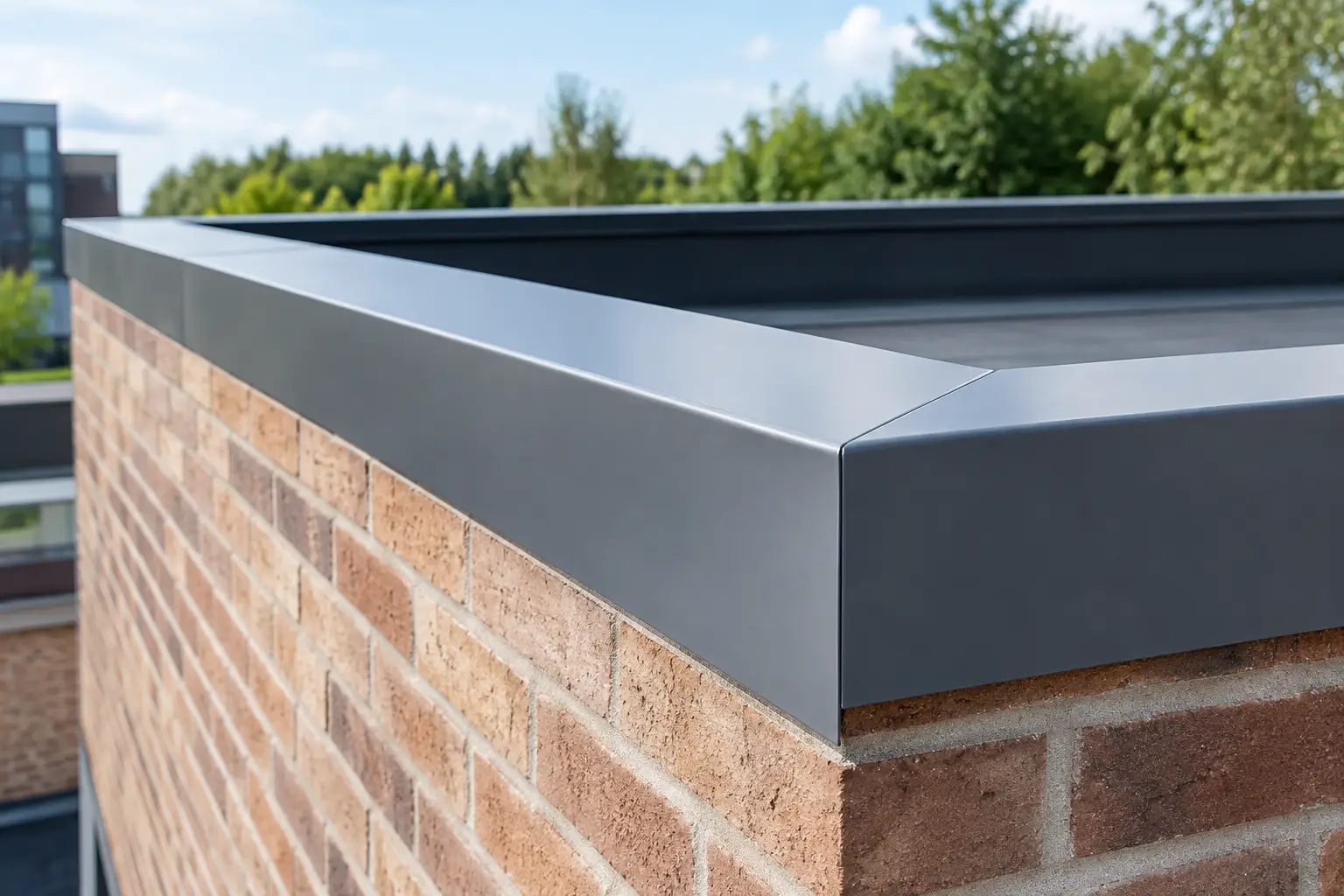

How to Detail Aluminium Copings for Parapet Walls

A coping can make a parapet look crisp and complete, but its real job is to control rainwater at one of the building envelope’s most exposed edges. Knowing how to detail aluminium copings means considering more than the visible top face. The coping width, falls, drips, joints, fixings and interfaces with the roof and wall finish all need to work together before fabrication is ordered.

For contractors and specifiers, the most reliable approach is to establish the parapet build-up first, then produce a coping profile around the finished dimensions and required weathering details. For homeowners managing a refurbishment, this is usually a point where accurate site measurement and advice from the roofing or cladding contractor are worthwhile.

Start with the finished parapet build-up

Do not size a coping from the structural wall alone. Its width must allow for the complete finished parapet, including any render, brick slips, cladding, insulation, cappings, roof membrane terminations or other finishes that form part of the design.

Measure the parapet at several points rather than relying on one dimension. Existing walls can vary across their length, particularly on renovation work. Establish the widest finished condition, identify changes in level and note returns, corners, piers and abutments. These details affect both the profile shape and how individual coping lengths will be set out.

The coping should extend beyond both faces of the parapet sufficiently to form defined drips. This overhang is not simply an aesthetic choice. It helps direct water away from the wall faces, reducing the likelihood of water tracking back beneath the coping edge or staining the facade below.

A clean drawing or marked-up sketch should show the overall width, visible face dimensions, return depths, direction of fall, joint locations and any non-standard sections. This provides a practical basis for a made-to-measure quotation and reduces uncertainty once materials arrive on site.

How to detail aluminium copings for drainage

A coping needs a deliberate fall so water is encouraged to shed from its upper surface rather than sit along the parapet. The direction of fall depends on the roof arrangement, drainage strategy and appearance required at each elevation. In many cases, it is preferable to direct water towards the roof side, but this should be considered alongside the roof waterproofing detail and the consequences of discharge at the wall face.

Avoid assuming that a flat-looking coping will perform like a genuinely level surface. Small inconsistencies in the parapet, fixing support or adjoining sections can create local low points. The fabrication profile and supporting construction should therefore be coordinated so the intended fall is maintained along the run.

Drip details are equally important. A formed drip on each exposed edge creates a break in the water path, encouraging runoff to fall clear rather than travel underneath the return. The exact return depth and drip arrangement will depend on the wall construction and finish. A deep cladding zone, for example, may require a different profile from a rendered masonry parapet.

Where rainwater is expected to run towards the roof, confirm that the roof finish and membrane termination can accommodate the detail. Copings should not be treated as a substitute for a properly designed roof-edge or waterproofing interface. The roofing contractor’s requirements need to be understood before the coping profile is finalised.

Set out joints before ordering material

Long parapet runs require joints between coping lengths. Their placement should be planned, not left to whatever length happens to be supplied. Start at prominent corners and ends, then work back through the main elevations to avoid narrow or awkward final pieces.

Joint type depends on the coping system, the profile shape and the movement expected in the supporting construction. The purpose is to allow adjacent sections to meet neatly while managing movement and maintaining a controlled weathering line. Do not rigidly lock every length together unless the specified system calls for it.

Joints should be located away from complex transitions where possible. A joint immediately beside an external corner, roof upstand, outlet or level change is harder to form and inspect than one placed in a straightforward run. Where a joint cannot be avoided near a feature, provide enough clear space for the relevant closure, sealant or joint component to be fitted properly.

Sealants can have a role at defined interfaces, but they should not be relied on to correct poor alignment, inconsistent gaps or damaged edges. Clean, accurately fabricated coping sections and properly prepared supports make for a more dependable finished detail.

Choose a fixing approach that suits the profile

Fixing arrangements must hold the coping securely while allowing the system to accommodate normal movement between materials. Aluminium, masonry, timber, steel and roof components do not all respond to temperature changes in the same way. The detail should therefore follow the fixing method recommended for the coping system and the substrate involved.

Concealed fixing is often preferred where a continuous architectural finish is required. It can keep the top face free from visible fixings, but it places greater importance on accurate support dimensions, correct clip or cleat positioning and a consistent installation sequence. Surface-fixed arrangements may be appropriate in some circumstances, provided the penetrations and weathering treatment are properly considered within the overall detail.

The supporting surface should be even, sound and free from projections that could distort the metal. Do not force a coping down over an uneven parapet, as this can introduce stress, cause visible rippling or alter the intended fall. Pack, level or correct the supporting construction as required by the project design before fitting.

Where dissimilar metals may come into contact, consider the project’s separation and corrosion-control requirements. This is particularly relevant at flashings, brackets, fixings and adjacent roof-edge components. The correct approach depends on the materials present and should be agreed within the wider project specification.

Coordinate corners, ends and changes in level

Straight lengths are only one part of a coping package. External corners, internal corners, stop ends, wall returns, stepped parapets and junctions with other envelope elements all need to be identified early.

A fabricated corner can provide a neater result than trying to mitre standard lengths on site, especially where the parapet has visible architectural importance. However, the decision depends on access, handling, the coping profile and the geometry of the wall. Site-assembled corners can be practical on simpler work, but they demand accurate cutting and careful control of the joint detail.

At a free end, use a purpose-made stop end or return detail rather than leaving an open profile. Open ends can expose the underside of the coping and spoil the finished appearance. At changes in parapet height, establish whether the coping should step, terminate or transition into another profile. These decisions are easier to resolve on a drawing than during installation.

Specify finishes with the surrounding facade in mind

Colour and surface finish should be selected alongside the roofline, window surrounds, cladding and rainwater components. A coping is a strong horizontal line, so inconsistent colours between adjoining metalwork can be noticeable even from ground level.

For project-specific work, provide the required RAL colour, profile dimensions, lengths and detail drawings when requesting fabrication. Also identify which faces will remain visible. This helps ensure that the intended finish is considered across the complete section, including returns and corner pieces.

Protect finished aluminium during transport, storage and installation. Keep sections supported, dry and separated from materials that may scratch or mark the surface. Remove debris promptly during fitting, and avoid dragging coping lengths across one another or across abrasive roof surfaces.

Check the installation before handover

Once installed, inspect the coping run from close range and from a distance. Check that falls appear consistent, joints are even, drips project clear of the wall finish and corners align with the building lines. Look beneath the returns as well as across the top face, as poorly seated sections or incomplete closures can be missed from above.

Ongoing maintenance is generally straightforward but should not be ignored. Periodic visual checks can identify trapped debris, impact damage, loose sections, deteriorated interface sealants or staining from adjacent materials. Clean the visible surface using an appropriate mild method for the finish, avoiding abrasive products that may damage the coating.

Frequently asked questions

How wide should an aluminium coping be?

The width should be based on the finished parapet, not only the structural wall. Allow for all wall and roof-edge finishes, plus the required return and drip detail on each side. Measure several points along the parapet because existing walls are not always consistent.

Should aluminium copings have a fall?

Yes, the coping detail should provide a clear route for water to shed from the top surface. The fall direction must be coordinated with the roof and wall interface rather than selected in isolation.

Can aluminium copings be made for corners and unusual wall shapes?

Profiles can be fabricated to suit project dimensions, including corners, returns and non-standard parapet arrangements. Provide accurate measurements, sketches and information about adjoining finishes so the required sections can be identified before manufacture.

Are visible fixings always necessary?

No. Some coping details use concealed clips or cleats, while others may use surface fixing. The appropriate method depends on the profile, substrate and wider weathering detail. Follow the specified system and avoid improvising fixings on site.

A well-detailed coping begins with the finished wall and roof build-up, not a nominal parapet measurement. Give the profile, joints and interfaces proper attention at the ordering stage, and the installation is far more likely to achieve the clean lines and reliable weathering the building requires.
