How to Specify Facade Trims for Lasting Detail

A façade can look straightforward on an elevation drawing, yet the difficult parts are nearly always at its edges: where cladding meets a roof, a window return, a parapet, a change in material or an uneven existing wall. When you specify façade trims properly, those junctions are resolved before materials reach site rather than being improvised during installation.

Trims are not simply finishing pieces. They protect vulnerable edges, conceal appropriate interfaces, manage visual lines and help separate different building elements cleanly. The right profile depends on the wall build-up, the surrounding materials, the required coverage and the way water is intended to be directed away from the building fabric.

Start with the junction, not the trim

The most reliable specification process begins by identifying what happens at each edge of the façade. A trim around a window opening has a different role from a roof edge flashing or a parapet coping. Although all may create a crisp external finish, their dimensions, folds and interfaces need to respond to their particular location.

For every junction, establish the substrate and finished face, the adjoining material, the depth that must be covered and the fixing zone available. On refurbishment work, this is especially important. Existing masonry, render, timber details and replacement cladding can all vary from the original drawings, so site measurement is often more useful than an assumed standard size.

A practical drawing should show the trim in section as well as elevation. The elevation establishes sightlines and colour continuity. The section confirms whether the profile provides sufficient return, cover and clearance at the point where it will be fitted.

Define the job each façade trim must do

A useful specification describes a trim by function before it describes its appearance. This avoids selecting a profile solely because it matches a visual reference.

Edge protection and termination

At exposed board edges, panel terminations and wall transitions, a trim can provide a neat termination line and protect the edge from routine exposure. The required face size should be based on the actual area that needs covering, allowing for tolerances in the background construction.

A profile that is too narrow can leave uneven edges visible after installation. One that is excessively wide can dominate the façade or interfere with nearby details. The aim is a deliberate shadow line or cover line, not a corrective strip added after the fact.

Openings, reveals and returns

Window surrounds and reveal trims need coordinated dimensions on all sides of the opening. Consider the frame position, the depth of the reveal, insulation or cladding thickness where applicable, and the visual relationship between head, jamb and sill details.

It is common for a simple front-facing surround to be specified without considering the returns. This can lead to awkward cuts at corners or a profile that cannot sit correctly against the opening. A measured, fabricated profile can be particularly useful where existing openings are irregular or where a consistent surround depth is required across several elevations.

Roofline, parapet and wall-top details

Roof trims, flashings, fascias and copings each meet different parts of the building envelope. Their selection should follow the detail being formed rather than treating them as interchangeable folded metal sections.

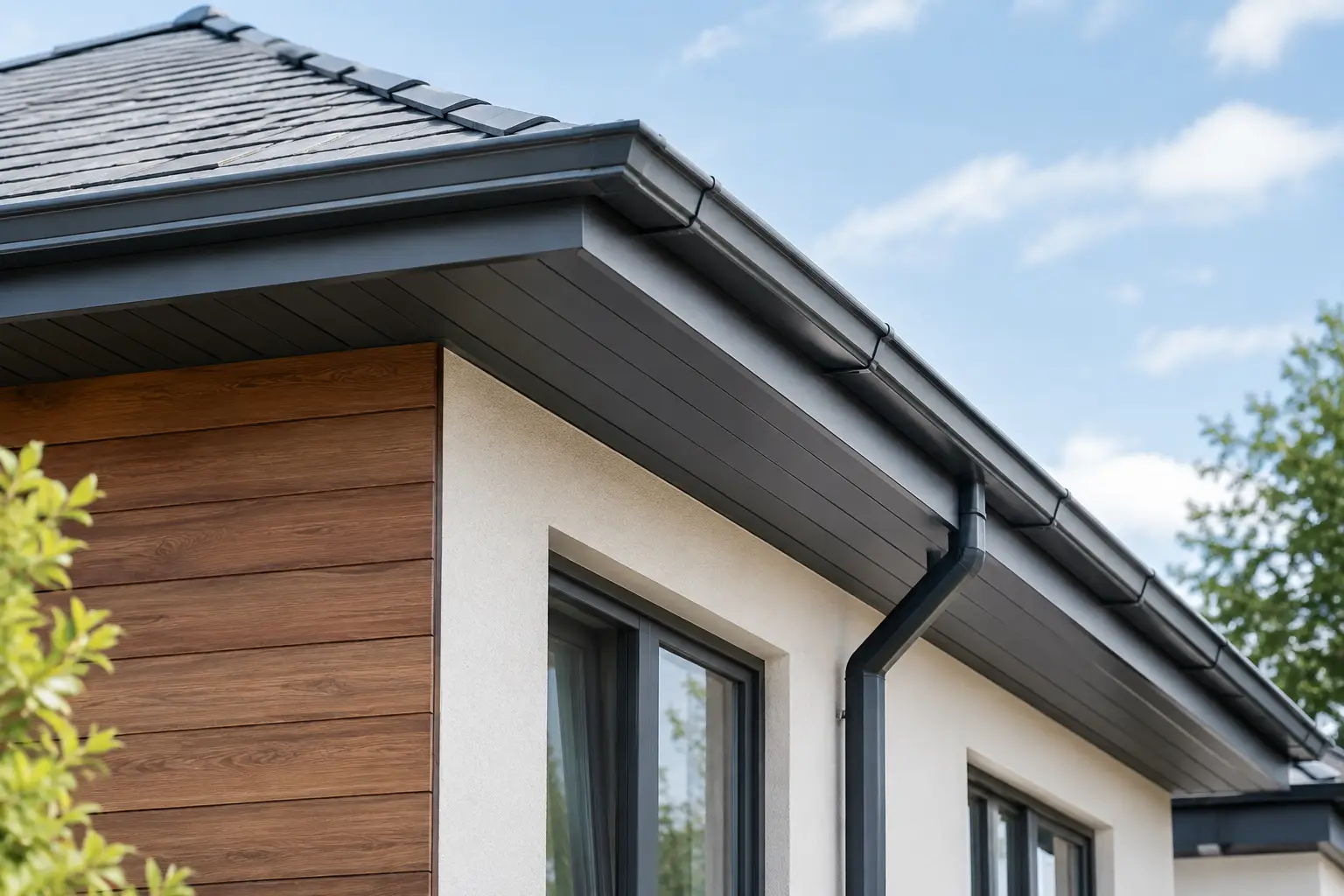

At wall tops and parapets, establish the finished width, the construction beneath and the proposed interfaces on each side. At roofline level, coordinate the trim with fascia, soffit, guttering and the roof covering. These elements should be considered together so that fixing positions, overlaps and visible lines do not conflict on site.

Choose material and finish for the application

Material choice should reflect the location, required form, surrounding materials and desired maintenance approach. Architectural aluminium is widely used for exterior trims because it can be fabricated into clean folded profiles and finished in a broad choice of RAL colours. It is a practical option for façade detailing, roofline components, window surrounds and other exterior metalwork where a precise appearance is required.

That does not mean one material or one finish suits every project. A galvanised steel angle, for example, has a different purpose from a colour-finished aluminium surround. Specify the product type and material that match the role of the component, rather than applying the same solution across every junction.

Colour should also be recorded clearly. State the RAL reference where a colour-matched finish is required, and identify whether the trim is intended to blend with cladding, window frames, roofline components or rainwater goods. Small colour differences are particularly noticeable where trims frame large areas of pale cladding or sit alongside coated aluminium windows.

Specify dimensions that can be fabricated and fitted

A trim description such as “aluminium edge trim, black” is rarely enough for quoting or installation. A useful schedule gives the fabricator and installer a clear basis for the correct profile.

Include the overall developed dimensions, visible face sizes, return depths, fold direction, material and finish. Confirm lengths, quantity, any corner pieces, mitres, stop ends and whether the profile is continuous or divided into manageable sections. Where there are internal or external corners, show how the junction is intended to look rather than leaving the treatment to site judgement.

Tolerance is part of the decision. Existing buildings are not always square, level or consistent in depth. If a trim has to cover a variable edge, allow enough face width to accommodate that variation without exposing the background. Equally, do not assume a heavily folded profile can be adjusted freely during fitting. Accurate site dimensions and a clear section drawing reduce unnecessary alteration.

For made-to-measure work, provide measured dimensions rather than nominal sizes wherever possible. Photographs of the junction and marked-up sketches can also help explain site conditions that are difficult to capture in a written description alone.

Coordinate fixings, joints and movement

The trim profile is only one part of the detail. Its fixing method, joint positions and relationship with adjacent materials affect both appearance and long-term performance.

Fixings should be selected by the project team for the background construction and the proposed trim arrangement. Their location matters visually too. Concealed or less visible fixing strategies may be preferred on prominent front elevations, while accessible fixing positions may be more practical in less exposed areas. The chosen approach must allow the section to be installed without distorting its face.

Long runs need considered joint locations. A joint placed in the middle of a prominent elevation can be more noticeable than one aligned with a window reveal, vertical panel line or other architectural break. Do not force continuous lengths where transport, handling or site access makes them impractical. Instead, plan the division of sections early and make the joints part of the elevation design.

Different materials can also move differently with changes in temperature. The detail should therefore avoid trapping trims between fixed elements or relying on a perfect butt joint to disguise movement. Discuss movement, joint treatment and fixing centres with the relevant designer, installer and fabricator before manufacture.

Detail water paths with care

Exterior trim work should not create ledges, reverse falls or open routes behind the finished face. Wherever a profile is used at a horizontal or near-horizontal junction, consider where rainwater will land and where it can travel next.

This is particularly relevant at copings, flashings, sill interfaces and roofline details. The profile needs to work with the wider weathering arrangement, not replace it. A trim that looks neat in isolation may be unsuitable if it directs water towards a vulnerable joint or obstructs the intended drainage path.

Avoid assuming that sealant will correct an unsuitable profile or an unclear junction. Sealant may form part of a detail where appropriate, but the shape, overlap and positioning of the metalwork should do the primary work of forming a sensible external interface. Final detailing should be checked against the project drawings and the requirements of the wider wall or roof system.

Write a specification that helps the site team

Clear wording prevents delays between approval, fabrication and fitting. Each trim item should have a reference, location, material, finish, profile dimensions, length and quantity. Add a drawing reference where the item forms part of a coordinated façade detail.

For a project with several visually similar profiles, use a consistent naming system. For example, distinguish between a window head trim, jamb trim, sill trim, parapet edge trim and roofline flashing rather than grouping them all as “metal trims”. This makes it easier to check deliveries and reduces the risk of a section being fitted in the wrong position.

Metal Profiles Ltd can fabricate project-specific aluminium profiles in specified sizes, shapes and RAL colours, alongside standard exterior components. Supplying a concise schedule, dimensions and details at enquiry stage gives the fabrication team the information needed to quote the correct items for the project.

Check maintenance access before sign-off

Low-maintenance materials still benefit from sensible detailing. Consider whether dirt can collect on wide horizontal faces, whether joints can be inspected if needed, and whether gutters or rainwater components can be accessed without removing adjacent trim sections.

Use cleaning methods appropriate to the finish and avoid abrasive treatment that could mark coated surfaces. Periodic visual checks are worthwhile after severe weather, building works or alterations to nearby roof and drainage components. The purpose is not intensive maintenance, but early identification of loose fixings, impact damage or debris around adjoining details.

Frequently asked questions

Are façade trims only for cladding projects?

No. They are used across roofline upgrades, window surrounds, parapet details, masonry renovations and mixed-material elevations. The important point is that the profile is selected for the junction it must finish.

When is a made-to-measure trim preferable?

A made-to-measure profile is often preferable when existing dimensions vary, a particular cover depth is needed, several folds must align with a wall build-up, or a standard section would create an awkward visual result.

Should trim colour always match the façade?

Not necessarily. Matching can create a restrained finish, while a contrasting colour can emphasise window openings, parapets or horizontal bands. The choice should follow the wider elevation design and be recorded with a clear RAL reference.

The best trim details tend to look uncomplicated once fitted. That result comes from doing the detailed work first: measuring the junction, defining the function, allowing for site realities and specifying a profile that can be fabricated and installed with confidence.
