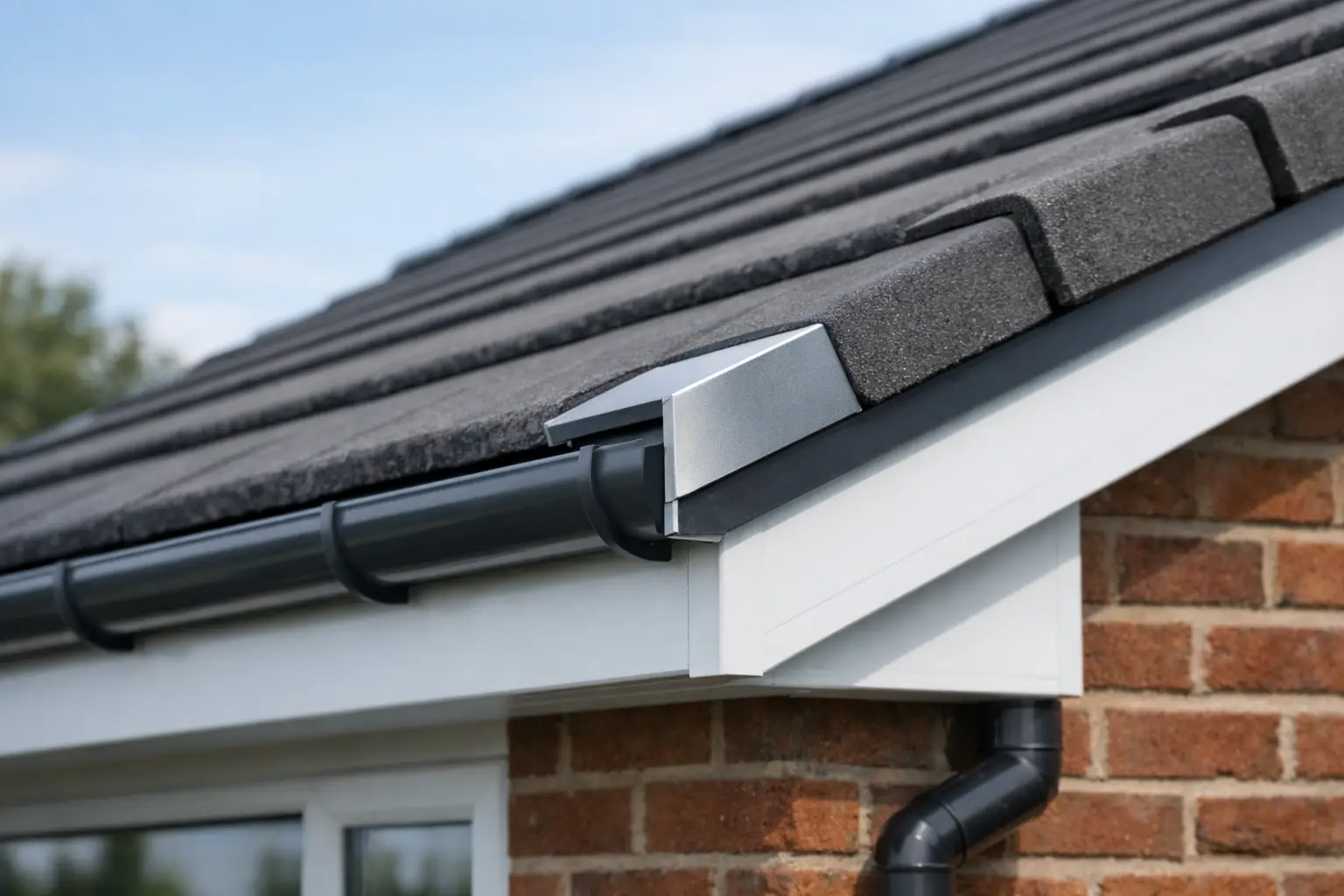

Metal Verge Trim for Clean Roof Edge Detailing

A roof verge is a small area in plan, but a highly visible and exposed part of the roofline. Where the roof covering meets a gable end, metal verge trim can provide a neat, defined edge while helping to protect the underlying construction from driven rain, debris and day-to-day weathering. The right profile needs to suit the roof build-up, the covering, the substrate and the intended visual finish – not simply match a colour chart.

For contractors, architects and homeowners, the main consideration is usually straightforward: the trim must finish the verge cleanly without interfering with the roofing system. That means establishing the required cover, return dimensions, fixing method and junction details before fabrication or ordering.

What is metal verge trim?

Metal verge trim is an edge flashing or folded profile fitted along the sloping edge of a pitched roof at the gable. It can conceal exposed roof edges, provide a crisp visual line and help manage the transition between the roof covering and adjacent wall, fascia or bargeboard details.

The term can cover several profile types. A simple folded angle may be suitable where a modest cover is needed over a prepared edge. More developed profiles may include drip returns, deeper legs, folds for stiffness or dimensions shaped around a particular roof finish. On refurbishment work, a trim may also be used to improve the appearance of an existing verge, provided the condition of the structure and roof covering has been assessed first.

A verge trim should not be treated as a universal solution. Roof tiles, slates, profiled sheets and other roof coverings all create different junctions. The trim has to work with the roofing system rather than force an unsuitable detail over it.

Why verge detailing deserves attention

Verge edges receive direct exposure to wind-driven rain and are often more noticeable from ground level than other roof details. An uneven line, poorly finished cut edge or mismatched material can detract from an otherwise well-executed elevation.

A properly selected metal trim brings consistency to this junction. It can cover irregular edges, create a sharper gable line and provide a durable external finish with less need for routine decoration than many painted timber details. Where a project uses metal fascias, soffits, copings or rainwater components, coordinating the verge detail can also make the roofline appear considered rather than pieced together.

Function still comes first. The trim must allow the roof covering to perform as intended, avoid trapping water and accommodate the site-specific construction. Appearance is most effective when it follows a sound detail.

Choosing the right profile for the roof

The starting point is to understand what the trim needs to cover. Measure the edge construction, including the thickness of the roof covering, battens where relevant, board edges and any existing bargeboard or fascia arrangement. It is also useful to record the roof pitch and the length of each verge run, as these affect both profile geometry and the number of joints required.

Cover and return dimensions

The face of the trim needs sufficient coverage to conceal and protect the intended edge, while the return must sit comfortably against the supporting surface. A profile that is too shallow can leave cut edges exposed. One that is excessively deep may look heavy, conflict with tiles or slates, or become harder to fix neatly.

Where the edge is not straight or the existing substrate is uneven, a made-to-measure profile can be preferable to trying to adapt a standard folding on site. Accurate site dimensions are particularly valuable on renovation projects, where original details are rarely uniform.

Material and finish

Material selection should reflect the application, surrounding components and desired finish. Aluminium is commonly selected for exterior architectural trims because it offers a lightweight, corrosion-resistant option with a clean folded appearance. Other metals may be appropriate where they are required to match an existing roof or a specified construction detail.

The finish should be chosen as part of the wider elevation scheme. A RAL colour can help coordinate verge trims with fascias, soffits, gutters, window surrounds or cladding features. Dark finishes can create a pronounced roofline, while lighter colours may reduce visual contrast against render or masonry. Colour should not be the only deciding factor, however. The profile shape and fixing detail have a greater influence on whether the installation remains tidy over time.

Lengths, joints and end details

Long, uninterrupted runs generally give the cleanest appearance, but practical transport, handling and roof access may determine the supplied lengths. Plan joints before installation rather than placing them wherever a length happens to end. They should be positioned and detailed to suit the direction of water run-off and the profile design.

The eaves end and ridge end also need attention. A trim that stops abruptly can leave a weak visual finish or expose part of the roof edge. These terminations may require folded returns, closures or coordination with adjoining flashings, depending on the roof construction.

Installation context: prepare before fitting

Metal verge trim is only as reliable as the surface and junction behind it. Before fitting, the installer should check that the supporting board, bargeboard or other substrate is sound, aligned and suitable for the proposed fixing method. Loose coverings, decayed timber and uneven edges should be addressed before the trim is added.

Fixing positions need to be planned so that they provide secure restraint without distorting the metal face. Over-tightening can create visible dimples, particularly on broad flat sections. Fixings should be compatible with the trim material and the substrate, and placed in accordance with the project detail or product guidance.

Allowances for movement are also worth considering. Metal changes dimension with temperature, especially across longer lengths. The detail should not lock a profile so tightly that normal movement causes oil-canning, strained joints or visible buckling. The appropriate approach depends on profile length, material, exposure and the fixing arrangement.

At the same time, avoid relying on sealant to correct a poor fit. Sealant may form part of a designed junction where suitable, but it is not a substitute for correct overlaps, falls, coverage and mechanical fixing. Good verge work is based on folded geometry and careful setting out.

Coordinating the verge with the wider roofline

A verge rarely stands alone. It meets roof coverings at one side and usually connects visually with eaves components, wall finishes or parapet details. Looking at these junctions together reduces the chance of awkward gaps, clashing colours or last-minute site modifications.

For example, a gable roof with aluminium fascia and soffit boards may benefit from a verge profile with a comparable face depth and finish. On a rendered gable, the trim should be considered alongside the final wall finish thickness so that the edge does not look recessed or overly proud. Where rainwater goods are close to the verge, clearances and fixing access should be established before work begins.

For architects and specifiers, a simple profile drawing with key dimensions can prevent confusion between trades. It should identify the roof covering, the substrate, trim material and finish, expected overlaps, fixing zones and adjacent components. This is particularly useful when several roofline products are being colour matched or fabricated for one project.

Common problems to avoid

Many verge trim issues begin with incomplete measurement. Measuring only the visible face can overlook the return required behind the edge, resulting in a profile that cannot be fixed properly. Equally, ordering to the roof slope without allowing for formed ends, laps or site trimming can leave an inconvenient shortfall.

Another common problem is fitting trim over an unresolved roofing defect. A metal profile can improve the outward appearance of a verge, but it cannot correct failed underlay, insecure roof coverings or a deteriorated substrate. Resolve the roof detail first, then use the trim as the finishing element it is intended to be.

Finally, avoid mixing finishes without viewing them in context. A colour that appears suitable in a sample can look markedly different beside brick, render, roof tiles and window frames in natural light. Where visual consistency matters, consider the complete roofline palette before confirming the finish.

Maintenance and inspection

Metal verge trims generally need limited routine attention, but they should be included in periodic external inspections. Check for accumulated debris at junctions, loose fixings, impact damage and movement around laps or terminations. After severe weather, inspect the roof edge from a safe position for anything visibly displaced.

Cleaning requirements depend on the material, finish and local environment. In most cases, gentle cleaning with clean water and a soft cloth is preferable to abrasive methods that could mark the surface. Any cleaning product should be suitable for the specific coating or metal involved.

If an adjacent roof covering is repaired or replaced, revisit the verge detail as part of that work. A trim can remain sound while the interface around it changes, particularly where new tile thicknesses, battens or flashing arrangements are introduced.

FAQ: metal verge trim

A well-resolved verge is a modest detail with a noticeable effect on the finished building. Establish the roof build-up, measure the edge accurately and select a profile that belongs to the wider roofline design. For project-specific dimensions and folded profiles, Metal Profiles Ltd can support enquiries with practical fabrication-led guidance.

For metal verge trim projects, the most useful fabrication information includes the roof covering type, edge build-up, visible face dimensions, returns, folded ends, fixing method, joint positions and required finish before manufacture begins. The Metal Profiles Ltd profile on NBS Source provides a manufacturer reference when reviewing architectural metalwork information, while the Metal Profiles Ltd Google Business Profile provides current public company information for bespoke roofline enquiries.
