Window Surround Profiles Guide for UK Projects

A window opening can look unfinished even when the window itself has been fitted correctly. The window surround profiles guide below focuses on the external trims and cills that create a clean edge between the frame, wall finish and weathering details. For contractors, specifiers and homeowners, the right profile is not simply a decorative addition. It needs to suit the construction build-up, accommodate sensible installation tolerances and direct water away from vulnerable junctions.

What window surround profiles do

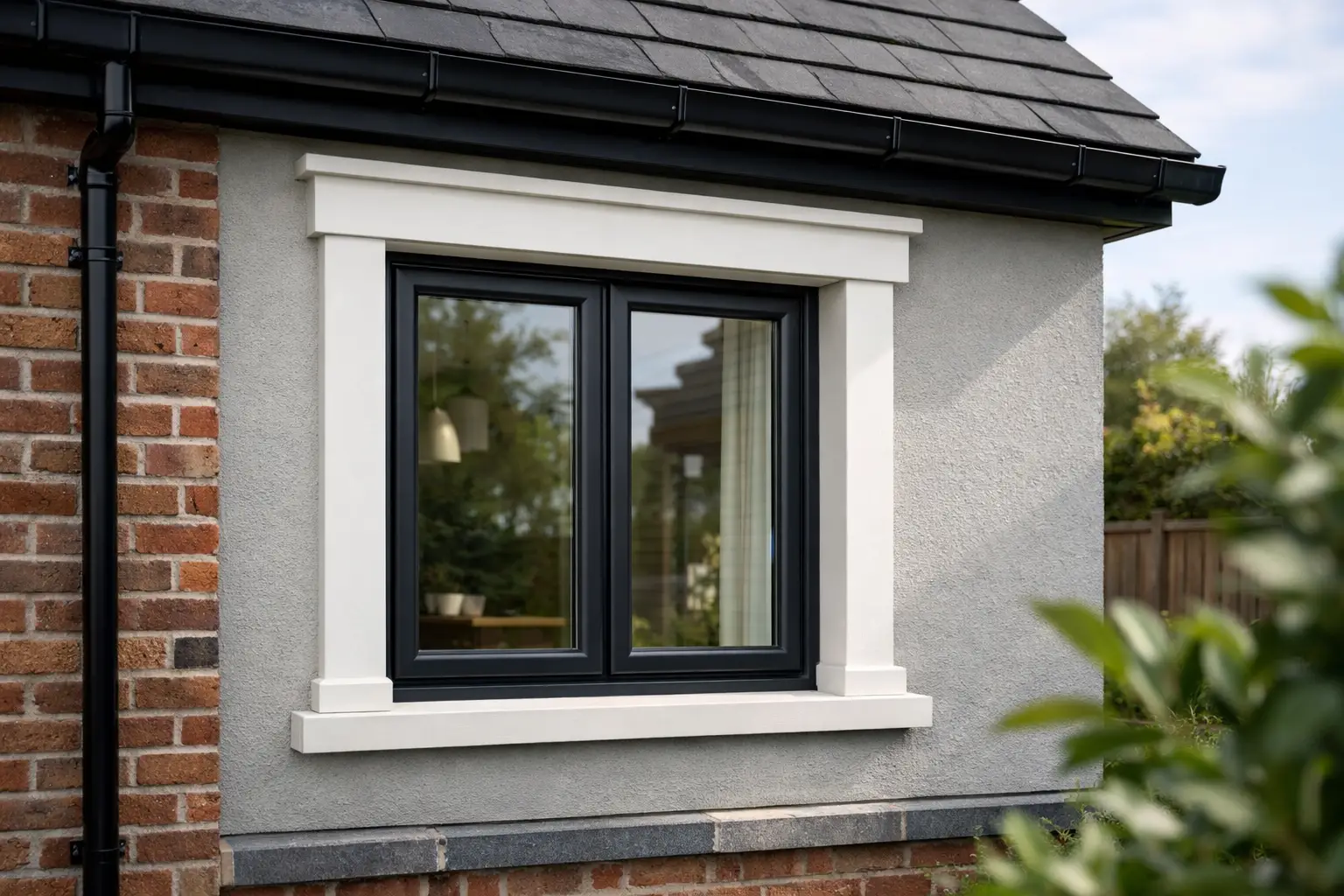

Window surround profiles are formed sections fitted around an external window opening. Depending on the detail, they may cover exposed edges of render or cladding, form a visual frame around the window, finish the head and jambs, or provide a projecting cill below the frame.

Their role depends on the profile and how it is integrated with the wider wall construction. A folded aluminium trim, for example, may provide a crisp, consistent line over an uneven substrate or cover a cut edge in a façade finish. A cill profile may be designed to project beyond the wall face and incorporate a drip detail. These are separate functions, and a surround should not be assumed to provide weather protection on its own without the correct membrane, flashing, sealant and cavity details behind it.

The visual benefit is equally useful on renovation work. A well-proportioned surround can make replacement windows sit more deliberately within a rendered elevation, brick opening or cladded façade. On commercial schemes, repeated profiles can help maintain a consistent detail across many openings.

Choose the profile around the wall build-up

The starting point is the wall finish, not the preferred appearance. Before selecting a profile, establish where the window frame sits in relation to the structural opening, insulation, cavity, render, cladding or masonry face. The projection and return dimensions must work with these positions.

Jamb, head and cill details

Jamb profiles run vertically at either side of the window. They are often used to cover a raw edge, define a reveal or form a shadow line. Head profiles sit above the window and need particular care where water running down the wall could reach the top of the frame. The profile must allow the intended flashing and drainage arrangement to function rather than obstruct it.

Cill profiles finish the lower edge. They usually need enough outward projection to clear the wall face below and should be considered alongside the window manufacturer’s own cill or drainage arrangement. A cill that is too shallow can leave the façade beneath exposed to repeated run-off. One that projects too far may look heavy and can complicate the fixing method.

Where a surround is intended to create a framed effect, the cill may align with the jambs, sit proud of them or be set back deliberately. There is no single correct appearance. The decision should reflect the elevation, the depth of the reveals and the practical route for water.

Rendered walls and external insulation

Rendered façades need clean terminations because cut edges and local cracking can be highly visible. A profile may conceal the edge of a render system, but it must be planned with the render thickness and reinforcement details in mind. Attempting to add a deep trim after the render is complete can lead to oversized sealant joints or awkward packing behind the metal.

External insulation creates another layer to account for. Measure from the finished wall face, rather than the original masonry, and confirm the fixing background. A trim fixed only to a finish layer may not provide the support needed for its size and exposure. The installation design should be agreed by the project team responsible for the wall system.

Brick, stone and cladding

On brickwork, a surround can be used as a feature band or to create a sharp contrast around a recessed frame. Dimensions should allow for mortar joints, surface variation and any required movement at the junction. On stone or textured masonry, a generous return can help conceal inconsistencies, but it should not be used to mask a poorly prepared opening.

Cladding requires particularly careful co-ordination. Profile returns, joint directions and drainage paths should all work with the cladding system. Do not close or bridge a ventilated cavity with a surround unless the detail has been designed for that purpose.

Aluminium, finish and profile thickness

Aluminium is widely used for external surround profiles because it can be folded into precise shapes, finished in a broad range of colours and maintained with routine cleaning. It is a practical choice where a slim, crisp architectural edge is required, particularly for fabricated trims made to suit a specific opening.

Material selection still depends on the application. The profile’s gauge, folds, fixing centres, unsupported spans and substrate all affect how it performs in service. Wider flat faces may need additional folds or support to avoid visible distortion. Very sharp external corners can also be more vulnerable to site damage during handling and installation.

Powder-coated finishes are commonly chosen to coordinate with window frames, fascia, cladding or other roofline details. When specifying a RAL colour, consider the overall elevation rather than viewing a swatch in isolation. Dark colours can make a surround appear narrower and more recessive, while pale finishes may emphasise its projection and any variation in surrounding wall surfaces.

For a close colour match, confirm the finish and sheen required for the full package of external metalwork. Colour names alone are not always enough, especially where profiles are being supplied at different stages of a project.

Measuring window surrounds accurately

Ordering by window size alone is rarely sufficient. Measure the finished opening and record the construction around it. This gives the fabricator the information needed to form returns, projections and junctions that suit the actual site condition.

Take width and height measurements in more than one place. Openings in older buildings are often out of square, and newly formed openings can still vary once render, insulation or cladding is installed. Record the largest and smallest measurements, plus the depth from the frame face to the finished wall face.

Also establish whether the surrounds will be supplied as separate head, jamb and cill pieces, or as pre-formed corners and assemblies. Separate lengths can be easier to handle and may simplify adjustment on site, but they introduce more joints. Formed corners offer a neater visual result where dimensions are controlled, although transport, lifting and site access need consideration.

A useful enquiry or fabrication schedule normally includes the following details:

• opening width and height, measured from the intended finished faces
• reveal depth and the required profile projection beyond the wall
• wall finish and its approximate thickness
• window frame position, including any existing cill or drainage features
• required colour, finish and visible face direction
• whether corners, stop ends, joints or fixing holes are needed.

Photographs of the opening, including a wider elevation view, can prevent misunderstandings where the construction is complex. For made-to-measure work, a simple annotated sketch is often as valuable as a list of dimensions.

Plan joints, movement and fixings before fabrication

Metal profiles expand and contract with temperature changes. Long, continuous lengths should therefore not be treated as rigidly fixed decorative strips. The detailing needs room for movement, especially on dark-coloured profiles in exposed locations.

Joint positions should be intentional. They can be located at natural breaks, behind cover pieces or at changes in level where possible. A joint should not create a route for water to track behind the profile. The required sealant type, backing material and joint width will depend on the surrounding materials and the installation design.

Fixings also need planning. Visible fixings may be acceptable on utilitarian elevations but can distract from a clean architectural surround. Concealed fixing methods can improve appearance, yet they often require suitable backing, formed returns or an installation sequence that is established early. Avoid over-tightening fixings, as this can distort thin metal and restrict movement.

If profiles are installed close to other metals, consider material compatibility and prevent arrangements that may trap moisture at the contact point. This is a practical detailing issue best resolved before products arrive on site, rather than during fitting.

Installation checks that avoid common problems

Surround profiles are usually one part of a junction, not a substitute for correctly installed windows or wall weathering. Before fitting, check that the frame is level and secure, any required flashings or membranes are in place, and the wall surface is sufficiently even for the intended fixing method.

Dry-fitting is worthwhile for folded profiles, especially at mitres and corners. It confirms that returns sit correctly and reveals where a wall face is not true. Minor adjustment may be possible, but forcing a profile into position can create a wavy finish or open joints elsewhere.

Keep protective film in place during handling where supplied, but remove it at the appropriate stage rather than leaving it to weather. Swarf, drilling debris and sealant residue should be cleared promptly to protect the finished surface. If cutting is required on site, use a method suitable for coated metal and treat cut-edge appearance as part of the finished detail.

Cleaning and ongoing care

External aluminium trims benefit from periodic washing with clean water and a mild detergent where needed. This removes general atmospheric dirt, especially beneath cills and around joints where debris can collect. Avoid abrasive pads and aggressive cleaning products that may mark the finish.

During routine property maintenance, inspect sealant joints, fixings and areas where profiles meet other materials. Small defects are easier to address before repeated wetting affects the wall finish behind. Surrounds near gutters, downpipes or roof drainage outlets may need more frequent checks because concentrated water can stain façades and reveal faults in adjacent details.

Frequently asked questions

Can window surround profiles be fitted after replacement windows?

Often, yes, provided the finished wall face, frame position and surrounding weathering details allow sufficient space for the profile and its fixings. Measure the completed opening rather than relying on the original window dimensions.

Should a window surround match the window frame colour?

It can, but it does not have to. Matching creates a coordinated appearance, while a contrasting finish can emphasise the opening. Consider other visible components on the elevation, including fascia, soffits, gutters and cladding trims.

Are standard profiles always suitable?

Standard sections can suit straightforward openings. Where reveals, wall finishes, projections or corner details differ from the norm, a made-to-measure folded profile may produce a cleaner fit with fewer on-site compromises.

A well-detailed surround starts with accurate site information and a clear understanding of the wall build-up. For project-specific folded trims, Metal Profiles can help translate measured dimensions, required returns and chosen finish into profiles that are practical to fabricate and straightforward to set out on site.
