Commercial Parapet Refurbishment Example

A parapet can look like a minor edge detail from ground level, yet it has a major influence on how a flat or low-pitched commercial roof performs and presents. This commercial parapet refurbishment example shows how a tired masonry parapet can be assessed, repaired and finished with purpose-made metal components, without treating the coping as an afterthought.

The scenario is representative rather than a fixed specification. Every building requires its own survey, roof assessment and detailing decisions, particularly where existing membranes, movement joints, access restrictions or concealed drainage are involved.

The starting point: a weathered office roofline

The project concerns a two-storey commercial office building with a masonry parapet around part of its roof perimeter. The roof had been renewed previously, but the parapet edge had received only local repairs. Its old coping units were uneven, several joints had opened, and staining on the face of the wall suggested water was regularly running back towards the masonry rather than being directed clear of it.

From the street, the building also had an inconsistent roofline. Patch repairs and differing coping sections created a visibly uneven finish. The client wanted to address the deteriorating edge protection while improving the appearance of the elevation in a colour that worked with the window frames and existing cladding.

This is a common commercial refurbishment position. The visible defect may be cracked coping joints or staining, but the right scope depends on what is found at roof level. A replacement coping cannot compensate for failed roof-edge waterproofing, loose masonry or an inadequate substrate.

Survey before selecting the parapet coping

The contractor began by recording the parapet dimensions at intervals rather than relying on one measurement. Older walls are rarely perfectly straight or consistently thick. Measurements included wall width, changes in level, returns, corners, upstands, roof membrane termination and the relationship between the parapet and nearby rainwater outlets.

The survey also identified areas requiring masonry repair before metalwork could be fitted. Loose pointing, damaged brickwork and unstable coping beds needed attention first. Where the parapet top is uneven, the installation approach must account for it. Forcing a straight metal coping over pronounced high spots can leave unsupported areas, poor fixings or an untidy line.

Access mattered as much as dimensions. The roof was reachable through a controlled internal access route, avoiding the need to carry long components through public areas. The installation team still needed a clear plan for handling, storing and protecting finished lengths on the roof. Pre-finished metal profiles can be damaged by careless stacking or dragging across abrasive surfaces.

Questions that shape the detail

At this stage, the project team needed clear answers to practical questions. Is the parapet intended to have a symmetrical coping, or does the roof build-up require an offset arrangement? Where will joints fall, and can they be kept away from prominent corners or drainage points? How will external corners, internal corners and stop ends be formed? Will the chosen profile provide an appropriate overhang to throw water away from the wall face?

These are detailing questions, not cosmetic extras. A coping profile needs to suit the actual wall construction, roof-edge arrangement and intended fixing method. The correct solution may be a standard profile in a suitable size, a fabricated variation, or a more specific made-to-measure design where the parapet geometry demands it.

Commercial parapet refurbishment example: the proposed solution

For this scheme, the chosen approach was to replace the fragmented coping arrangement with colour-finished aluminium coping fabricated to suit the measured parapet widths and the required returns. Aluminium was selected for its suitability as an exterior architectural metal and its clean, consistent appearance across long roofline runs.

The finish was specified to complement the building’s dark grey window frames. Matching the roofline to adjacent façade elements gave the refurbishment a deliberate architectural result rather than the appearance of isolated maintenance work. Colour should be agreed early, particularly where a client is matching existing RAL-coloured components, as apparent shades can vary with surface texture, light and neighbouring materials.

The coping design incorporated formed corners and properly planned end details. This reduced the need for improvised site cutting at highly visible locations. Straight lengths can be practical to handle and economical to fabricate, but corner treatment is where a parapet refurbishment often succeeds or fails visually. A neat corner also helps the installer maintain a consistent line and joint arrangement.

The scope did not assume that one material would solve every element. The roof membrane termination, any flashings, rainwater outlets and wall repairs were treated as connected parts of the roof-edge detail. Aluminium coping protects and finishes the parapet top, but adjacent roof waterproofing and drainage provisions must still be correctly designed and installed for the particular roof system.

Fabrication information that avoids site delays

Before fabrication, the contractor issued a clear schedule showing each elevation, length, wall width, colour, corner type and quantity. Components were labelled against the drawing references so installers could identify each item without repeatedly measuring or trial-fitting multiple lengths.

For commercial work, this schedule is particularly useful where the parapet changes level or runs around plant areas. A profile intended for one elevation may not suit another if wall widths differ. Recording those variations up front is more reliable than assuming a nominal dimension applies around the full roof perimeter.

Allowance was also made for joints and movement in accordance with the selected installation system and manufacturer guidance. Long metal runs should not be treated as a single rigid strip. The joint design, fixing arrangement and sequencing need to accommodate normal movement while maintaining a tidy, weather-conscious finish.

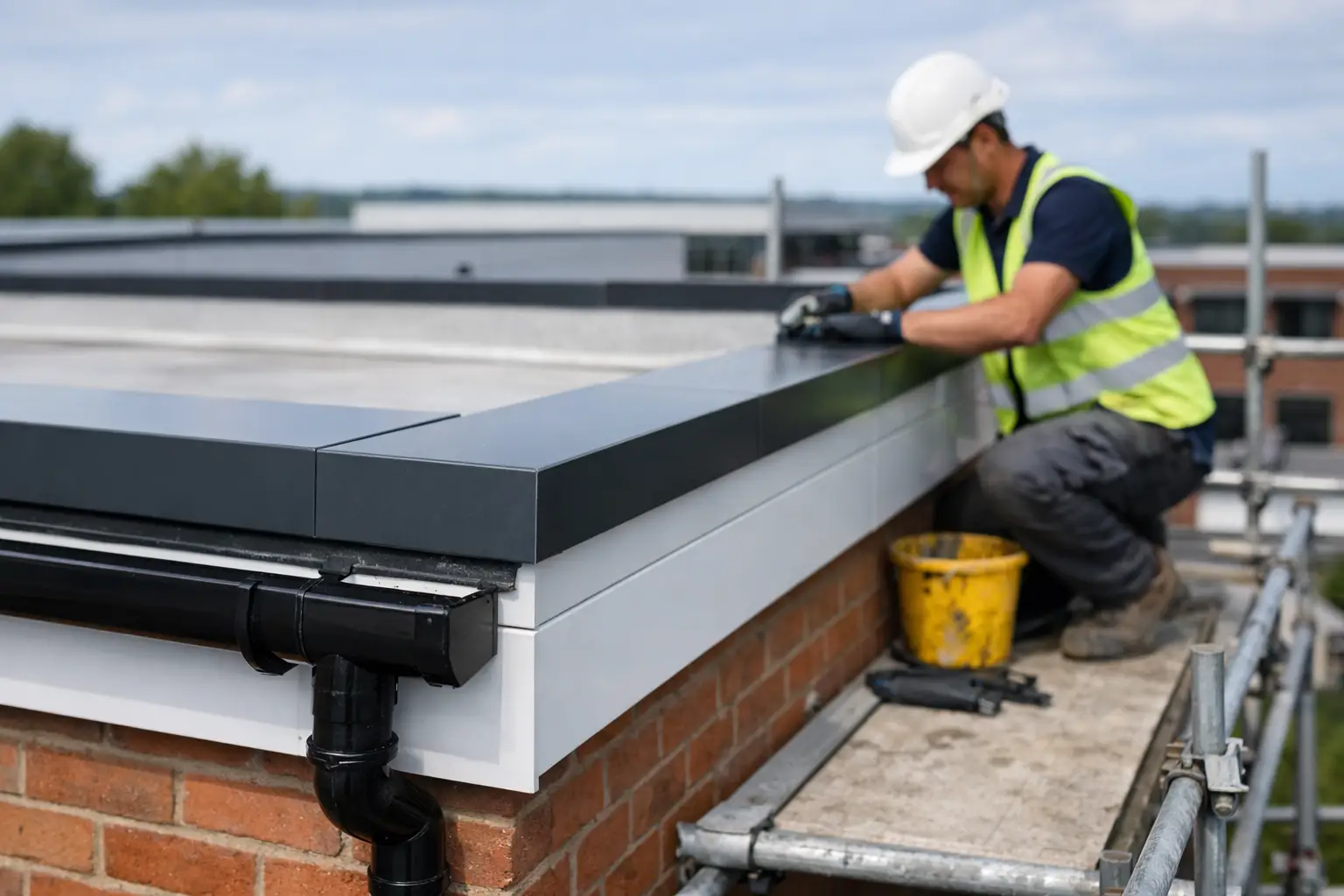

Installation context: protecting the roof and the finish

Once preparatory masonry works were complete, installation began with checks to confirm the parapet top was clean, sound and ready to receive the coping system. Any debris trapped beneath the new profile could affect the seating of the component or create local pressure points.

The team set out from the most visible corner, checking alignment regularly rather than allowing small discrepancies to accumulate over a long run. Corners and returns were fitted in the planned sequence, followed by straight lengths. Fixings were installed as required by the selected system, with care taken not to distort the metal face or damage the applied finish.

Roof protection was a practical concern throughout. Tools, offcuts and components were kept off vulnerable membrane areas where possible, and protective materials were used during handling. Finished profiles should remain protected until the surrounding works are complete, especially where other trades are still moving materials across the roof.

Where profiles required cutting or adjustment, exposed edges and swarf needed prompt attention. Metal swarf left on finished surfaces or roofing can cause staining and spoil an otherwise clean installation. Good housekeeping is not a decorative detail. It protects the new work and makes final inspection more meaningful.

What changed once the work was complete

The completed parapet had a continuous, controlled roofline rather than a patchwork of ageing coping sections. The formed corners and consistent colour gave the building a more coherent appearance from ground level, while the overhanging coping arrangement helped direct rainfall away from the vulnerable top and face of the parapet.

Just as significantly, the refurbishment made future maintenance easier to organise. A clearly detailed roof edge is simpler to inspect than a series of ad hoc repairs. During planned roof visits, the facilities team can check the coping runs, joints, fixings where visible, adjacent flashings and drainage outlets as part of one routine.

The project also demonstrated a useful commercial lesson: parapet works are most effective when treated as part of a roof-edge package. Replacing only the visibly damaged top surface may be reasonable for a small local defect. Where the parapet is repeatedly staining, the coping is deteriorated across several elevations, or roof works are already planned, a coordinated refurbishment generally gives a more consistent result.

Maintenance after parapet refurbishment

Aluminium roofline components are low-maintenance, but they still benefit from periodic observation. Maintenance should focus on removing trapped debris, identifying impact damage, checking for loose or damaged joint details, and ensuring nearby outlets are not obstructed. Cleaning methods should be suitable for the finish and should avoid abrasive materials that can mark coated surfaces.

Any signs of water tracking, damaged sealant where used within the system, movement at joints or changes in the surrounding roof finish should be investigated early. The source may sit beside the coping rather than beneath it, which is why inspection should consider the full roof-edge detail.

For contractors and specifiers, the practical value lies in getting the survey, dimensions and junctions right before fabrication. A well-considered parapet coping does more than create a straight line against the sky. It gives a commercial building edge protection that looks intentional, can be maintained sensibly and fits the realities of the site.

A refurbishment coping schedule is most useful when surveyed wall widths, changes in level, corner and stop-end requirements, joint positions, coating references and adjoining roof details are recorded before manufacture. For specification research, the Metal Profiles Ltd profile on NBS Source provides a separate manufacturer reference, while the Metal Profiles Ltd Google Business Profile can be used to check current public company information before discussing a commercial parapet requirement.
