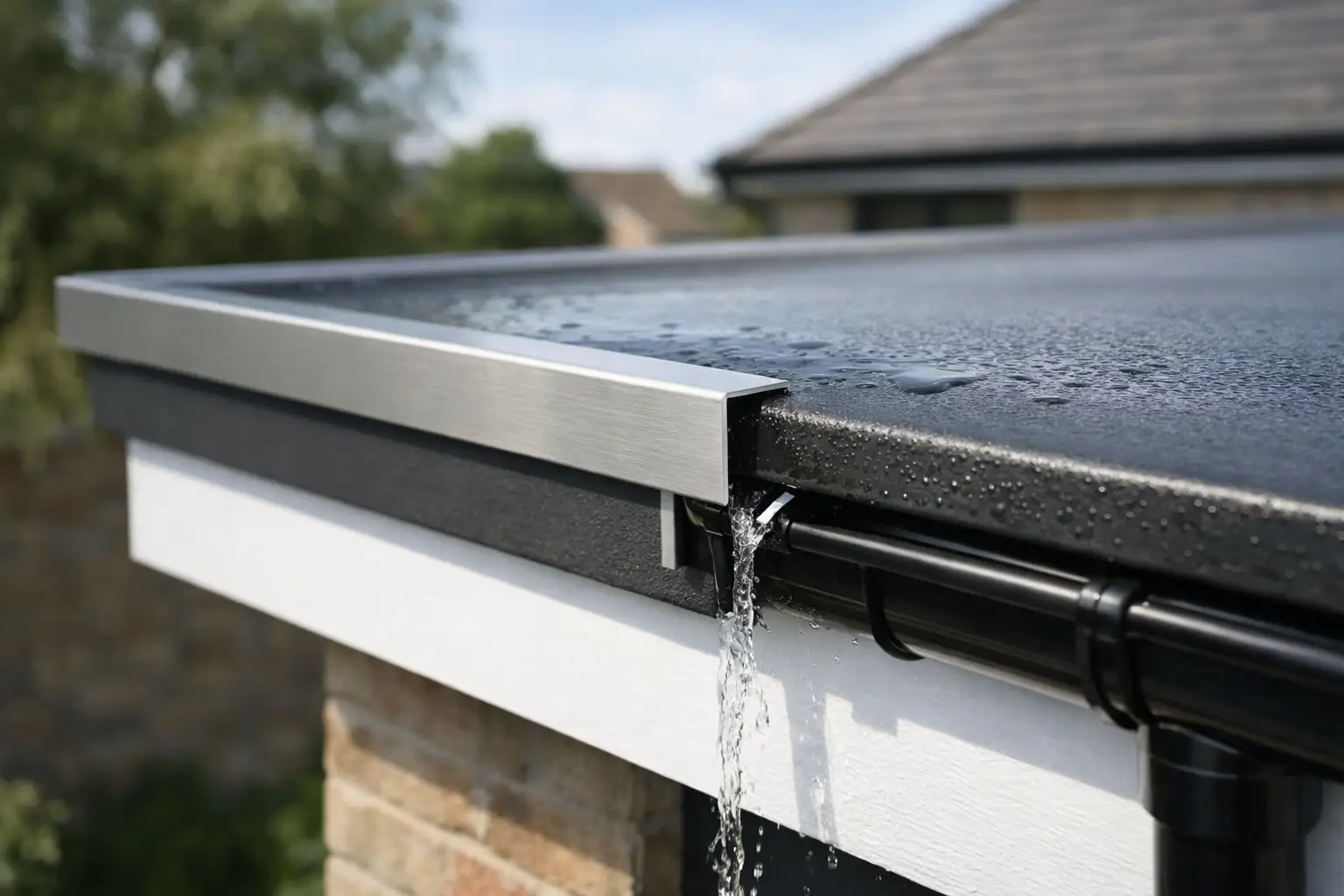

How Flat Roof Drainage Edge Trim Protects Edges

A flat roof rarely fails at its broad central area first. The vulnerable points are usually at the perimeter, where water leaves the roof, membranes terminate and the edge meets a gutter, fascia or wall finish. Flat roof drainage edge trim gives this junction a defined route for run-off while creating a neat, durable external edge.

For a small domestic extension or a larger commercial roof, the trim should be considered as part of the roof build-up rather than an afterthought. Its profile, material, dimensions and relationship with the waterproofing system all affect the finished result. A well-selected edge detail protects exposed roof edges from repeated wetting and helps prevent water tracking back onto the fascia or beneath the roof covering.

What does flat roof drainage edge trim do?

Drainage edge trim is fitted at the eaves or low edge of a flat or low-pitched roof. Its primary purpose is to direct water away from the roof edge and into the intended rainwater system. Depending on the design, it may form a drip, project over a gutter, or finish the exposed edge of a roof covering.

The detail matters because water does not always fall vertically from the roof. Surface tension can draw it back along the underside of an edge, particularly during steady rainfall. A formed drip helps break that path, encouraging water to fall clear into the gutter rather than run across adjacent components.

The trim also creates a more controlled termination for the roof covering. Rather than leaving a membrane edge or substrate exposed to weather, movement and impact, the perimeter is finished with a purpose-made metal profile. This is particularly valuable where a clean architectural line is required along visible elevations.

Start with the drainage route, not the trim shape

Before selecting a profile, establish where water is intended to go once it reaches the roof edge. The eaves trim, gutter position and roof covering need to work together. A trim that looks suitable in isolation can still cause problems if its drip is set too far back from the gutter, or if the gutter cannot receive the run-off cleanly.

Check the roof falls and identify the low points. On some roofs, water discharges along a full eaves length. On others, drainage is directed towards outlets, hoppers or internal drainage points. The perimeter trim must suit the actual drainage layout, not simply follow a standard detail from another roof.

The line of the fascia is equally relevant. A deep fascia, projecting gutter brackets or a parapet return can alter the available space below the roof edge. Taking site dimensions before ordering is the sensible approach, particularly on refurbishment work where existing construction is rarely perfectly uniform.

Consider the roof covering system

Different roof coverings have different termination methods, fixing requirements and compatibility considerations. The edge trim should be selected in accordance with the covering manufacturer’s detailing guidance, including any specified laps, tapes, sealants, fixings or edge restraint arrangements.

This is not a detail to improvise on site. A trim may need to sit beneath, over or alongside part of the roof covering depending on the system. It must not create a sharp edge that could damage the waterproof layer, nor should it obstruct the designed path of water.

Where a roof is being renewed, inspect the condition of the deck edge, fascia backing and gutter line before specifying replacement trims. Correcting an uneven or decayed substrate first gives the new metalwork a stable fixing line and improves the appearance of the completed edge.

Choosing the right profile and material

There is no single flat roof drainage edge trim for every project. The right choice depends on the roof build-up, the required projection, the rainwater arrangement and the appearance of the elevation. A simple drip profile may suit a roof discharging into a conventional gutter, while a deeper or more developed edge detail may be needed where the roof finish, fascia and gutter must align precisely.

Aluminium is widely used for external roofline and trim applications because it provides a crisp formed finish and resists corrosion in normal external use. It is also available with coated finishes where the trim needs to coordinate with fascia, soffit, copings, window surrounds or other elements of the building envelope. The selected finish should suit the project environment and be protected from unnecessary site damage during installation.

Material thickness and profile geometry should be appropriate for the intended application. Long, lightly supported lengths can show distortion if handled carelessly or fixed unevenly. For prominent roof edges, a well-proportioned profile with consistent fixing support will produce a straighter visual line than a thin, unsupported sheet folded on site.

For projects with unusual eaves depths, existing gutter positions or non-standard roof build-ups, made-to-measure folded profiles can avoid awkward packing pieces and excessive sealant work. Metal Profiles Ltd can fabricate project-specific aluminium profiles where standard dimensions do not suit the site condition. A clear drawing with dimensions, material preference, finish requirement and intended roof detail will support accurate quoting and manufacture.

Appearance is part of the detail

The drainage edge is often visible from ground level. It should sit comfortably with the fascia and gutter rather than looking like an added strip of metal. Match the profile depth to the roof edge, consider the shadow line created by the drip, and decide whether the trim should blend into the roofline or provide a contrasting architectural feature.

Colour matching can be useful where several exterior components meet. However, finish selection should not be made on colour alone. The profile still needs the correct projection, fixing arrangement and interface with the waterproofing system.

Installation points that deserve attention

Accurate setting out is central to a tidy edge detail. Establish a straight datum line before fixing the first length, especially where the fascia or deck edge has minor irregularities. If the initial trim is out of line, each subsequent length will make the problem more visible.

Trims should be stored flat, lifted carefully and kept clear of abrasive debris. Protective film, where supplied, should be removed at the appropriate stage so it does not become difficult to strip after prolonged exposure. Cut edges and site-formed corners need particular care to avoid scratches, rough burrs and misaligned joints.

Allow for thermal movement in long metal lengths. The exact fixing method, spacing, joint arrangement and allowance for movement should follow the relevant product and roof-system guidance. Over-restraining a long trim can lead to noise, visible stress or movement at joints as temperatures change.

Corners, stop ends and junctions with walls are the areas most likely to reveal poor planning. They need to maintain the drainage route while providing a neat finish. A folded corner may be suitable in some details, whereas separate formed corner pieces or carefully lapped sections may be more practical in others. The choice depends on the profile shape and the roof covering system.

Avoid relying on sealant as the main means of directing water. Sealant can be appropriate within a designed joint, but the profile itself should shed water by shape and position. A good detail uses laps, drips and falls to manage water first.

Inspection and maintenance after installation

Although metal edge trims are low-maintenance, they should not be ignored. Seasonal inspections are useful, particularly after storms, roof works or gutter cleaning. Look for blocked gutters, trapped leaves, loose fixings, damaged coatings and any debris that bridges the drip between roof and gutter.

Pay attention to joints and corners. Staining below an eaves line may indicate overflowing gutters, water tracking or a local defect in the roof covering. The source should be identified rather than simply cleaning the visible mark.

If another trade works near the roof edge, protect the trim from ladders, scaffolding components and cutting debris. Small scratches may be cosmetic, but deeper damage or distortion can affect both appearance and water shedding. Prompt repair or replacement of damaged sections is generally simpler than allowing a defect to worsen.

Frequently asked questions

A flat roof edge performs best when the drainage detail, waterproofing, fascia and gutter are treated as one coordinated assembly. Taking time to define the junction before fabrication will result in a cleaner roofline and a more dependable route for water long after the scaffold has come down.
