Roof Penetration Flashing Guide for UK Roofs

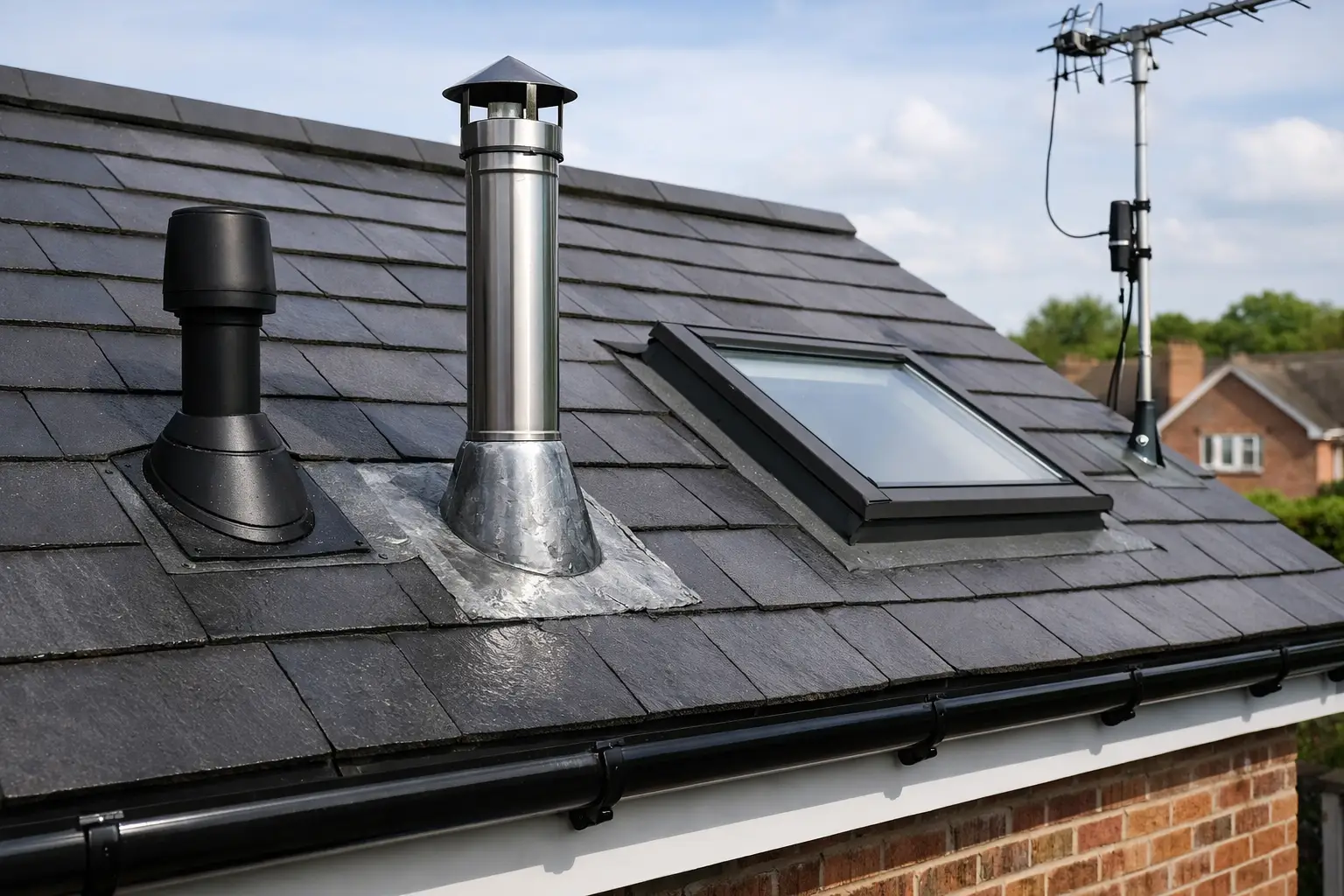

A roof penetration flashing guide is useful wherever a pipe, vent, flue, cable route, rooflight or service duct passes through the roof covering. These openings are necessary, but they interrupt the surface intended to shed water. The detail around each penetration must direct rainwater back on to the roof finish while allowing the roof assembly and the penetration itself to move as conditions change.

A sound result depends on more than applying sealant around an opening. It requires the right flashing type, a suitable material, correct laps and careful coordination between the roofer, services contractor and any fabricator supplying formed metalwork.

What roof penetration flashing needs to do

Flashing is the formed or flexible weathering material that closes the junction between a roof covering and an element passing through it. Its job is to manage water at a vulnerable change in level or material. On a pitched roof, the upper edge must receive water from above and turn it around the penetration. On a flat roof, the detail must work with the membrane system, insulation build-up and any upstand arrangement.

The exact detail depends on the roof construction. A small round vent pipe through a tiled roof needs a different solution from a rectangular duct through a standing-seam roof or a rooflight on a membrane roof. Treating every opening as a generic hole is a common cause of poorly performing roof details.

The flashing should also accommodate reasonable movement. Metal roof sheets, pipes and ducts can expand and contract at different rates, while timber roof structures may move with moisture and temperature. A detail that is fixed too rigidly can split, distort or open at its laps over time.

Start with the penetration and roof type

Before selecting a flashing, establish what is passing through the roof, where it sits and how the roof is constructed. The opening should be positioned with the roof covering layout in mind. On pitched roofs, this may mean coordinating with tile courses, slate dimensions or sheet pan widths rather than cutting materials to suit a late service alteration.

For a circular pipe or vent, a purpose-designed pipe flashing or proprietary roof penetration system may be appropriate. The flashing needs to suit both the pipe diameter and the roof pitch or profile. It must also be compatible with the roof covering, whether that is slate, tile, corrugated sheet, trapezoidal sheet or another system.

Rectangular penetrations usually need more considered formed flashings. These can include an apron at the lower edge, side flashings and a back gutter or back tray at the top. The back detail is particularly significant because it intercepts water travelling down the roof above the penetration. Where a large penetration spans several roof courses, water may need to be diverted around it rather than simply relying on a narrow upstand.

On flat roofs, an upstand is commonly formed around the opening so the roof membrane can be dressed and terminated in line with the membrane manufacturer’s system. The penetration should not be detailed in isolation from the roof finish. The membrane, insulation, deck, vapour control layer and any metal capping all need a coordinated junction.

Choosing a suitable flashing material

Material selection should be based on the roof system, surrounding metals, exposure and the form required. Aluminium is widely used for roof trims and formed flashings because it is lightweight, corrosion-resistant in normal exterior use and well suited to fabrication into clean, consistent profiles. It can be particularly useful where a project calls for made-to-measure folded components and a colour-matched architectural finish.

However, suitability is not simply a question of choosing aluminium for every detail. Consider contact between dissimilar materials, including roof sheets, fixings, lead-based components and treated timber. Moisture held between incompatible metals can create corrosion risks. Separating layers, compatible fixings and the roof system supplier’s detailing guidance should be considered before installation.

The thickness and fold arrangement should be selected for the purpose of the flashing. A simple cover trim has different demands from a wide back tray intended to bridge roof battens or support a long lap. Larger fabricated pieces may also require allowances for handling and support so they arrive on site in a form that can be installed accurately.

For project-specific junctions, Metal Profiles can produce made-to-measure metal flashings and folded profiles to supplied dimensions. A clear drawing showing roof pitch, opening size, fixing zones, laps and intended material is far more useful for quoting and fabrication than a description alone.

Roof penetration flashing guide: key detailing principles

Good flashing details rely on water-shedding geometry. Water should flow over laps rather than towards an exposed edge. The upper components generally sit beneath the roof covering above, while the lower apron discharges over the covering below. Side flashings should be arranged so water cannot track behind them.

Avoid relying on sealant as the primary weathering measure. Sealant can be appropriate as part of a designed junction, particularly at controlled interfaces or closures, but it is not a substitute for correctly lapped and formed flashing. Sealant ages, and surfaces may move or become contaminated during installation.

A penetration also needs enough clearance to allow the flashing system to be fitted without forcing adjacent roof materials out of position. Crowding a pipe beside a valley, ridge, parapet or rooflight makes water management more difficult. Where possible, leave space for the flashing return, side laps and safe access for future inspection.

At the top of a rectangular penetration, provide a route for water to pass around the obstruction. A back tray, cricket or diverter may be used depending on the roof type and scale of the opening. The chosen detail must suit the roof covering and be set out by a competent designer or roofing specialist. A flat, poorly supported metal piece behind an upstand can hold debris and restrict water flow.

Installation checks before the roof is closed

Roof penetrations are easiest to correct before surrounding finishes are fully installed. Check the opening size, penetration location and roof pitch against the drawing or selected flashing system. Confirm that the pipe, duct or other service is secure and that its final position is known. Flashing a temporary position often leads to unnecessary alterations later.

The roof covering around the opening should be cut neatly, with enough room for the flashing to perform without excessive gaps. On tiled and slate roofs, the roofing material should continue to shed water naturally around the penetration. Broken units, unsupported cuts and overly wide gaps can compromise the detail even where the flashing itself is correctly made.

Fixings matter. Use a fixing method appropriate to the flashing material and substrate, and avoid piercing areas intended to carry water wherever possible. If a fabricated flashing includes fixing flanges, these should be positioned where they can be covered by subsequent layers or otherwise protected by the roof system detail.

Do not overlook internal layers. Roof underlays, membranes and vapour control layers may require their own sealed or dressed connection around a penetration. The required approach varies by construction, so it should be coordinated with the relevant roof and membrane system guidance rather than assumed from the external flashing alone.

Common problems to avoid

The most frequent issue is a flashing that is too small for the roof profile or penetration. This can leave insufficient upstand height, inadequate side coverage or a lower apron that does not sit properly on the roof finish. A flashing should be selected or fabricated for the actual profile, not a nominal description of the roof.

Another problem is poor sequencing. If a duct, flue or pipe is installed after the roof covering has been completed, contractors may be forced into a patched detail with awkward cuts and limited laps. Early coordination usually produces a cleaner, more durable result.

Mixed-metal contact, incompatible sealants and unsuitable fasteners can also shorten the service life of a detail. Check the materials already present on the roof and specify separation or compatible components where necessary. For coloured aluminium flashings, take care during handling and installation to avoid scratching the finished face.

Inspection and maintenance

Roof penetrations should be included in routine roof inspections, especially after severe weather or works by other trades. Look for lifted edges, cracked sealant where sealant forms part of the detail, loose fixings, damage from access, debris collecting above the flashing and visible gaps around pipes or ducts.

Clear leaves, moss and loose debris from back trays and drainage paths without damaging the roof covering. If the penetration is connected to plant or services that may later be replaced, ensure maintenance teams understand that the roof flashing must not be cut away or disturbed without a suitable replacement detail.

A cleanly formed penetration flashing is a small part of the roof area, yet it has a major role in protecting the construction below. Plan it early, match it to the roof system and inspect it as part of normal roof care.
